Front load angle sensor (704F): Connection
COLUMN INTEGRATION MODULE - CONNECTION DESCRIPTION

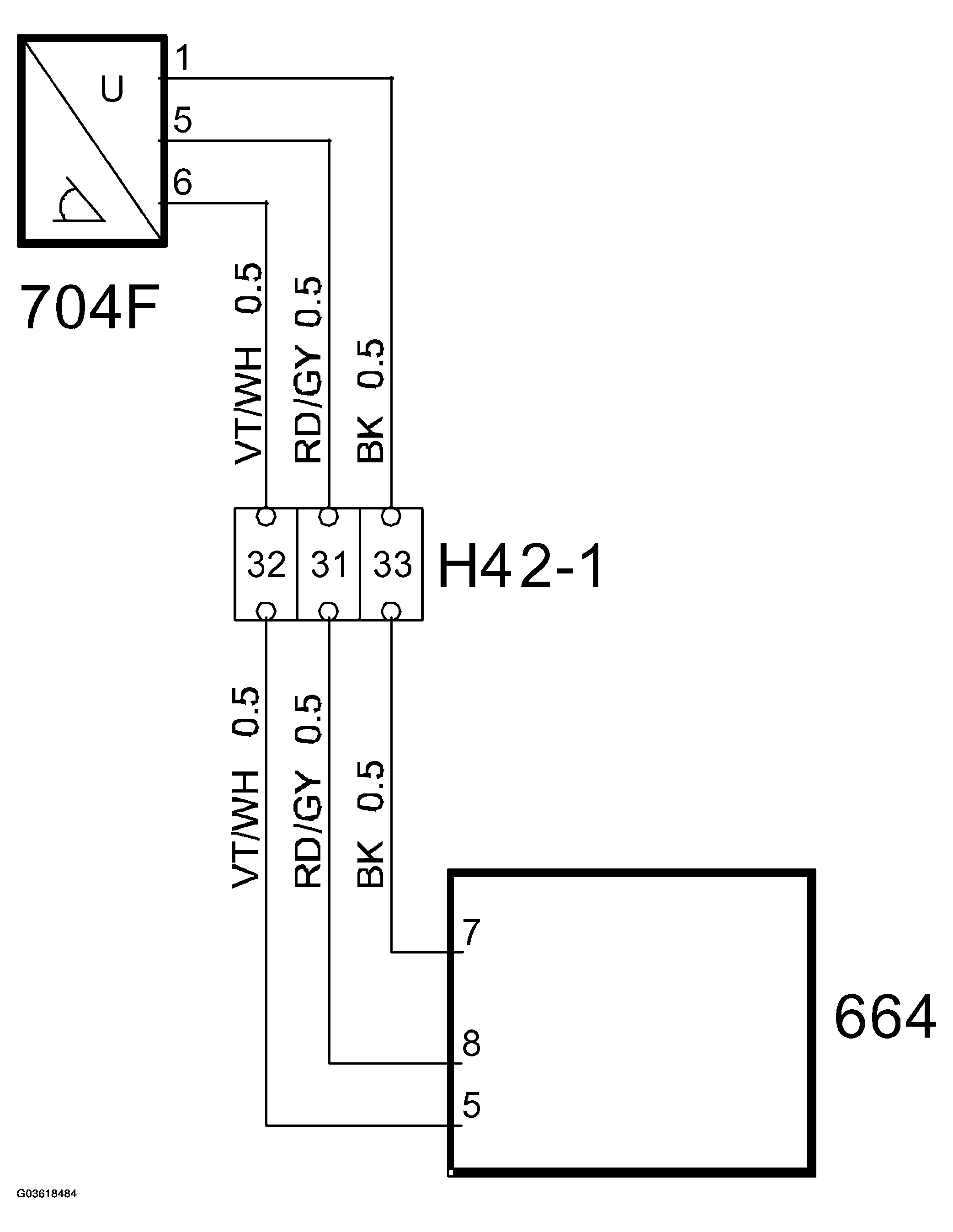

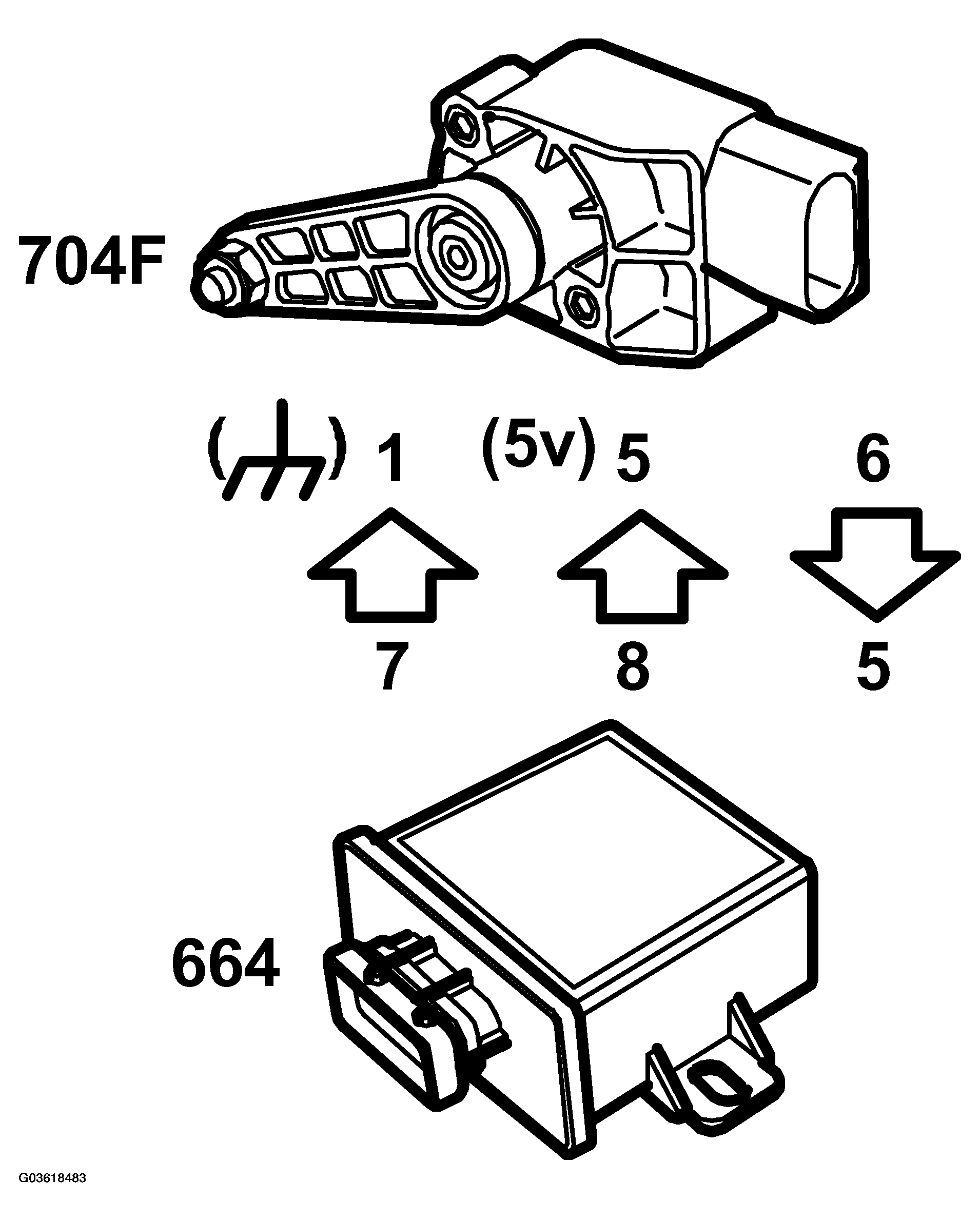

| Pin No. | Signal type | Description |
|---|---|---|
| 1 | Ground | Ground from AHL control module pin 7 |
| 5 | Power supply | Power supply 5 V, from AHL control module pin 8 |
| 6 | Signal | PWM signal with information on sensor status to AHL control module pin 5 |
