Main relay, engine control system (229)

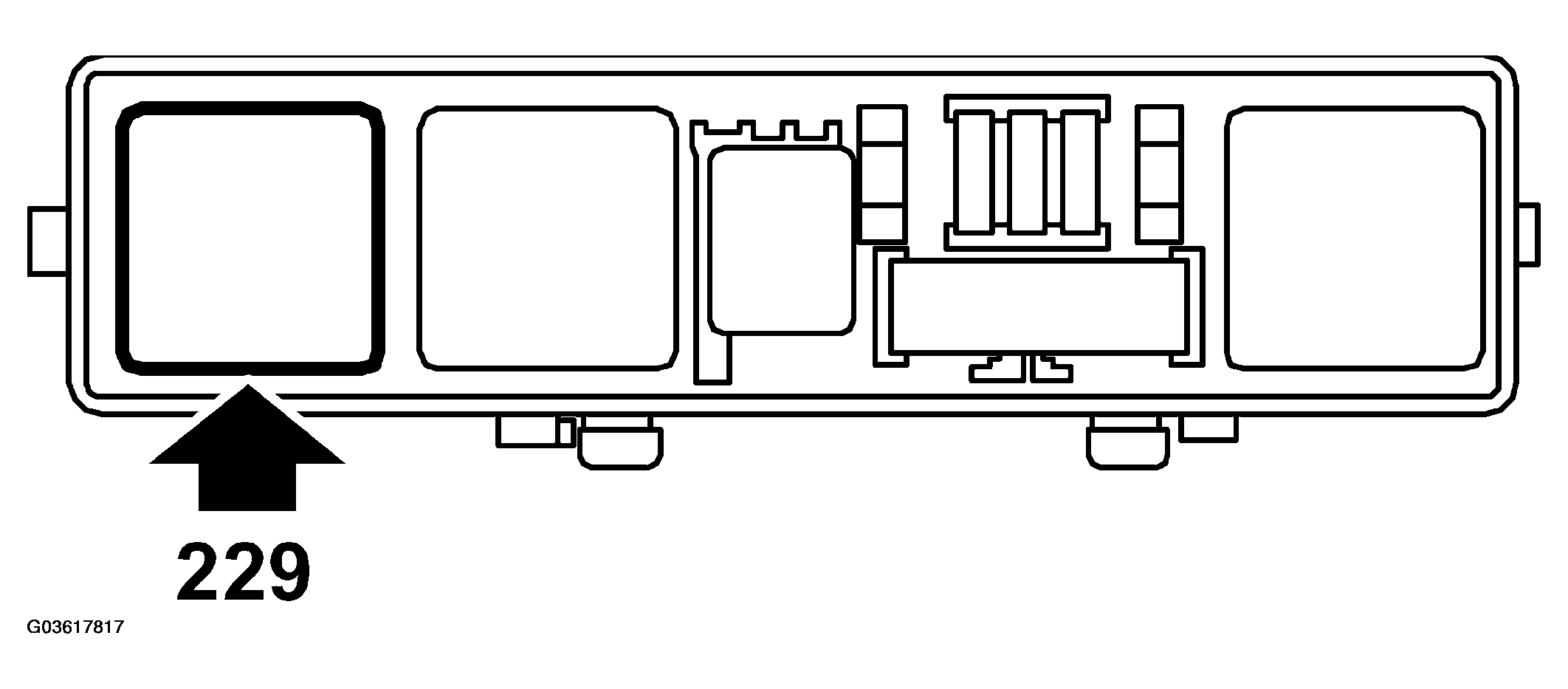

Fig 1: Identifying Engine Control System Main Relay
G03617817Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - ENGINE CONTROL SYSTEM MAIN RELAY

Resistance, winding at 20° C (68° F) Ohm 85+/- 5
Nominal control voltage V 12
Nominal current A 30
