Intake air sensor (688), T8: Notes

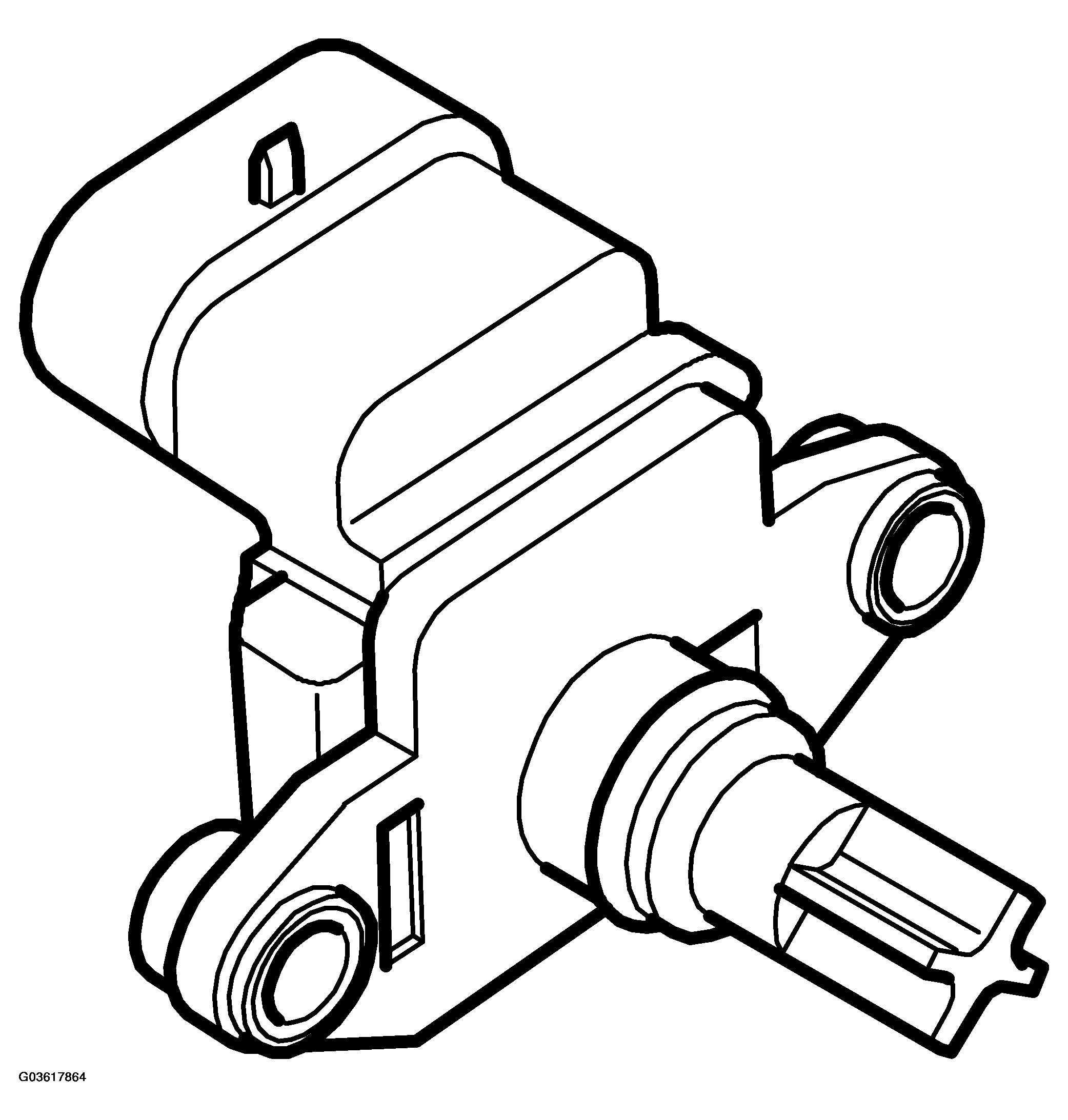

Fig 1: Identifying Intake Air Sensor (T8)
G03617864Courtesy of SAAB-SCANIA OF AMERICA, INC.

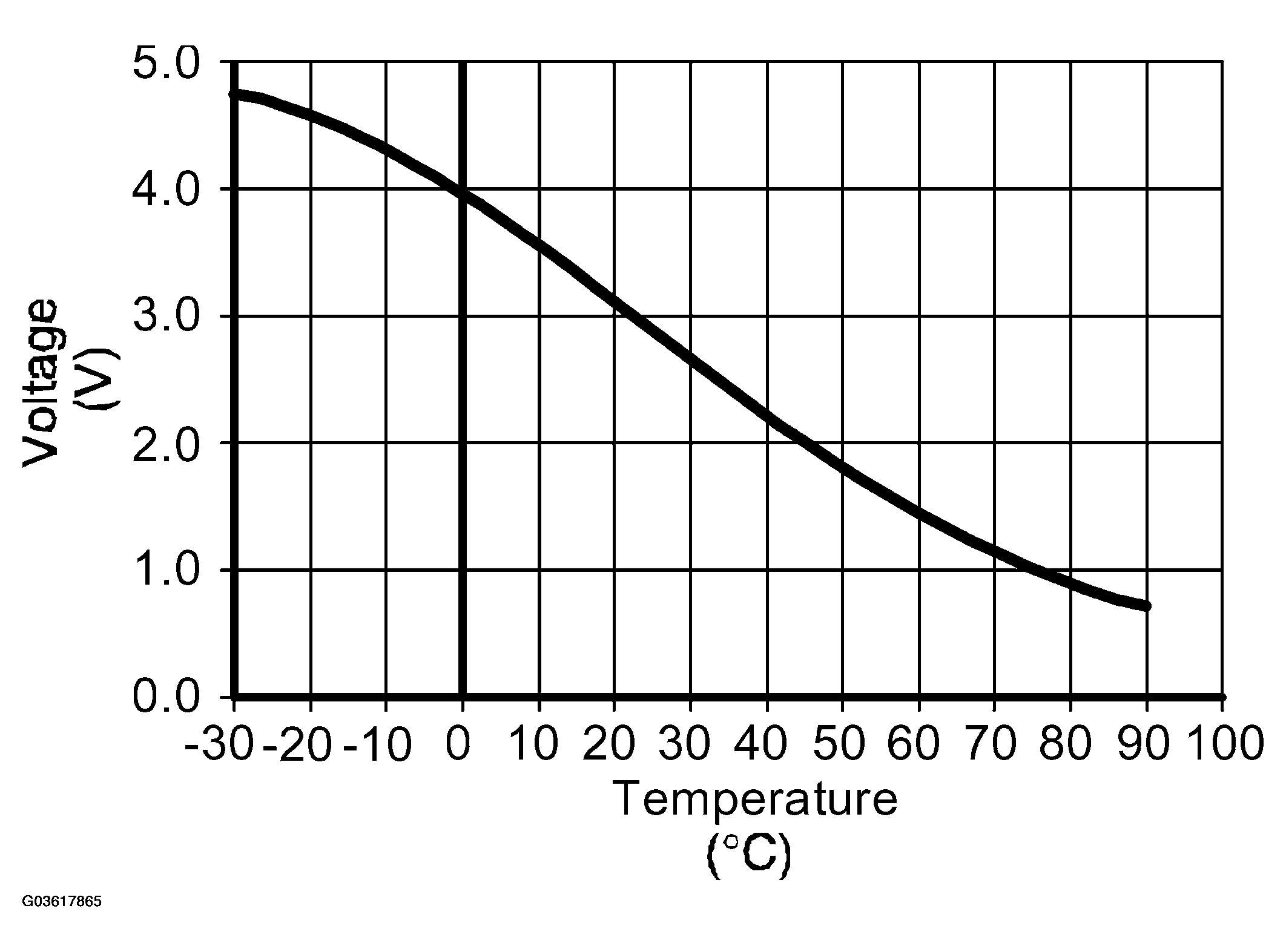

Fig 2: Intake Air Sensor (T8) Temperature - Resistance Graph
G03617865Courtesy of SAAB-SCANIA OF AMERICA, INC.

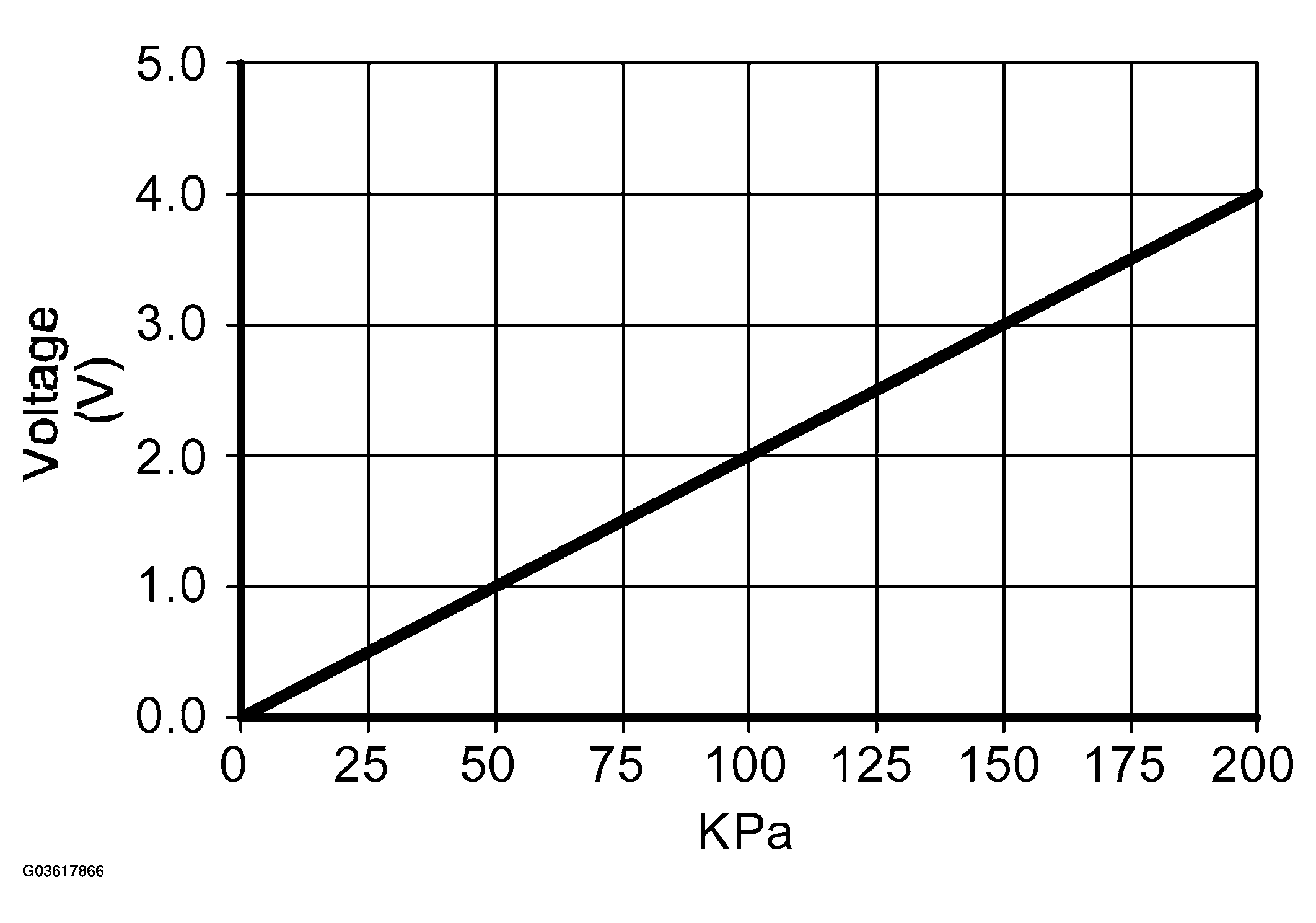

Fig 3: Intake Air Sensor (T8) Voltage - Pressure Graph
G03617866Courtesy of SAAB-SCANIA OF AMERICA, INC.
