Main Components, External Lighting

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

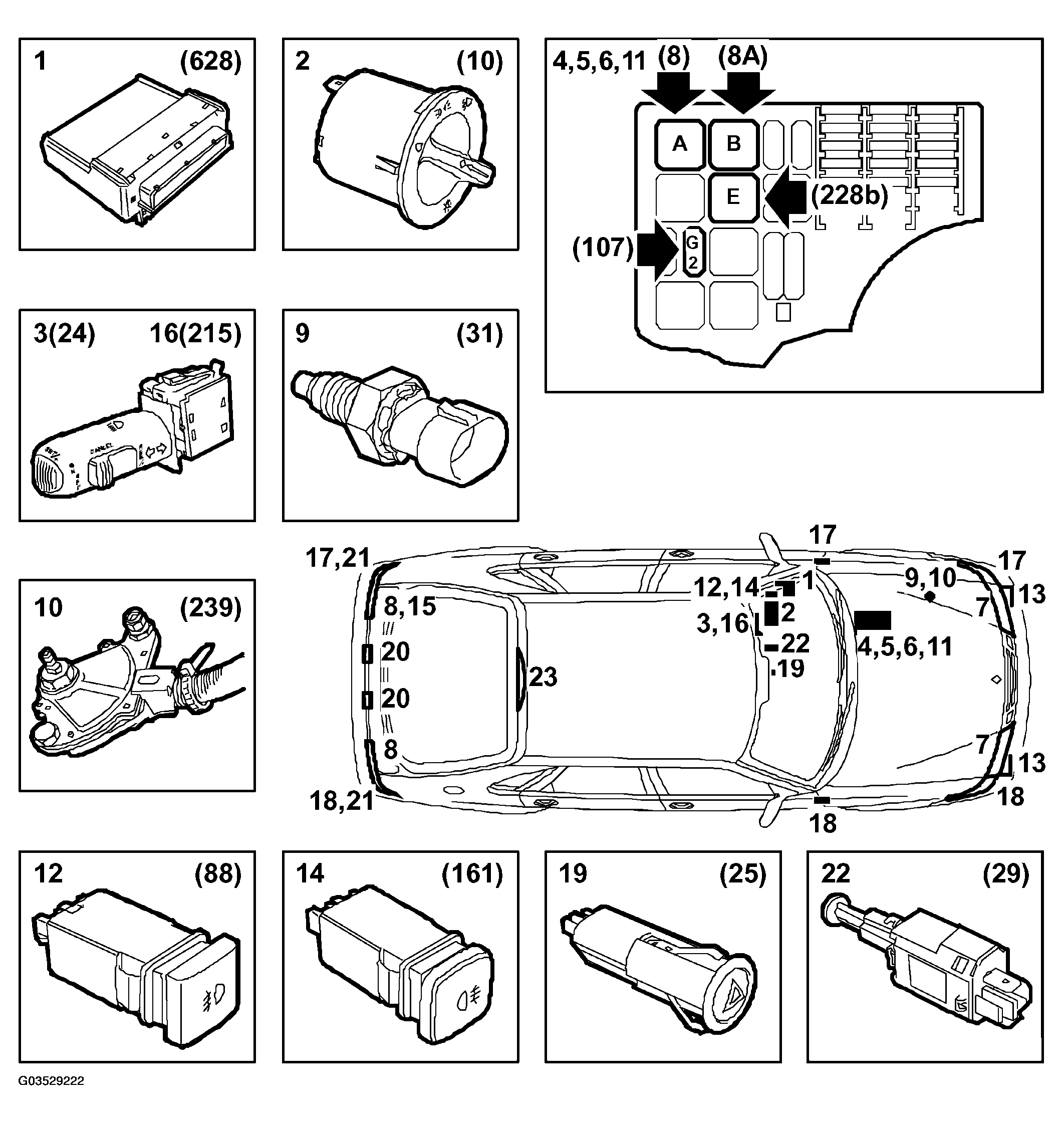

Fig 1: Identifying External Lighting Main Components
G03529222Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, DICE (628)
  2. Light switch (10)
  3. Dipswitch (24)
  4. Main beam relay (8a)
  5. Dipped beam relay (8)
  6. Filament monitor, headlamps (228b)
  7. Main/dipped beam lamp (11,12)
  8. Reversing light (32)
  9. Reversing light switch, manual (31)
  10. Selector lever position switch, automatic transmission (239)
  11. Fog light relay (107)
  12. Front fog light switch (88)
  13. Front fog light (85)
  14. Rear fog light switch (161)
  15. Rear fog light (33)
  16. Dipswitch (215)
  17. LH direction indicator (27L)
  18. RH direction indicator (27R)
  19. Hazard flasher switch (25)
  20. Number plate lighting (15)
  21. Brake lights (30)
  22. Brake light switch, (29)
