Interior Lighting

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

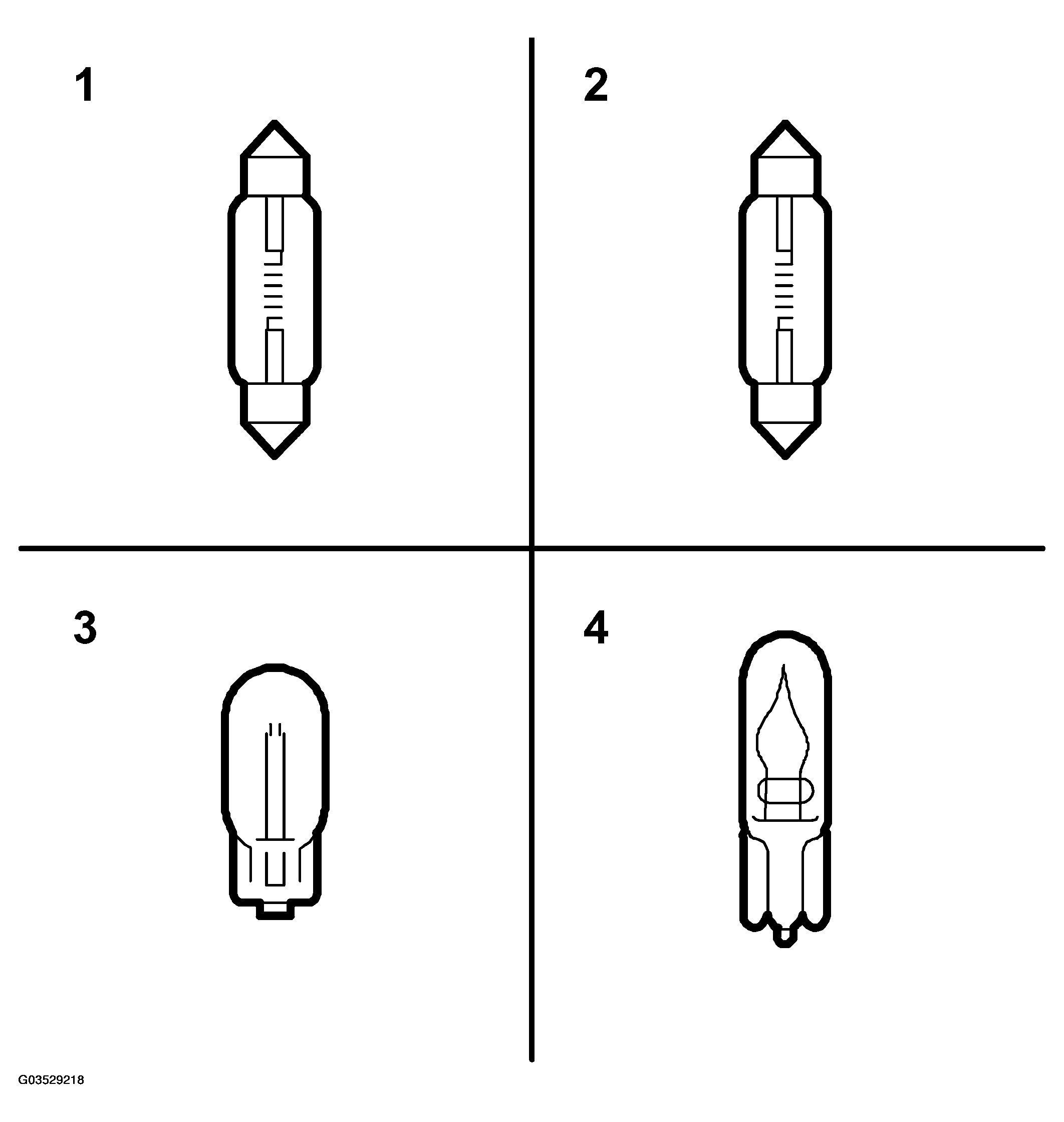

Fig 1: Identifying Interior Lights
G03529218Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - INTERIOR LIGHTING

Rating (W) Fitting Position
Glove box 10 SV 8.5-8 1
Roof lighting Luggage compartment lighting 10 SV 8.5-8 2
Lighting for switch/ashtray
Seat-belt warning lamp 1.2 W2x4.6d 4
Ignition switch lighting

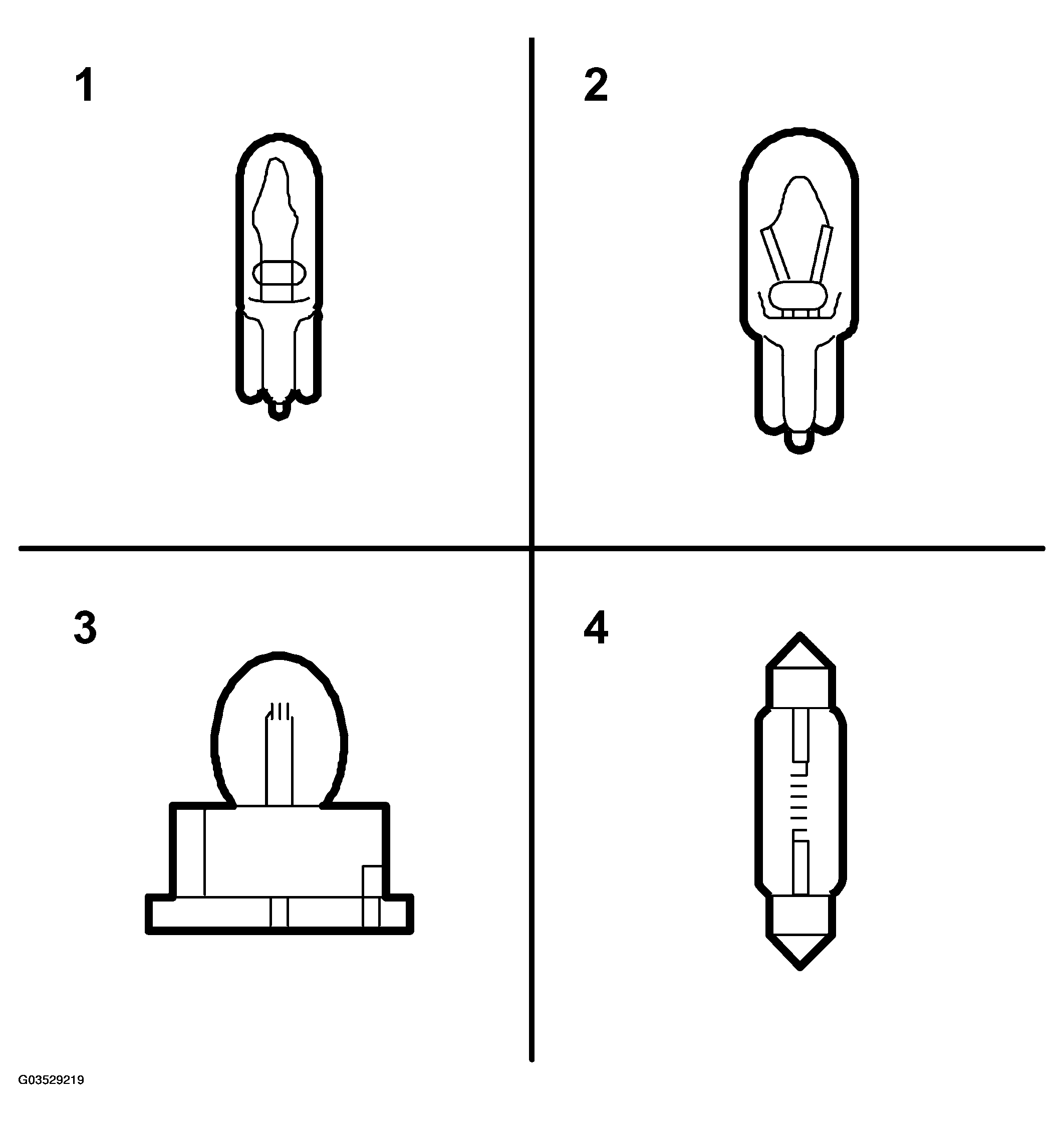

Fig 2: Identifying Interior Lights
G03529219Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - INTERIOR LIGHTING

  Rating (W) Fitting Position
Lighting for heating and ventilation controls ACC 2.0 W2x4.6d W2.1 x 9.5d 3
