Exterior Lighting
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

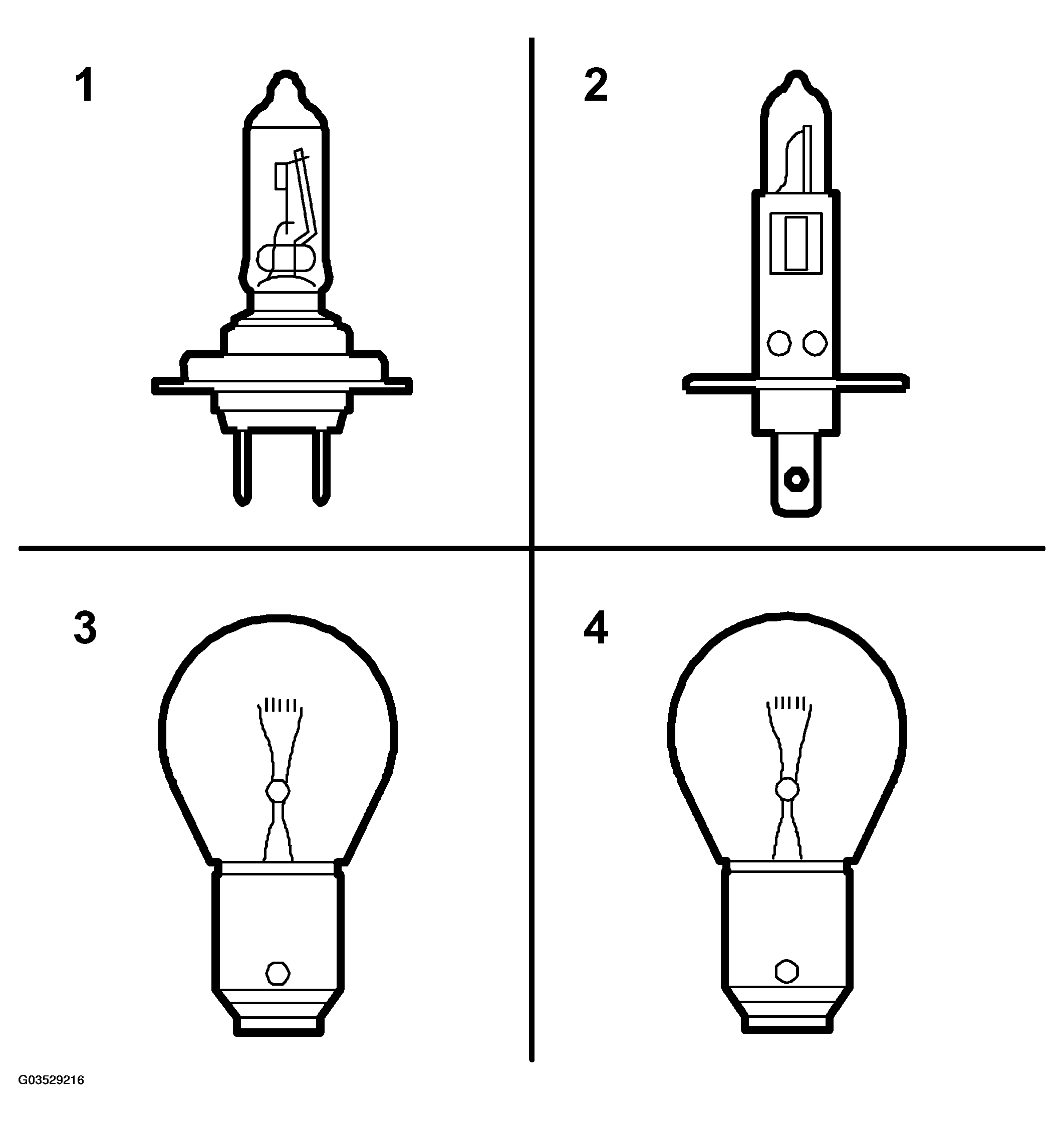

TECHNICAL DATA - EXTERIOR LIGHTING
| Rating (W) | Fitting | Position | |
|---|---|---|---|
| Headlamps (main and dipped beams) | 60/55 | H4 | 1 |
| Front fog lights | 55 | H1 P14.5s | 2 |
| Reversing lights Rear fog light | 21 | BA 15s | 3 |
| Front direction indicators (amber lamp) Rear direction indicators (amber lamp) |
21 | BAU 15s (amber) 4 |

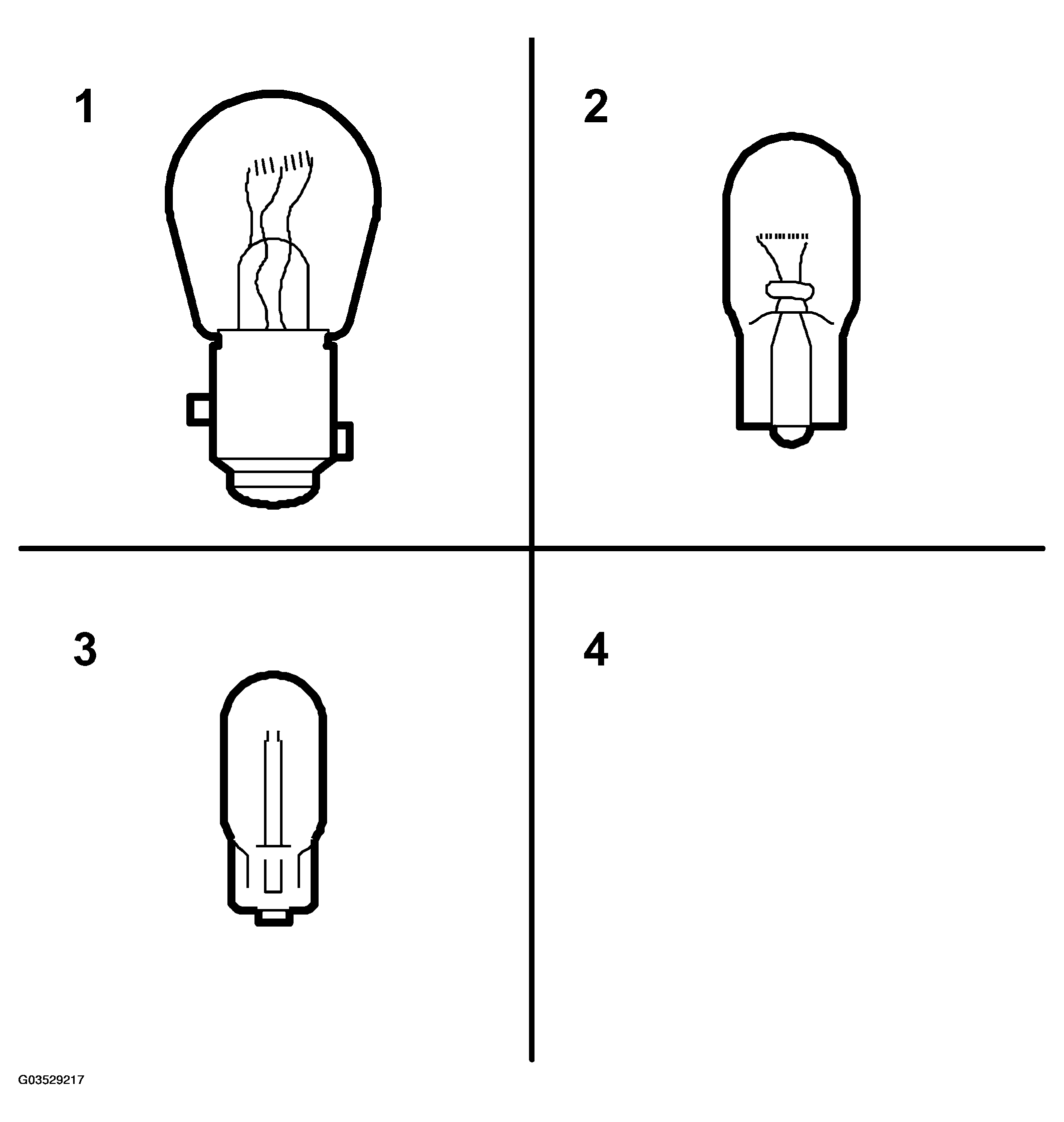

TECHNICAL DATA - EXTERIOR LIGHTING
| Rating (W) | Fitting | Position | |
|---|---|---|---|
| Brake lights/parking lights | 21/5 | BAY 15d | 1 |
| Parking lights, front/side direction indicators, number plate lighting | 5 | W2.4 x 9.5d | 2 |
| High-level brake light (Convertible) | 5 | - | - |
| High-level brake light | 4 | LED | - |
