To Remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lamp cover from the front roof console.

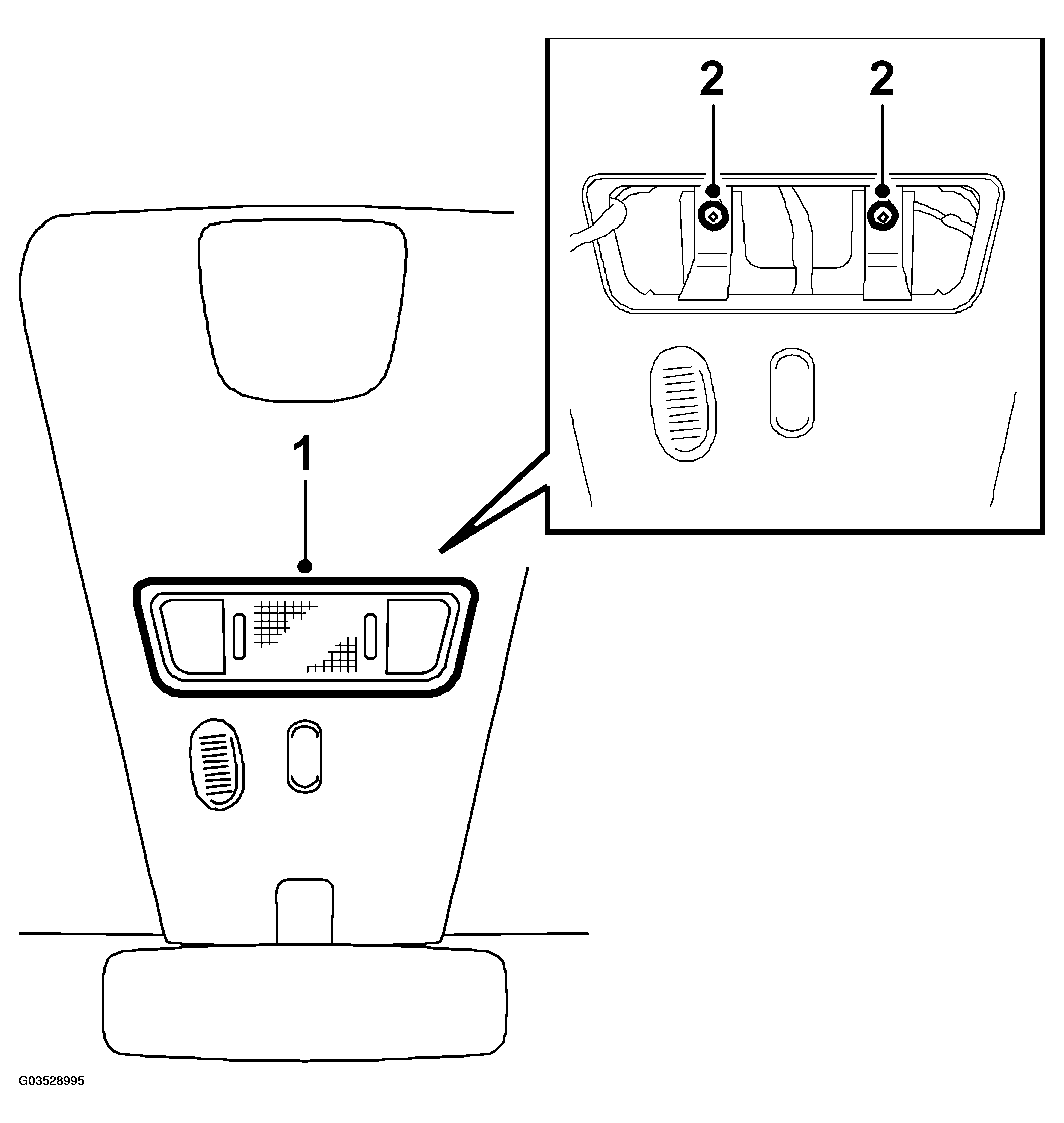

    2. Fig 1: Illustration For Steps 1-2
    G03528995Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the screws holding the roof console.
  3. Remove the roof console and let it hand on the leads.

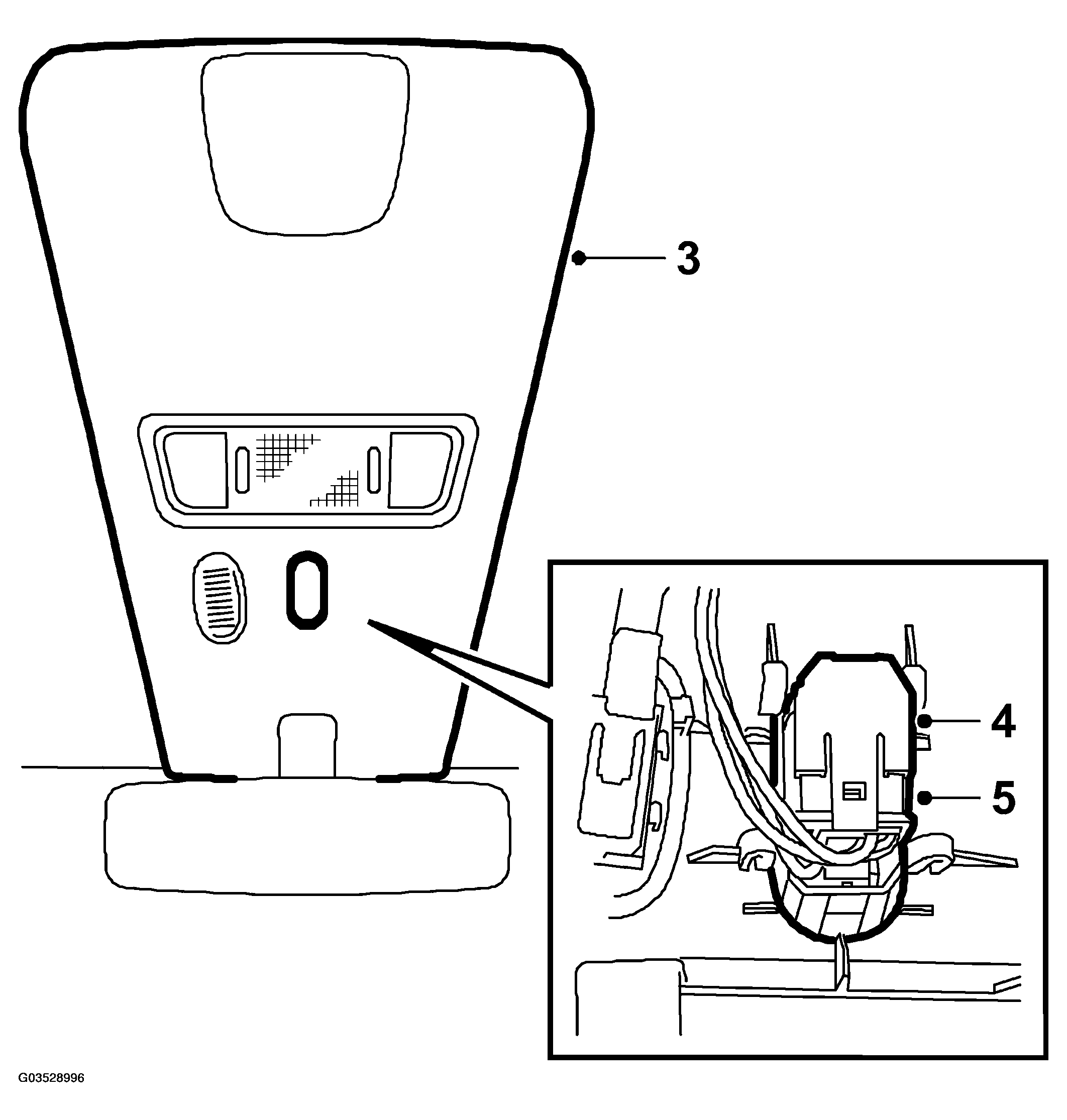

    Fig 2: Illustration For Steps 3-5
    G03528996Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Loosen the switch from its holder.
  5. Unplug the connector from the switch.
