To Remove/To Fit

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

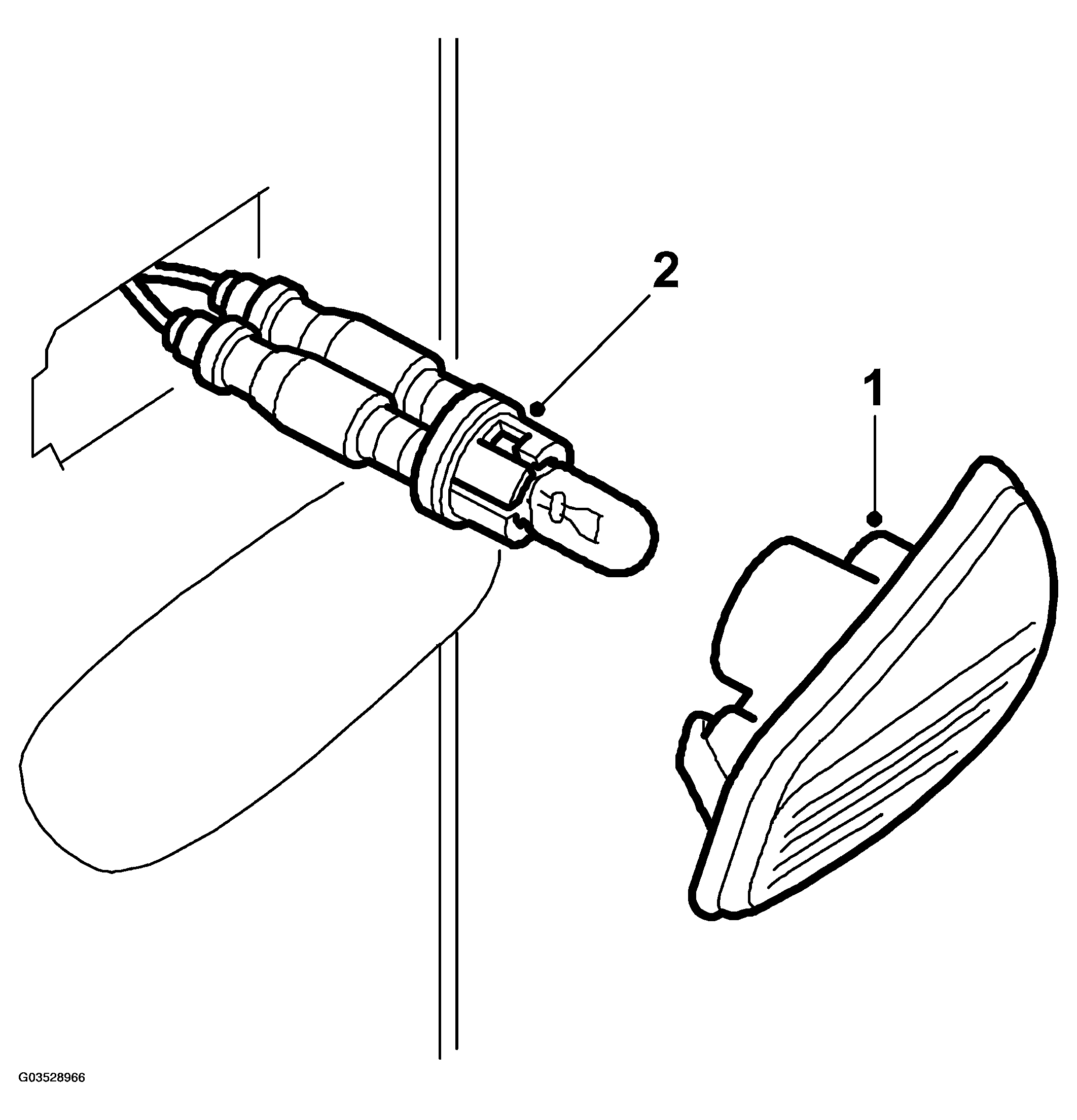

Fig 1: Illustration For Steps 1-2
G03528966Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press the lamp housing forward slightly and release its back edge.
  2. Pull out the lamp housing.
  3. Fit the lamp housing, first the front edge and then press in the back edge.
