To Remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille.

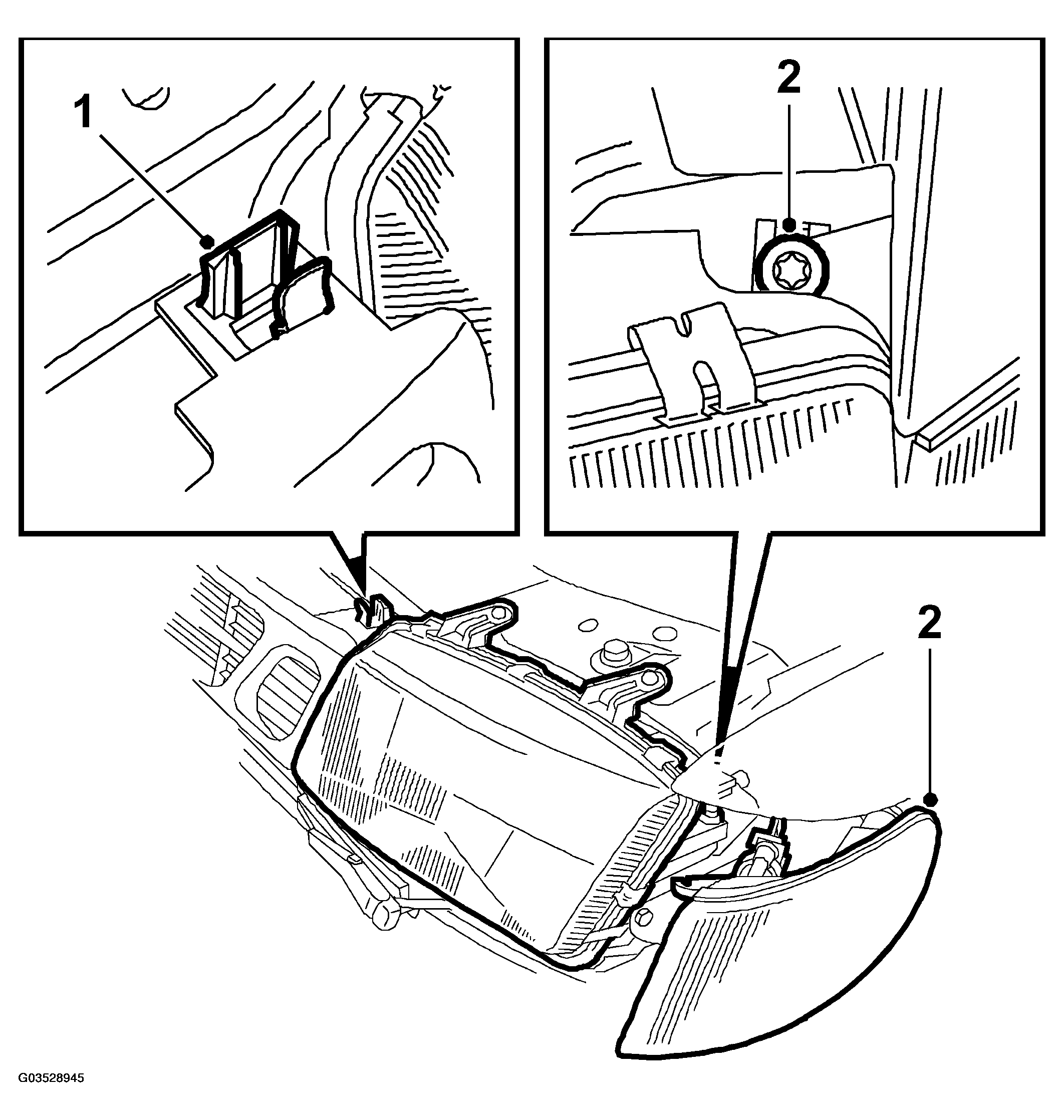

    2. Fig 1: Illustration For Steps 1-2
    G03528945Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the direction indicator screw, unplug the connector and remove the direction indicator.
  3. Remove the 3 screws holding the headlamp.

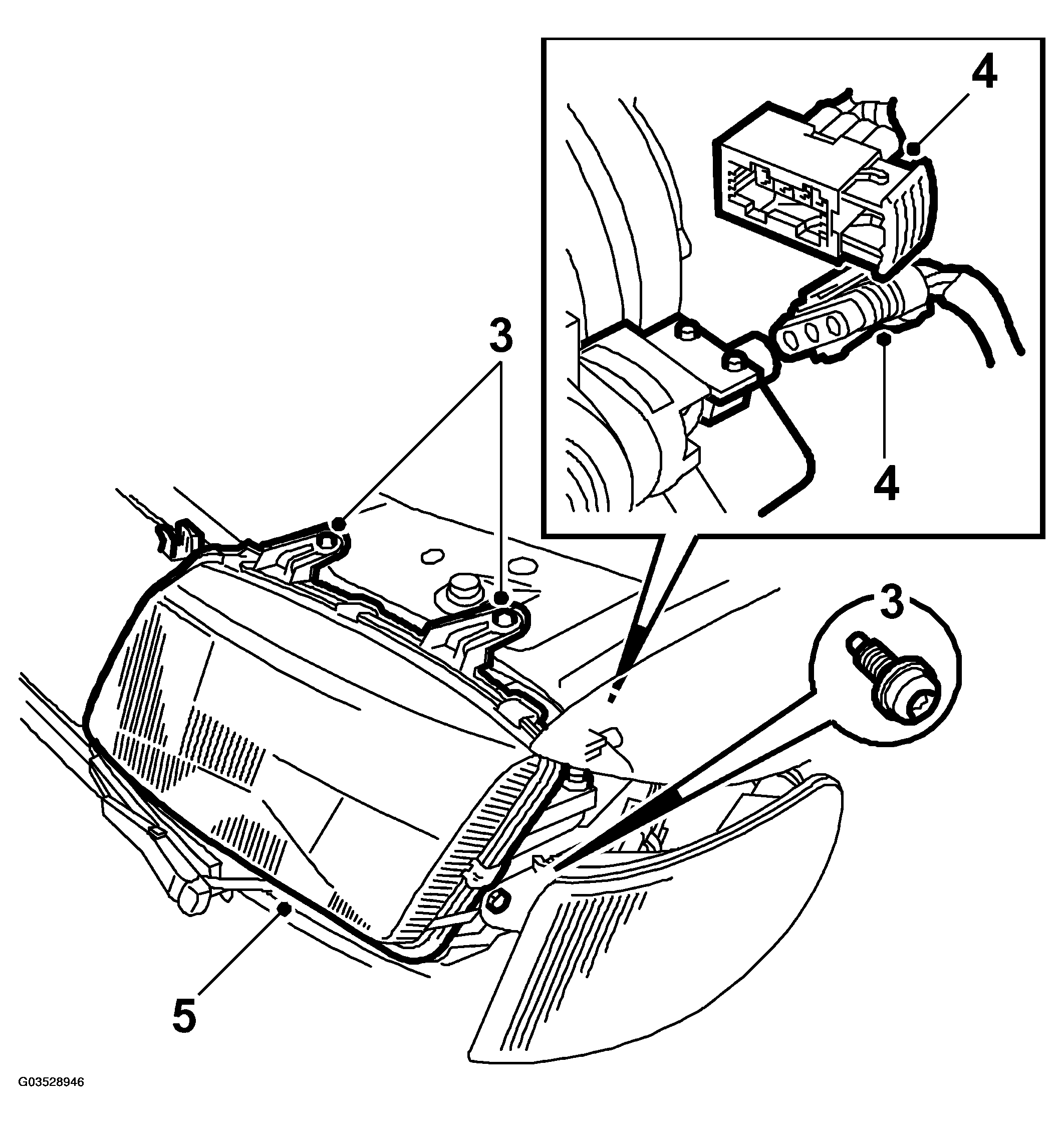

    Fig 2: Illustration For Steps 3-5
    G03528946Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lift out the headlamp slightly so that the headlamp connector can be unplugged.
  5. Lift out the headlamp.
