To Fit

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the headlamp correctly.
  2. Fit the three screws holding the headlamp.

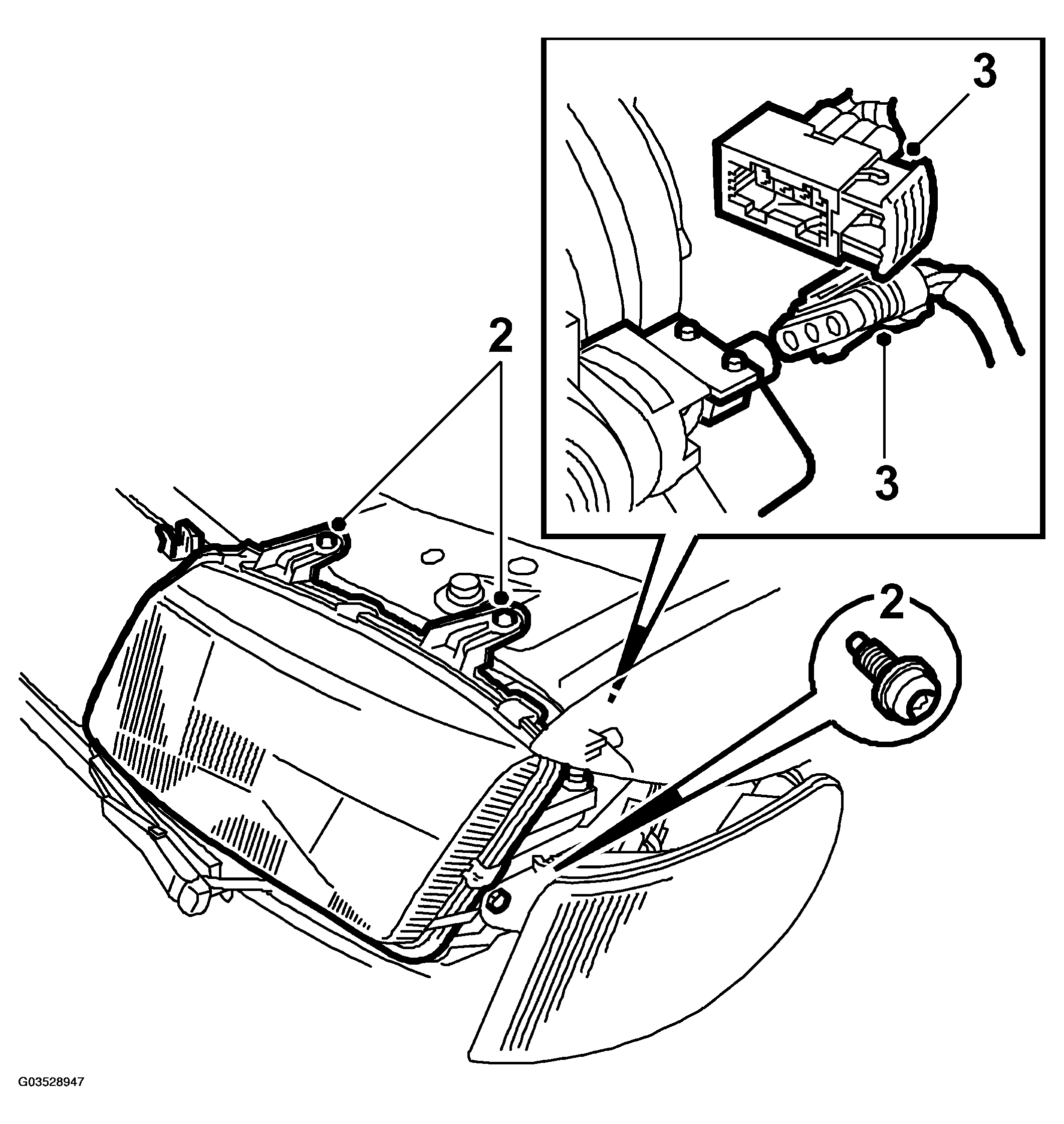

    3. Fig 1: Illustration For Steps 2-3
    G03528947Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Plug the connector on to the headlamp.
  4. Fit the direction indicator, see DIRECTION INDICATORS, FRONT  .

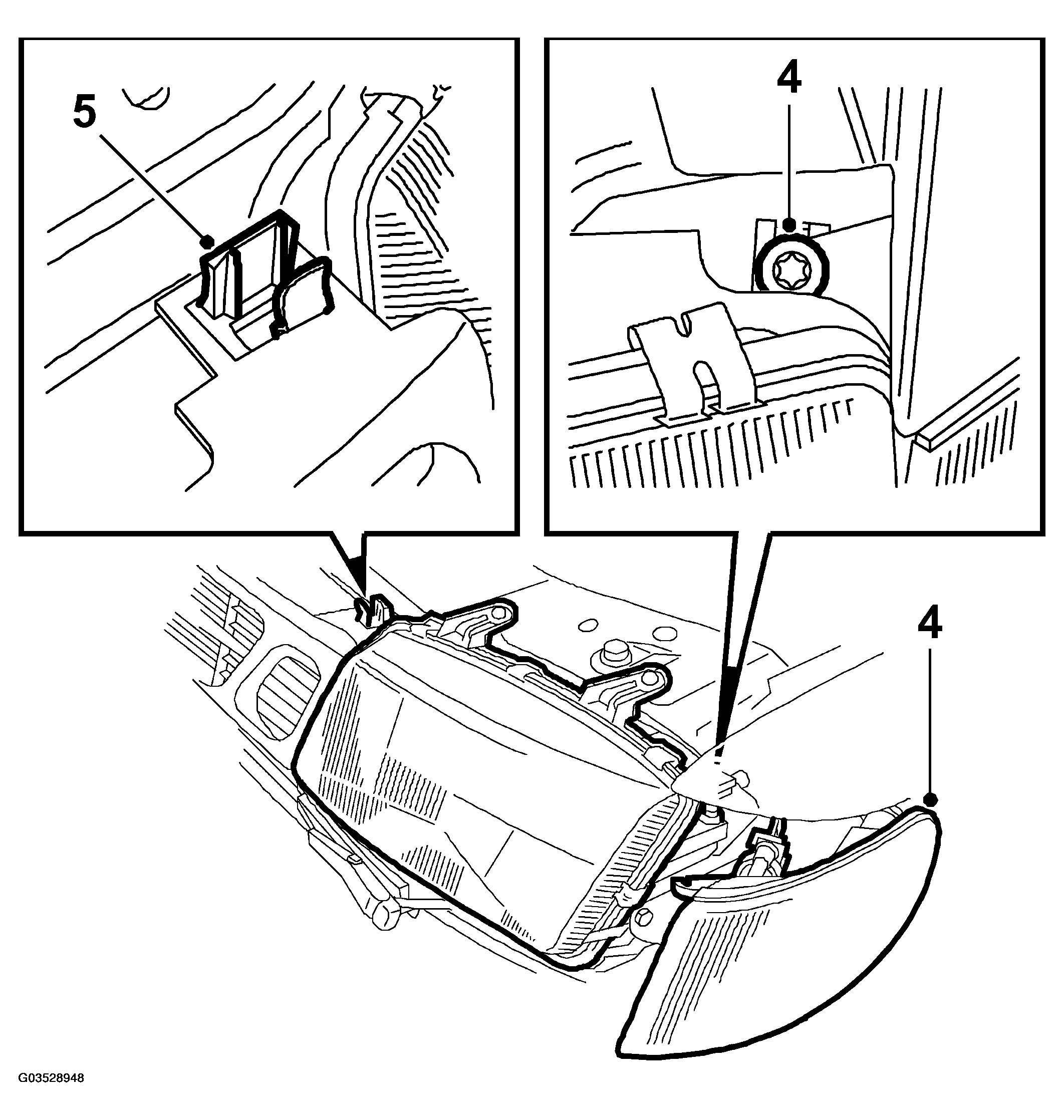

    Fig 2: Illustration For Steps 4-5
    G03528948Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the grille.
  6. Adjust the headlamp, see LIGHT ADJUSTMENT, HEADLAMPS  .
