To Remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the strip above the rear window (inside the car).

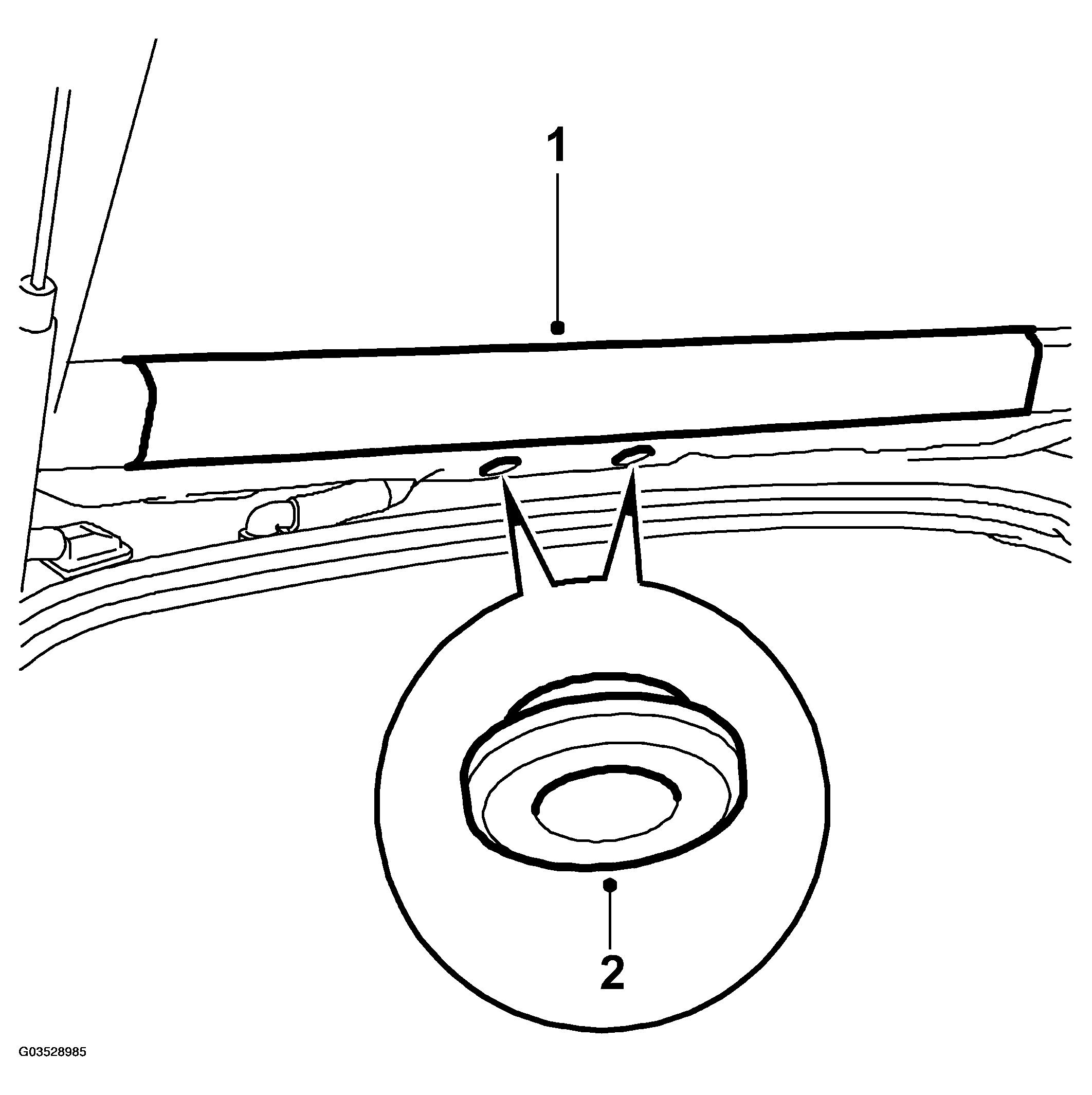

    2. Fig 1: illustration For Steps 1-2
    G03528985Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the two rubber plugs.
  3. Unscrew the nuts holding the brake light.

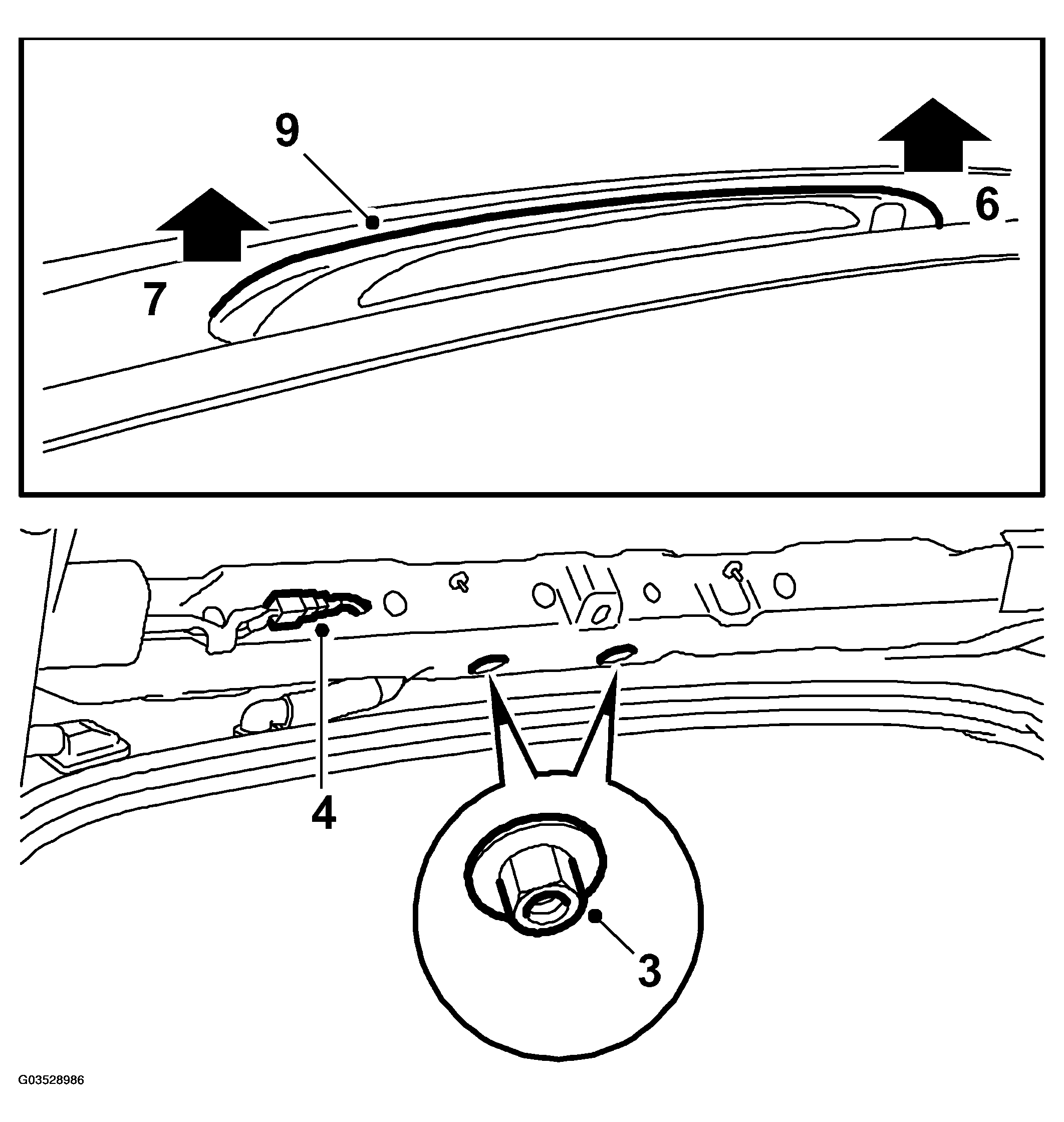

    Fig 2: Illustration For Steps 3-4, 6-7, 9
    G03528986Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Separate the connector.
  5. Press the cover down.
  6. Use a plastic spatula (or a screwdriver covered with tape) on the right of the rear window washer nozzle and carefully pry up the brake light.
  7. Repeat this operation on the left side.
  8. Lift up the lamp and put out the electrical lead.
  9. Replace the unit.
