To Remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

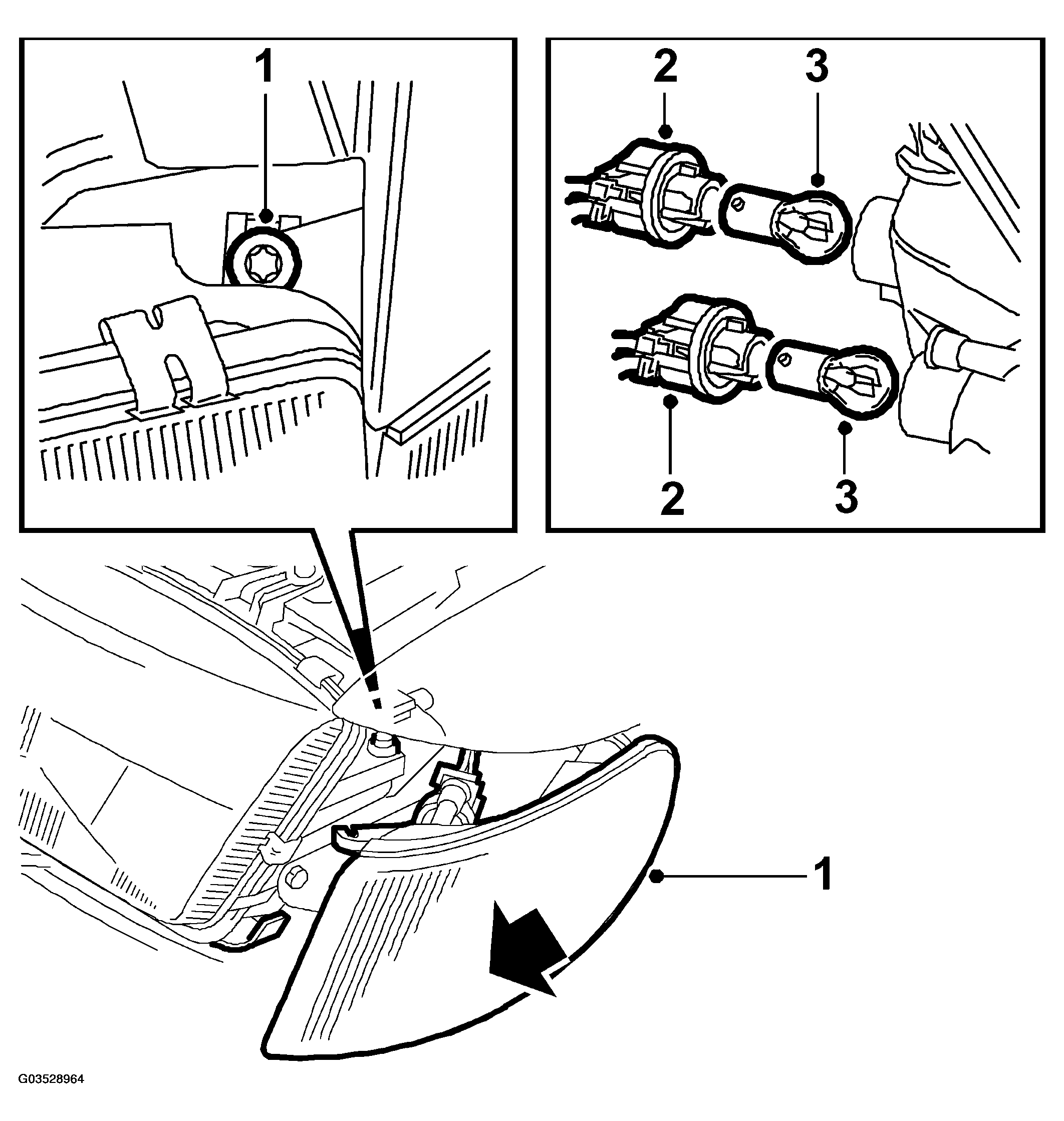

Fig 1: Illustration For Steps 1-3
G03528964Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Unscrew the screw holding the light cluster and pull the lamp forwards.
  2. Turn the lamp holder anti-clockwise and lift it out completely. For some markets there are two lampholders.
  3. Remove the light cluster.
