System Overview, Functions, Cars With Trionic T7 Engine Management System

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

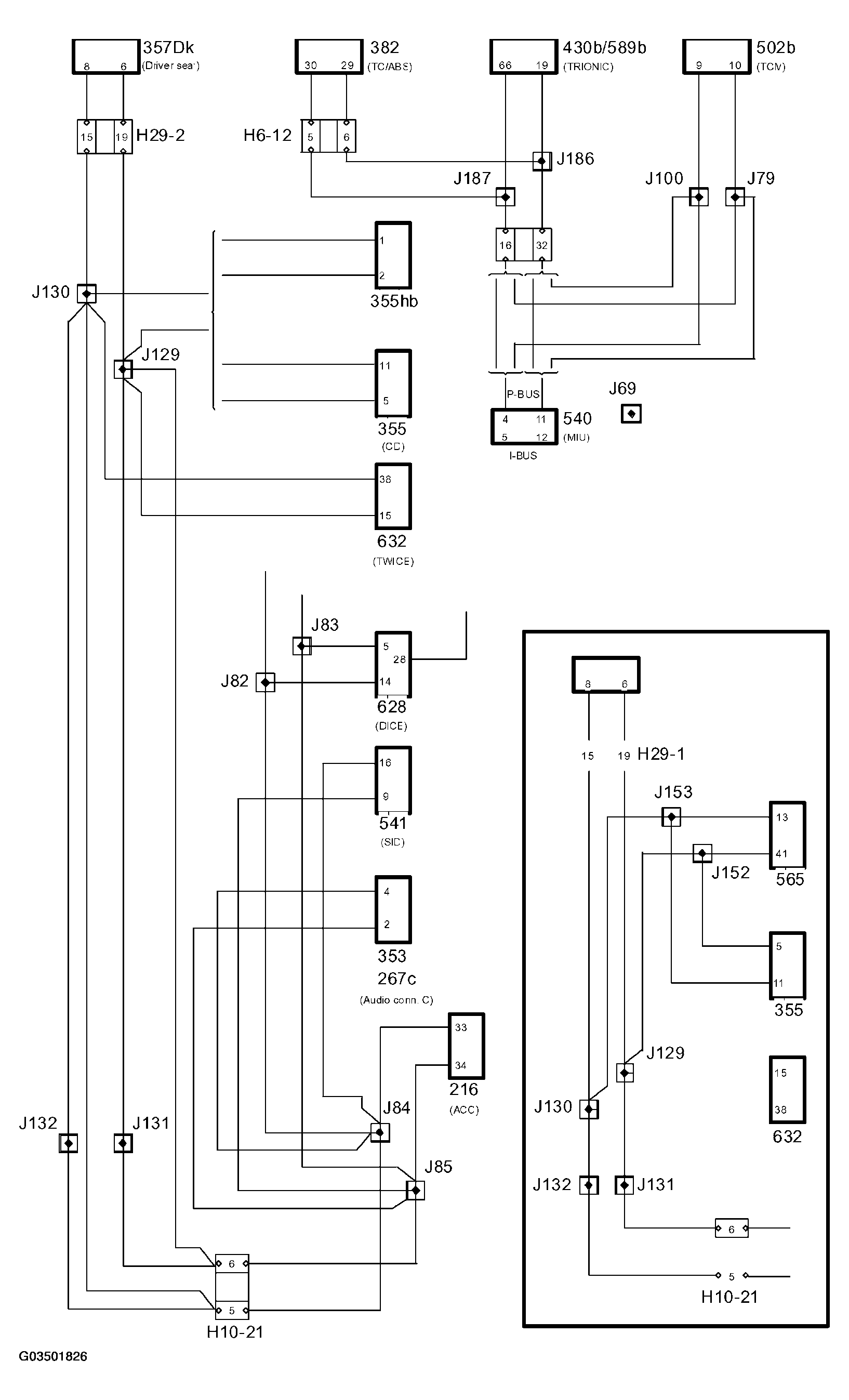

Fig 1: System Overview - Cars With Trionic T7 Engine Management System
G03501826Courtesy of SAAB-SCANIA OF AMERICA, INC.
