Control module, DICE (628)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

LHD

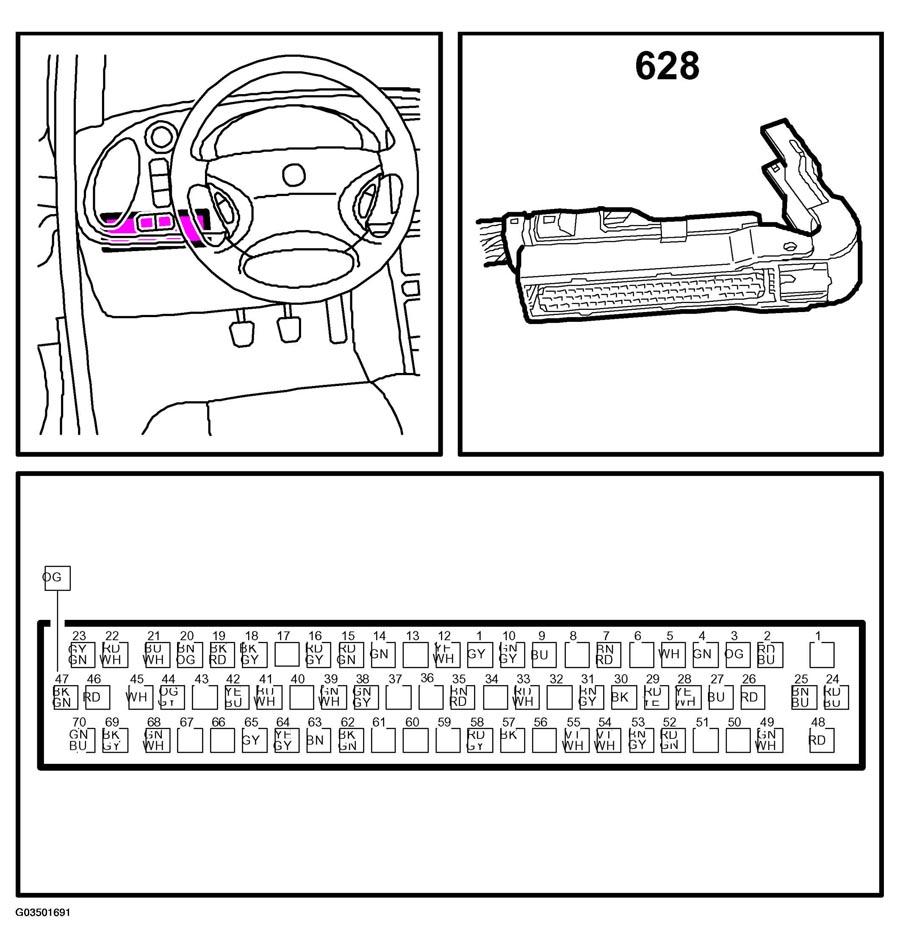

Fig 1: Identifying Control Module, DICE (LHD) - Connector Pinouts
G03501691Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

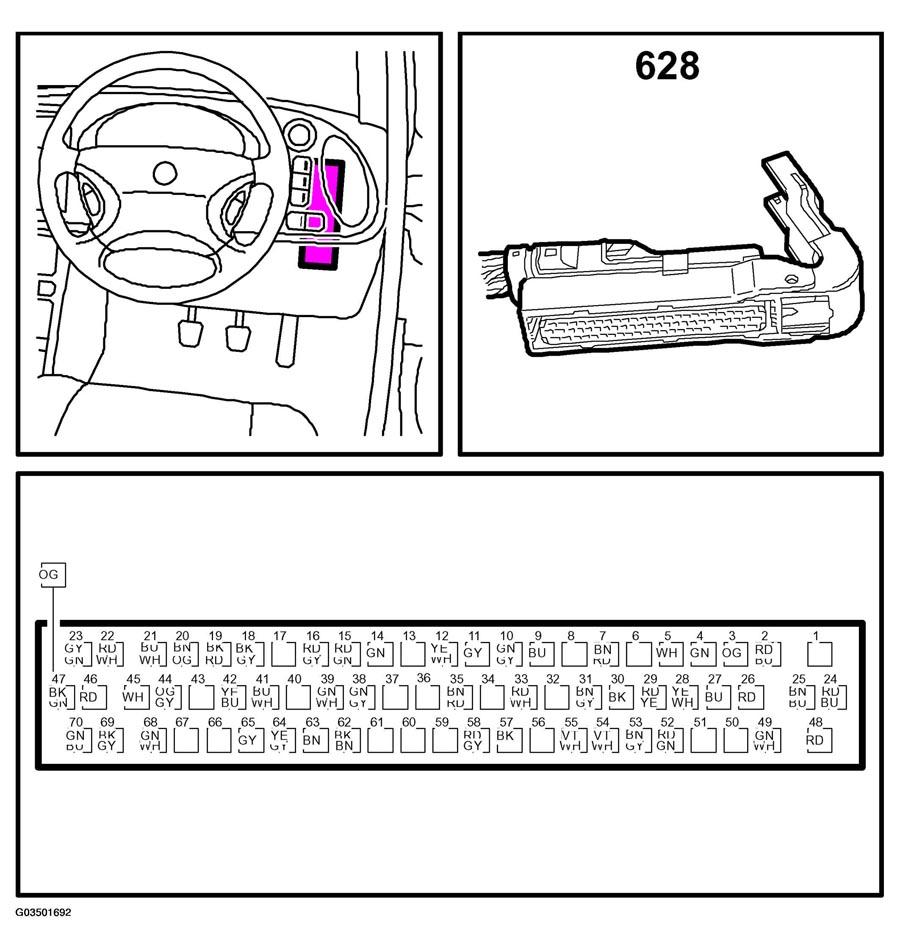

Fig 2: Identifying Control Module, DICE (RHD) - Connector Pinouts
G03501692Courtesy of SAAB-SCANIA OF AMERICA, INC.
