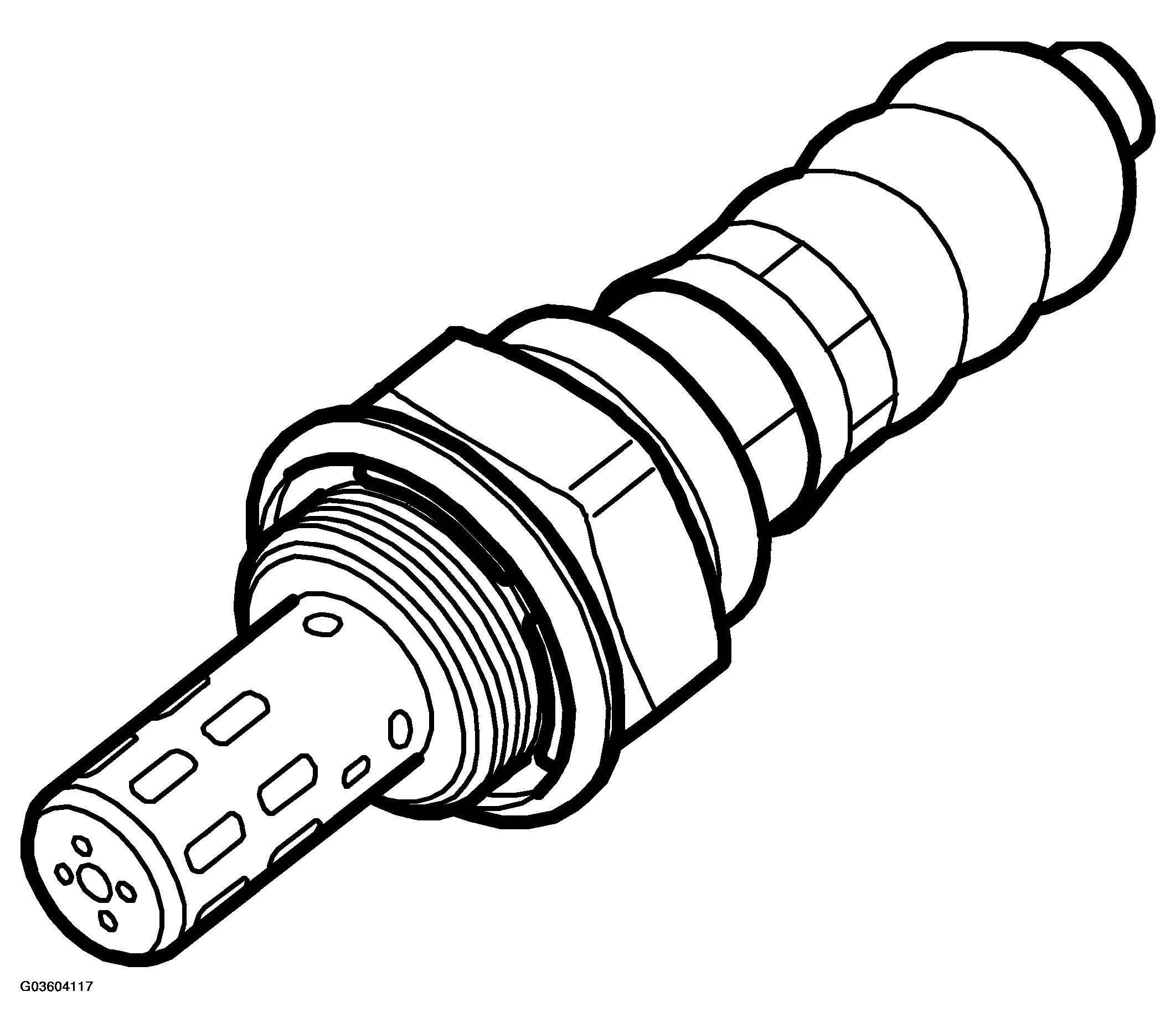

Heated oxygen-sensor, rear (593)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC. HEATED OXYGEN-SENSOR TECHNICAL DATA
| Type |
NTK
With electrical preheating |
| Power, preheating |
approx. 7 W |

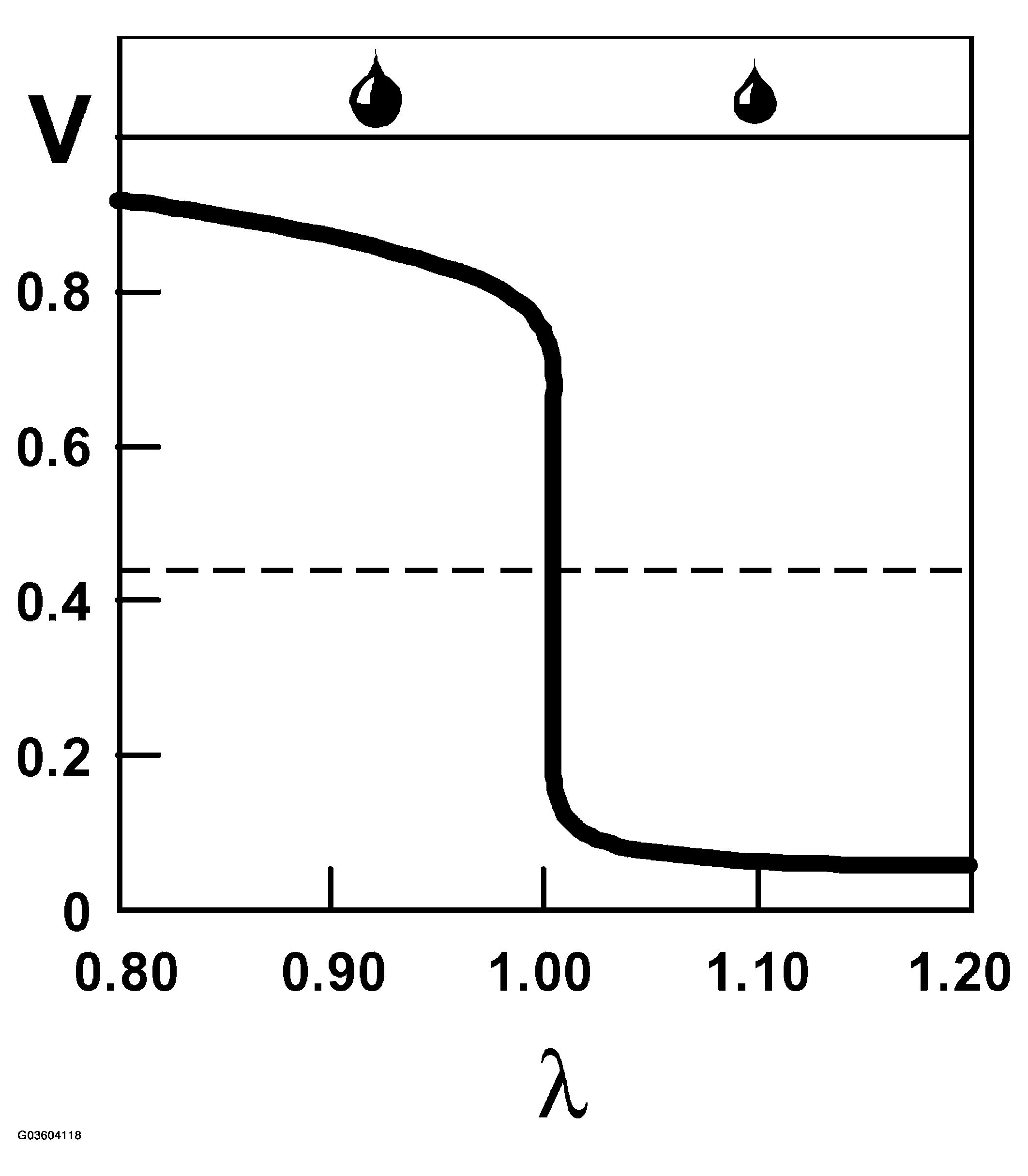

| Control range |
0-1 V |
| Resistance at 20°C (68°F) pins 1-2 |
approx. 13 Ohms |
Pins 3 and 4 are gold plated.
NOTE:
The connector must not be treated with any sort of contact cleaner.
