Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T8 Fuel Control System (Late; 9440) >> Adjustment/Replacement >> Level monitor, engine oil (243) >> To remove

To remove

  1. Remove the oil sump as described in OIL SUMP .
  2. Remove the connector clip.

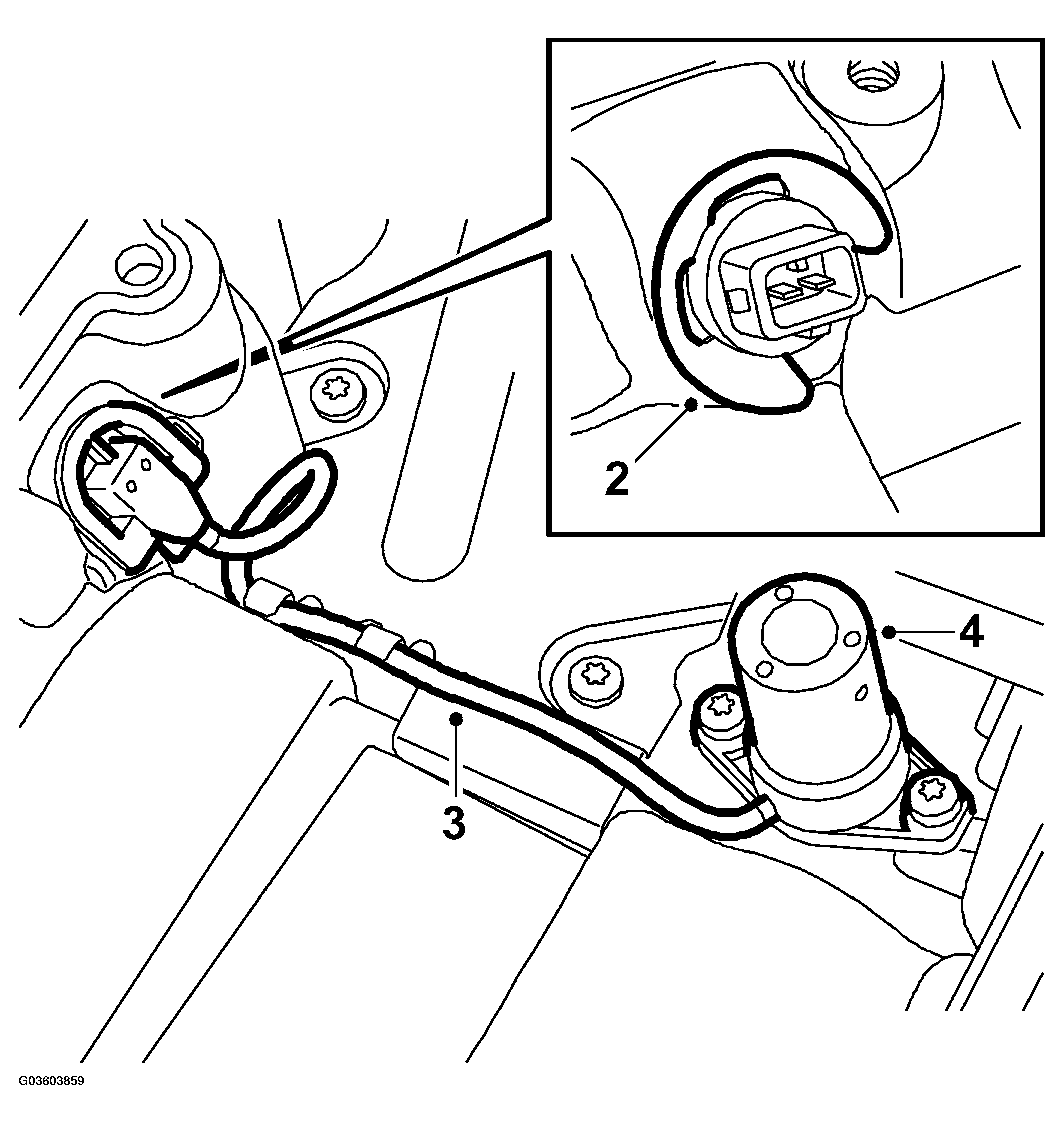

    Fig 1: Illustration For Steps 2-4
    G03603859Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Make a note of how the cables are run and secured.
  4. Remove the oil level sensor.
