Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T8 Fuel Control System (Late; 9440) >> Adjustment/Replacement >> Coolant temperature sensor (202) >> To remove

To remove

  1. Remove the upper engine cover.

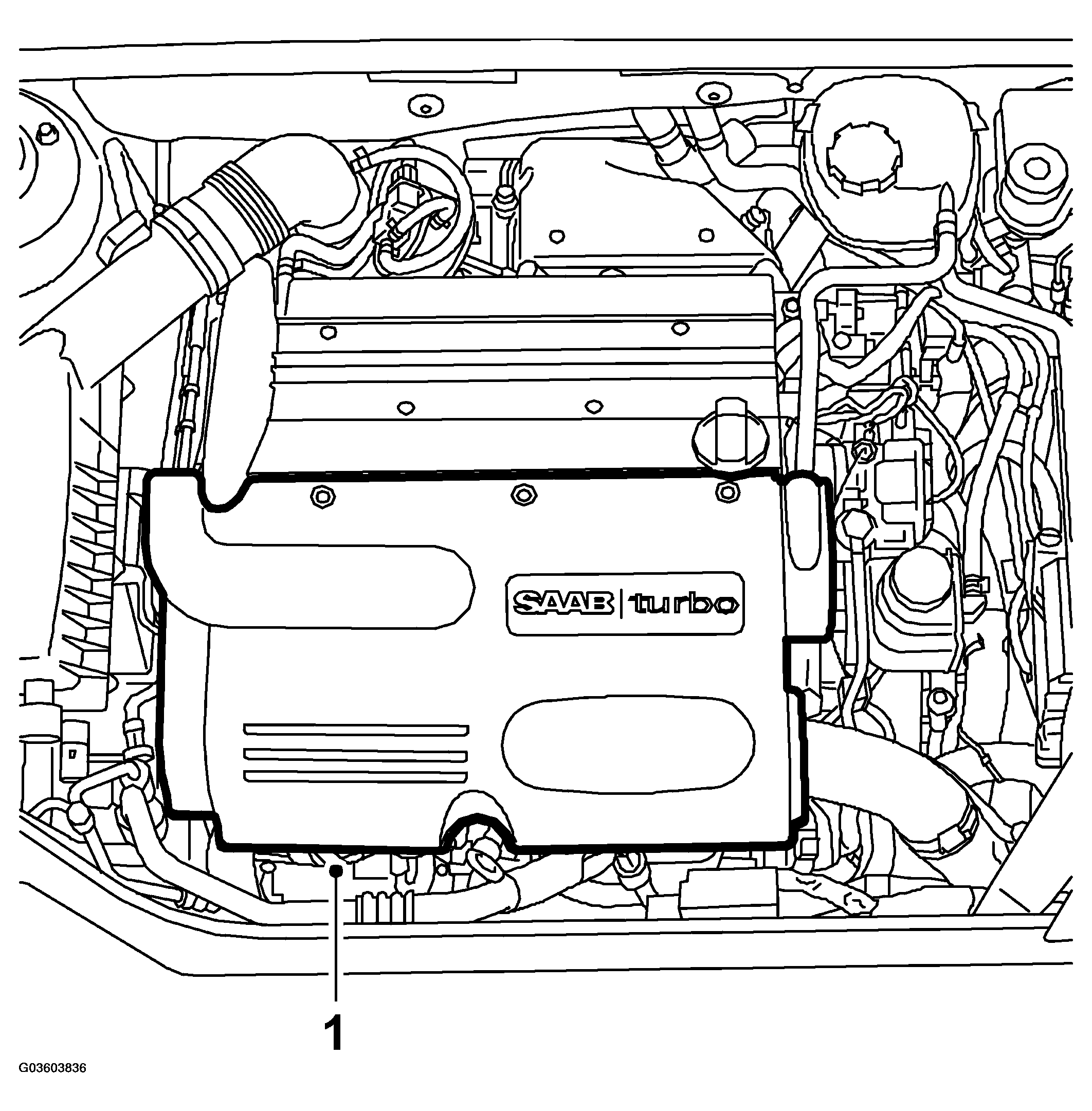

    Fig 1: Illustration For Step 1
    G03603836Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the cap on the expansion tank to release pressure, retighten the cap.

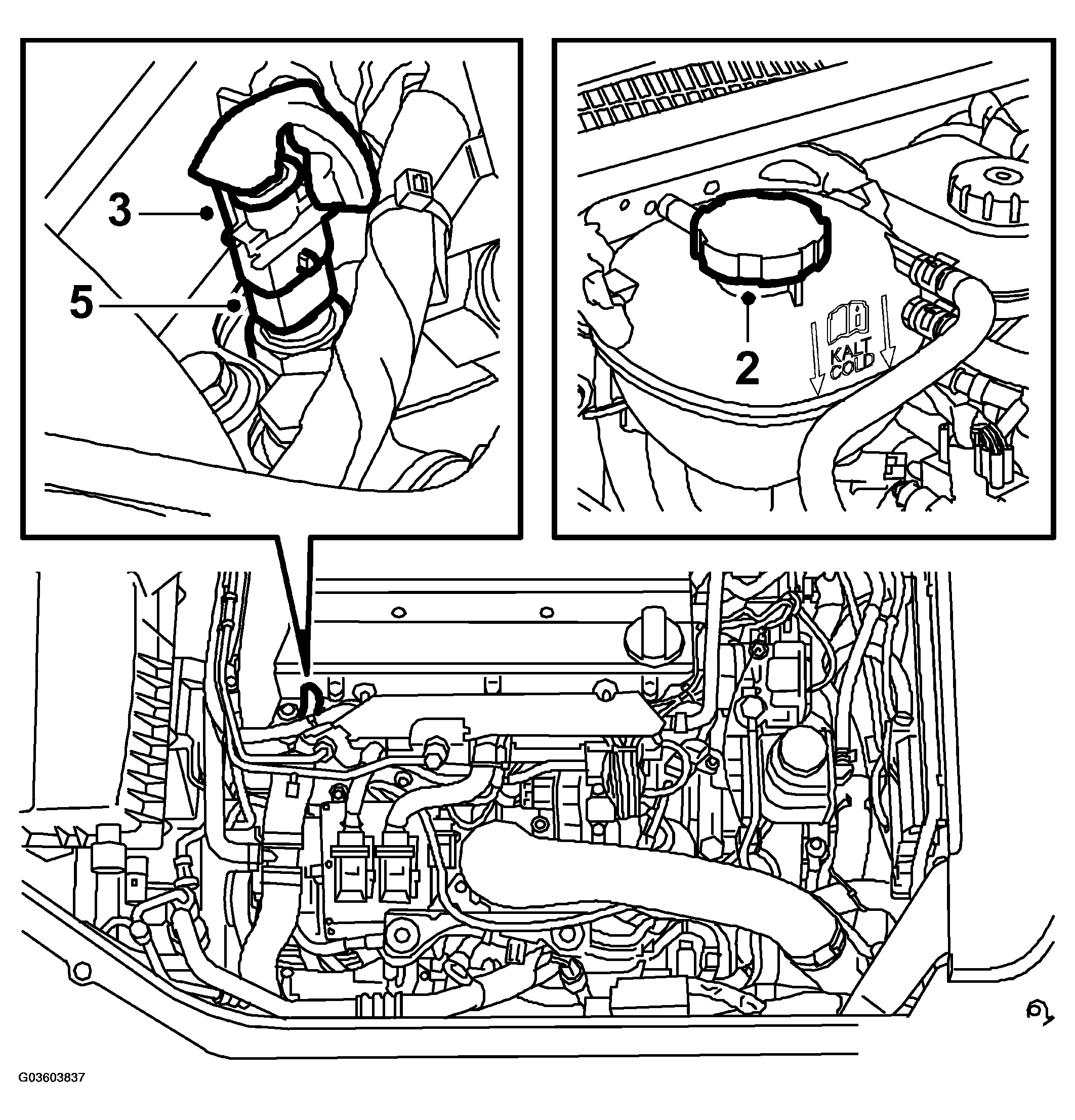

    Fig 2: Illustration For Steps 2, 3 & 5
    G03603837Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector to the coolant temperature sensor.
  4. Have some paper ready to collect any spilled coolant.
  5. Remove the coolant temperature sensor. Use 83 96 087 SPECIAL SOCKET, COOLANT TEMPERATURE SENSOR  B207.
