Heated oxygen sensor 2, after catalytic converter (592Ra)

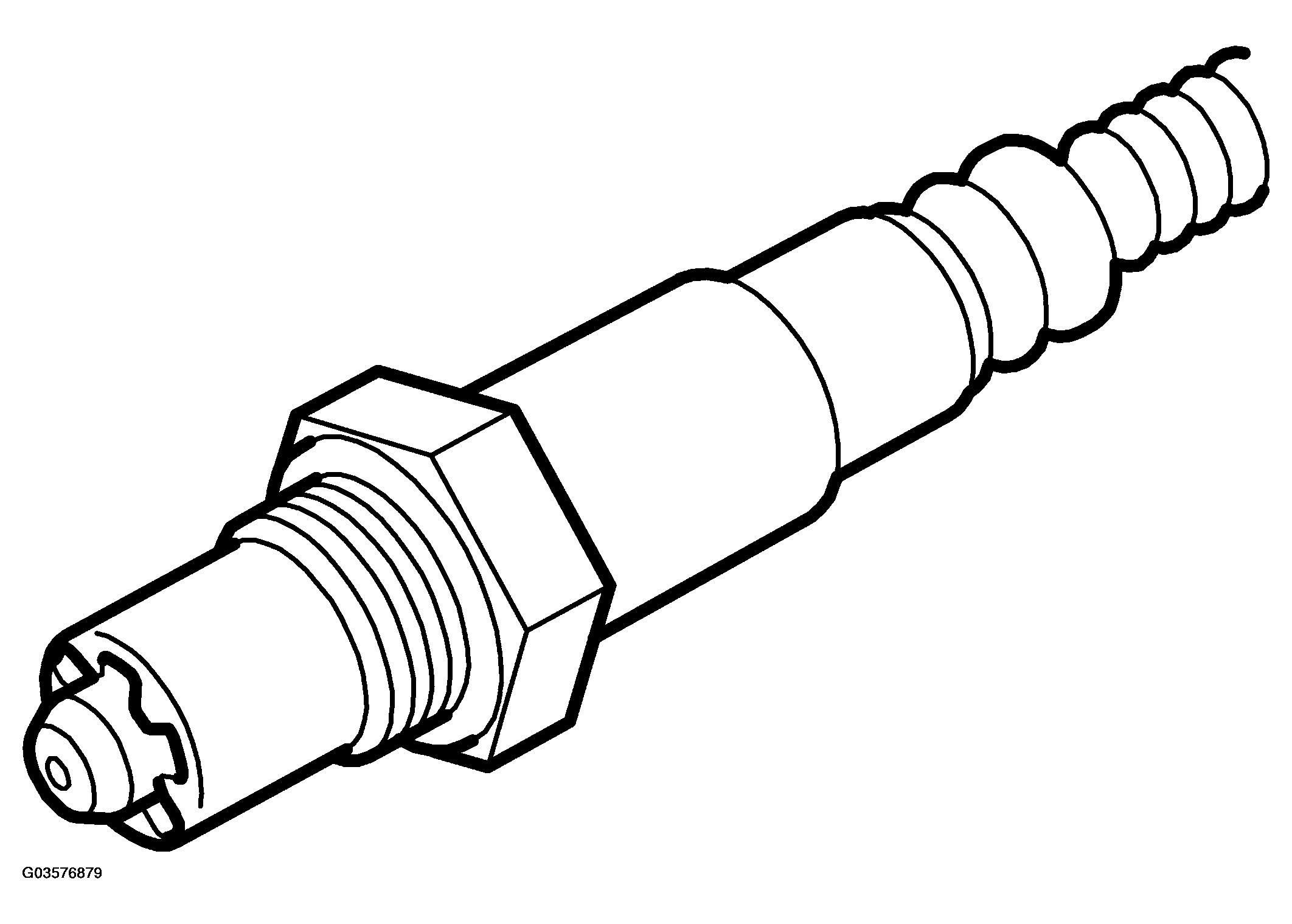

Fig 1: Identifying Heated Oxygen Sensor 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Heated Oxygen Sensor 2 Voltage Graph

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - HEATED OXYGEN SENSOR 2

Location		After catalytic converter
Type		Bosch LSF 4.7 With electric preheating
Rating, pre-heating	W	approx. 7
Control range	V	0-1
Resistance at 20°C (68°F) pins 1- 2	Ohms	approx. 9

Pins 3 and 4 are gold-plated.

NOTE: The connector must not be treated with any kind of contact cleaner.
