Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Component Location >> Relay, limp-home (640)

Relay, limp-home (640)

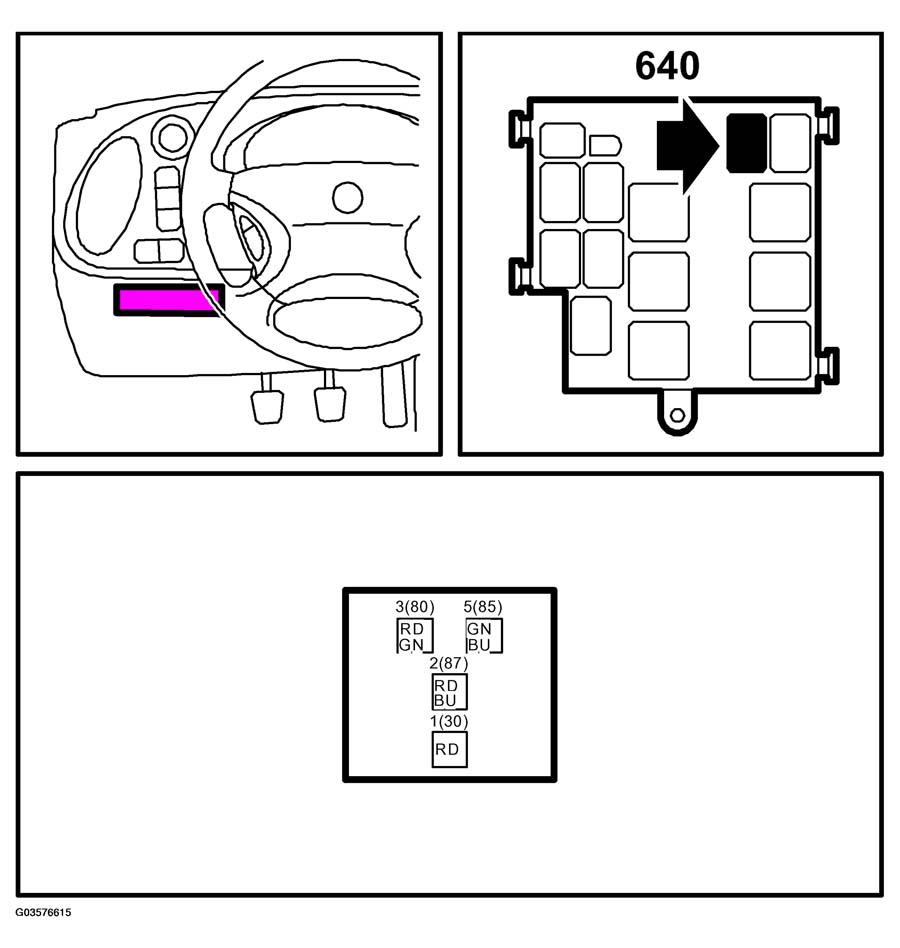

Fig 1: Identifying Limp-Home Relay - Connector Pinouts

G03576615

Courtesy of SAAB-SCANIA OF AMERICA, INC.
