Relay, fuel pump (102)

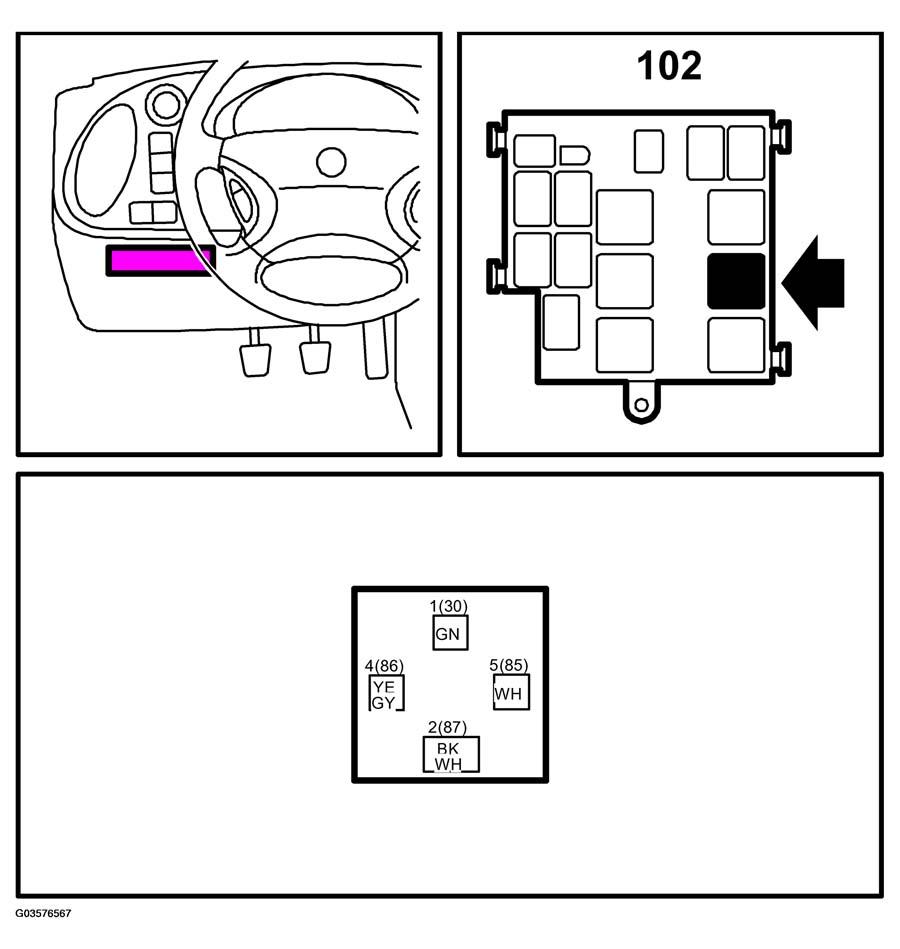

Fig 1: Identifying Fuel Pump Relay - Connector Pinouts

G03576567

Courtesy of SAAB-SCANIA OF AMERICA, INC.
