Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Component Location >> Pressure sensor, intake manifold (431) >> PSG16

Pressure sensor, intake manifold (431): PSG16

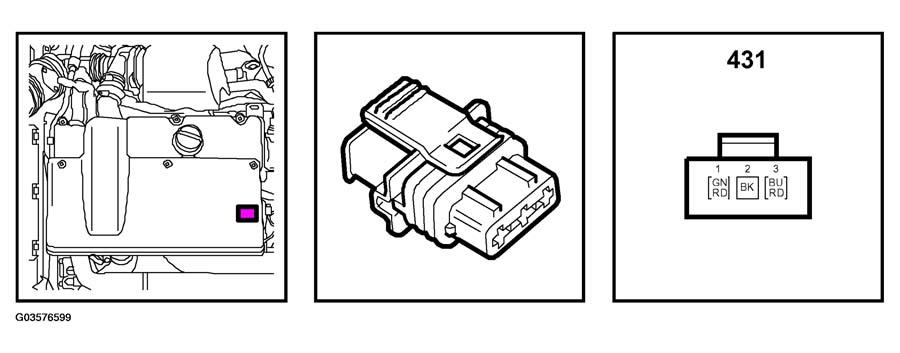

Fig 1: Identifying Intake Manifold Pressure Sensor Connector Pinouts - PSG16

G03576599

Courtesy of SAAB-SCANIA OF AMERICA, INC.
