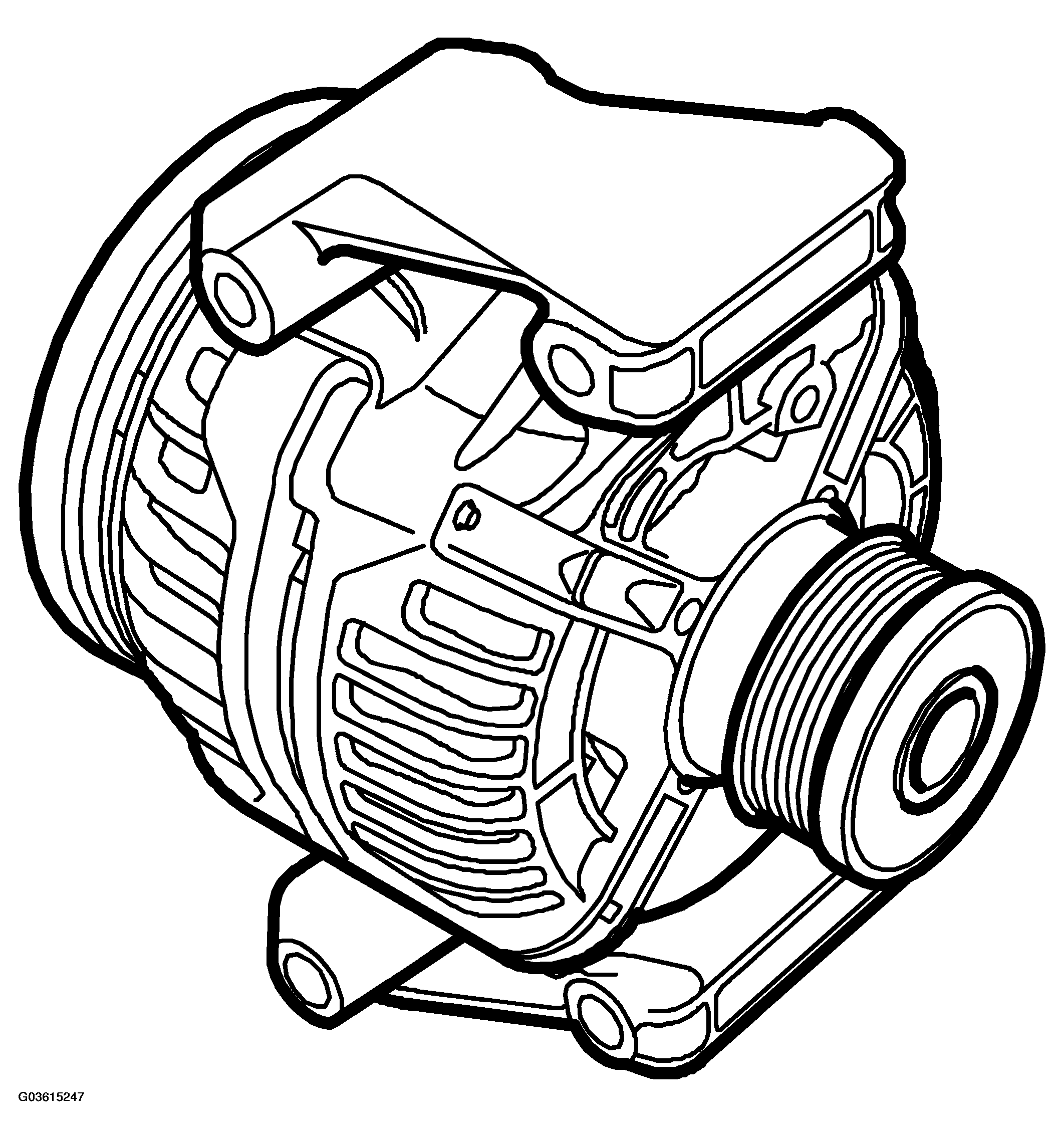

Alternator 140A, B207
ALTERNATOR SPECIFICATION
| Type designation | Bosch E8-14V 75-140A | |
| Rated voltage | V | 14 |
| Stator connection | Delta connection | |
Slip ring diameter
|
mm mm |
15.4 14.4 |
Max. permissible radial runout:
|
mm mm mm |
0.2 0.02 0.087 |
| Min. brush length, from brush holder opening | mm | 7.5 |
| Ratio crankshaft/generator belt pulleys | 1:2.70 (57 mm pulley) |
TEST VALUES CHART
| Test values | ` | |
|---|---|---|
| Resistance, rotor winding Resistance, stator between phases |
Ohm Ohm |
2.6 0.040 |
| Generator RPM/rated current at 1800 RPM 6000 RPM |
A A |
75 140 |
