Microswitch In Boot Lid/Tailgate Lock (LA)

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the boot lid/tailgate.

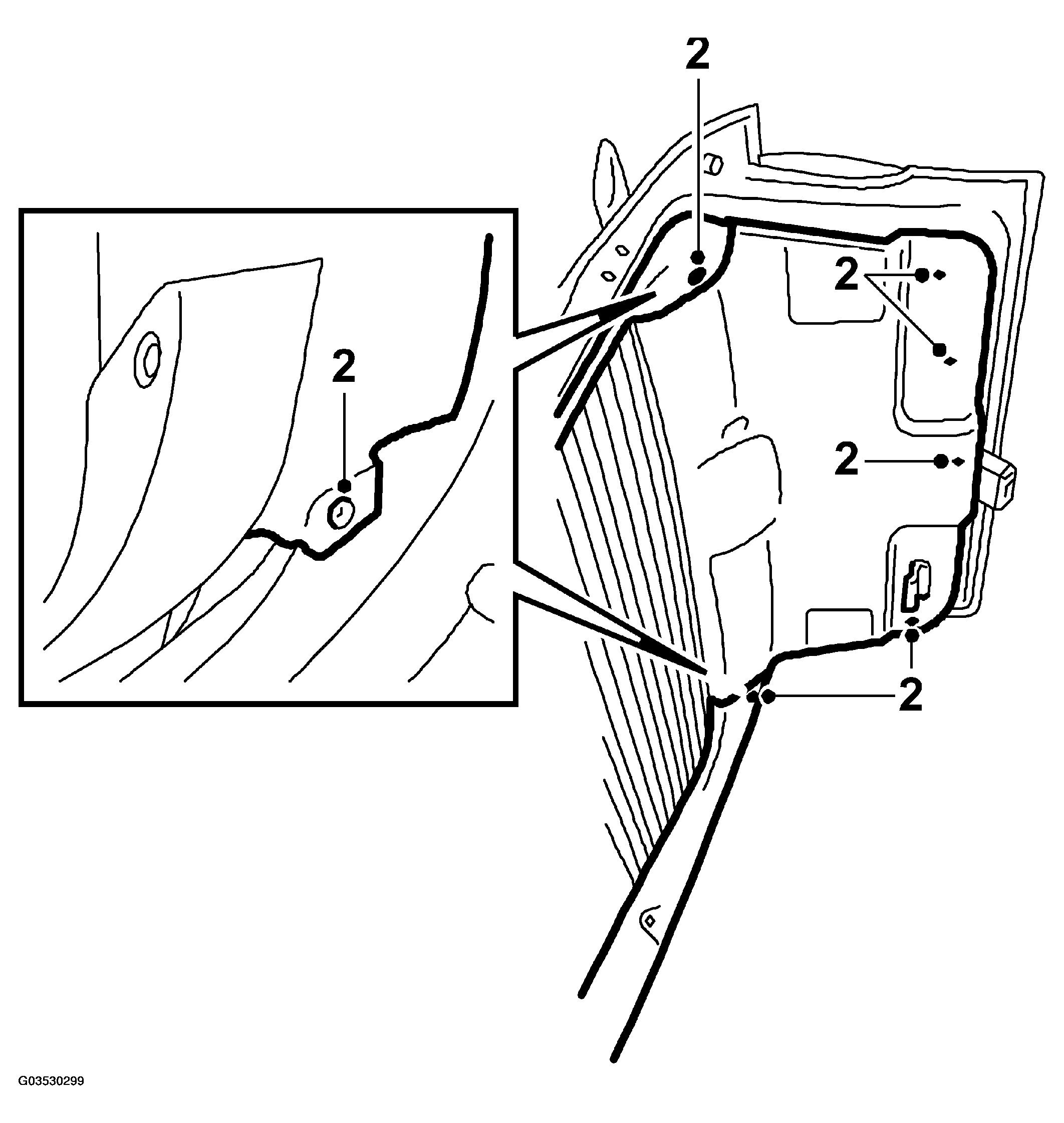

    2. Fig 1: Illustration For Steps 2
    G03530299Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the boot lid/tailgate trim.

    See DOOR TRIM, TAILGATE

  3. Fit the microswitch.

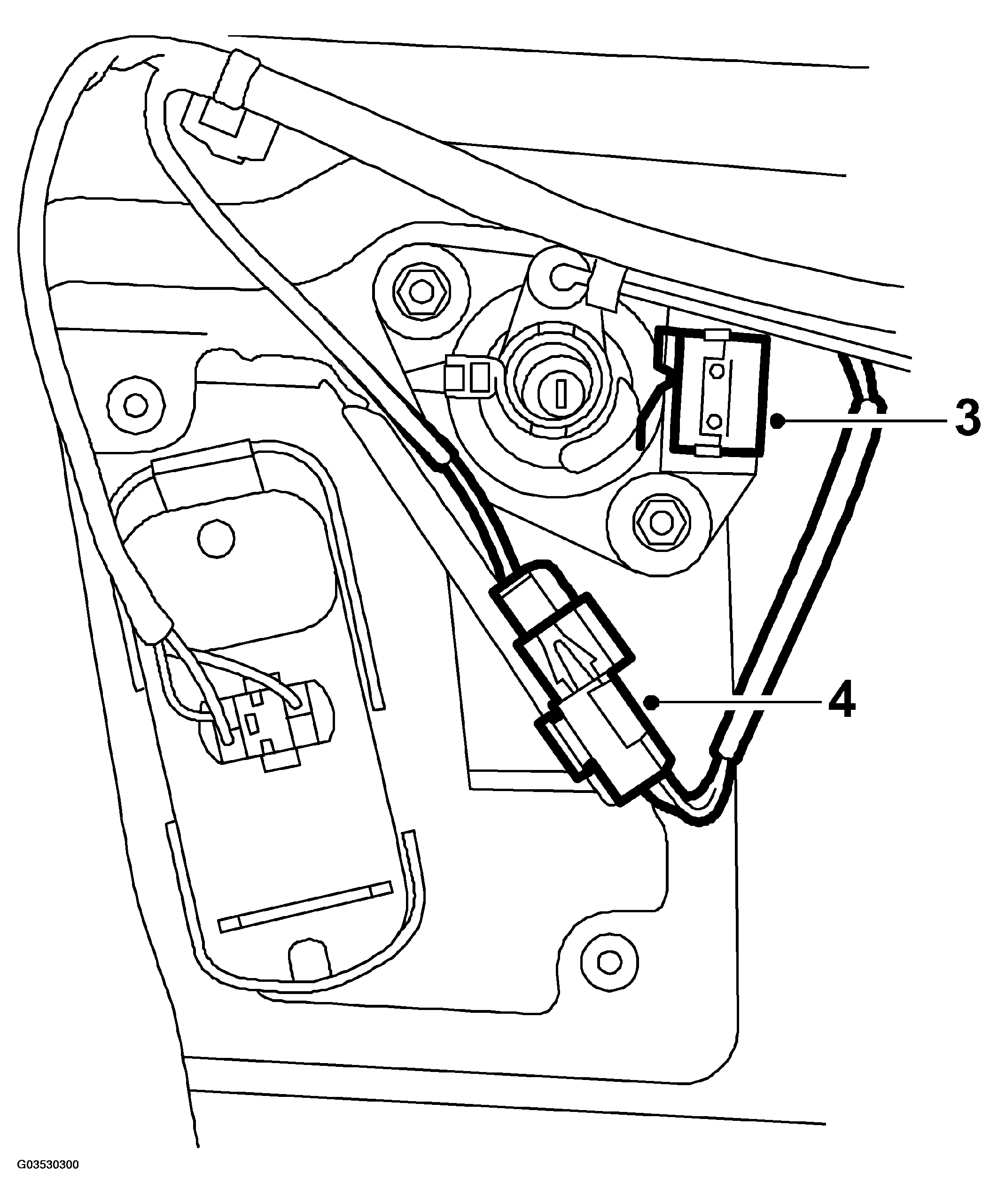

    Fig 2: Illustration For Steps 3-4
    G03530300Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Localize the electrical connector for the microswitch on the wiring harness and connect it to the microswitch.
  5. Fit the trim on the tailgate.
