System Overview, Button Illumination And Lighting For Controls

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

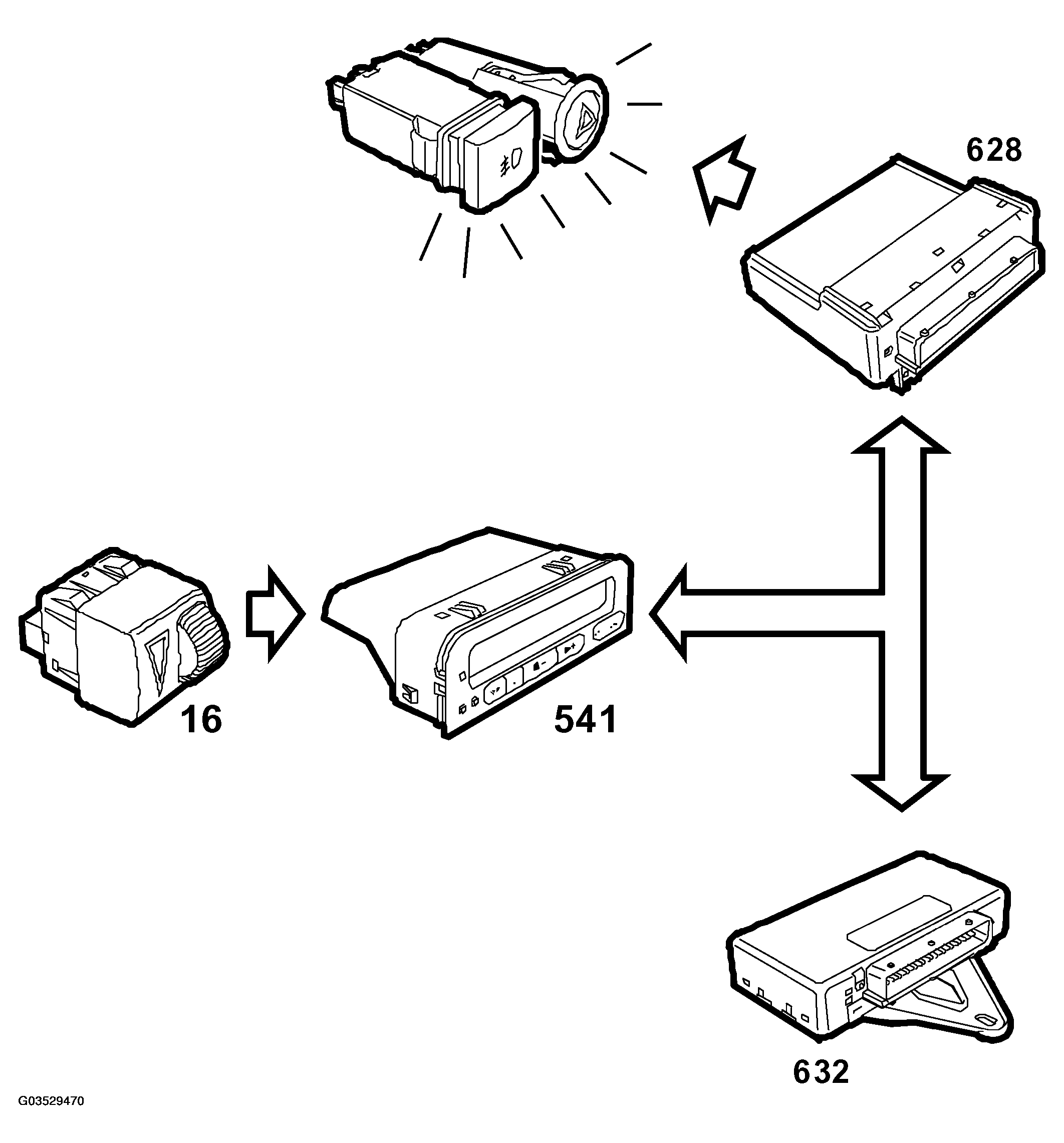

Fig 1: System Overview - Button Illumination And Lighting For Controls
G03529470Courtesy of SAAB-SCANIA OF AMERICA, INC.
