To remove

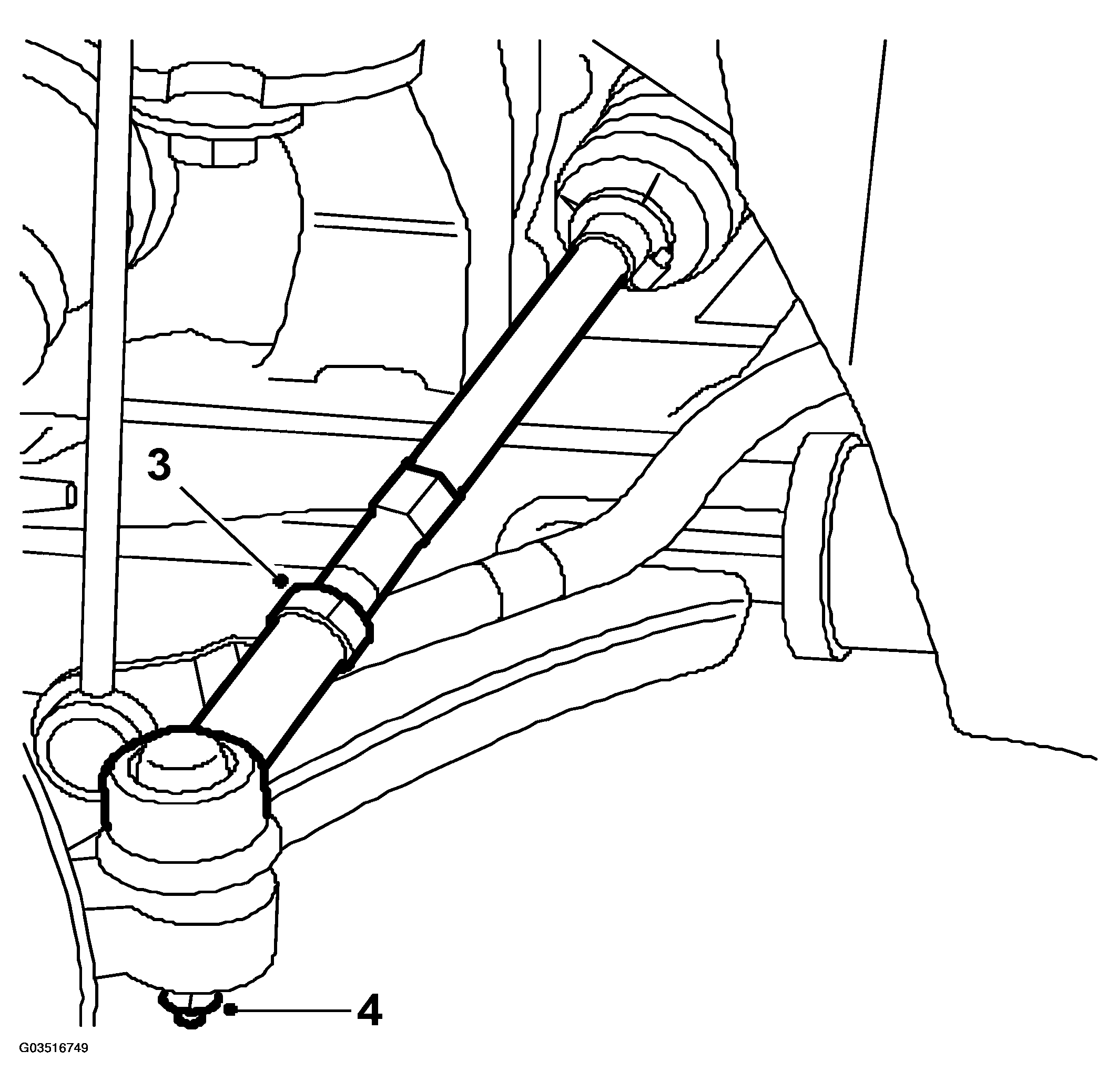

Fig 1: Illustration For Steps 3-4
G03516749Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car. If a jack is used, safety stands should be placed under the car.
  2. Remove the wheel.
  3. Slacken the locknut.
  4. Undo the nut securing the track-rod end to the steering swivel member.
  5. Remove the track-rod end from the steering swivel member, using 89 96 696 PULLER .

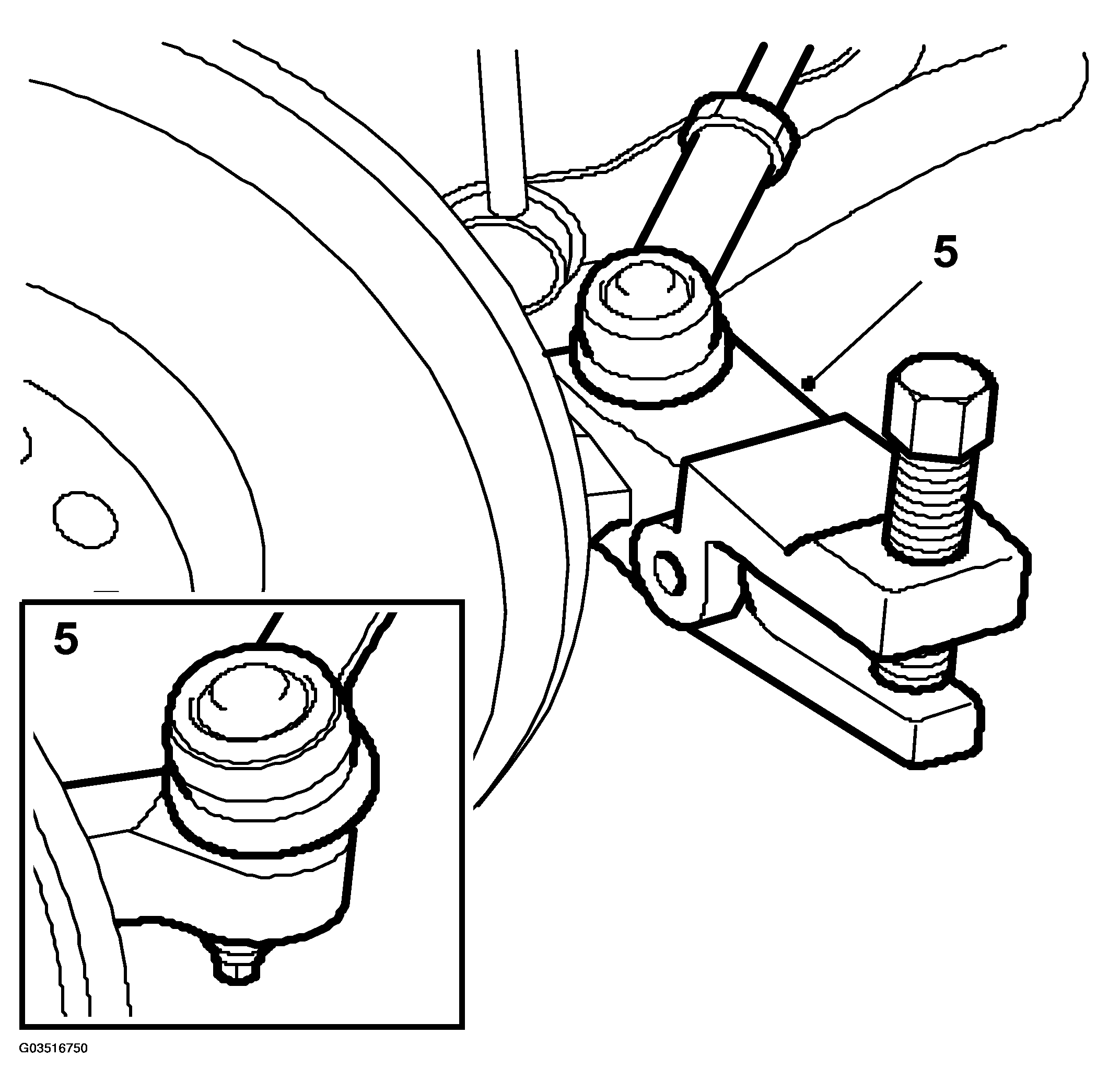

    Fig 2: Illustration For Step 5
    G03516750Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Unscrew the track-rod end from the track rod, counting the number of turns.

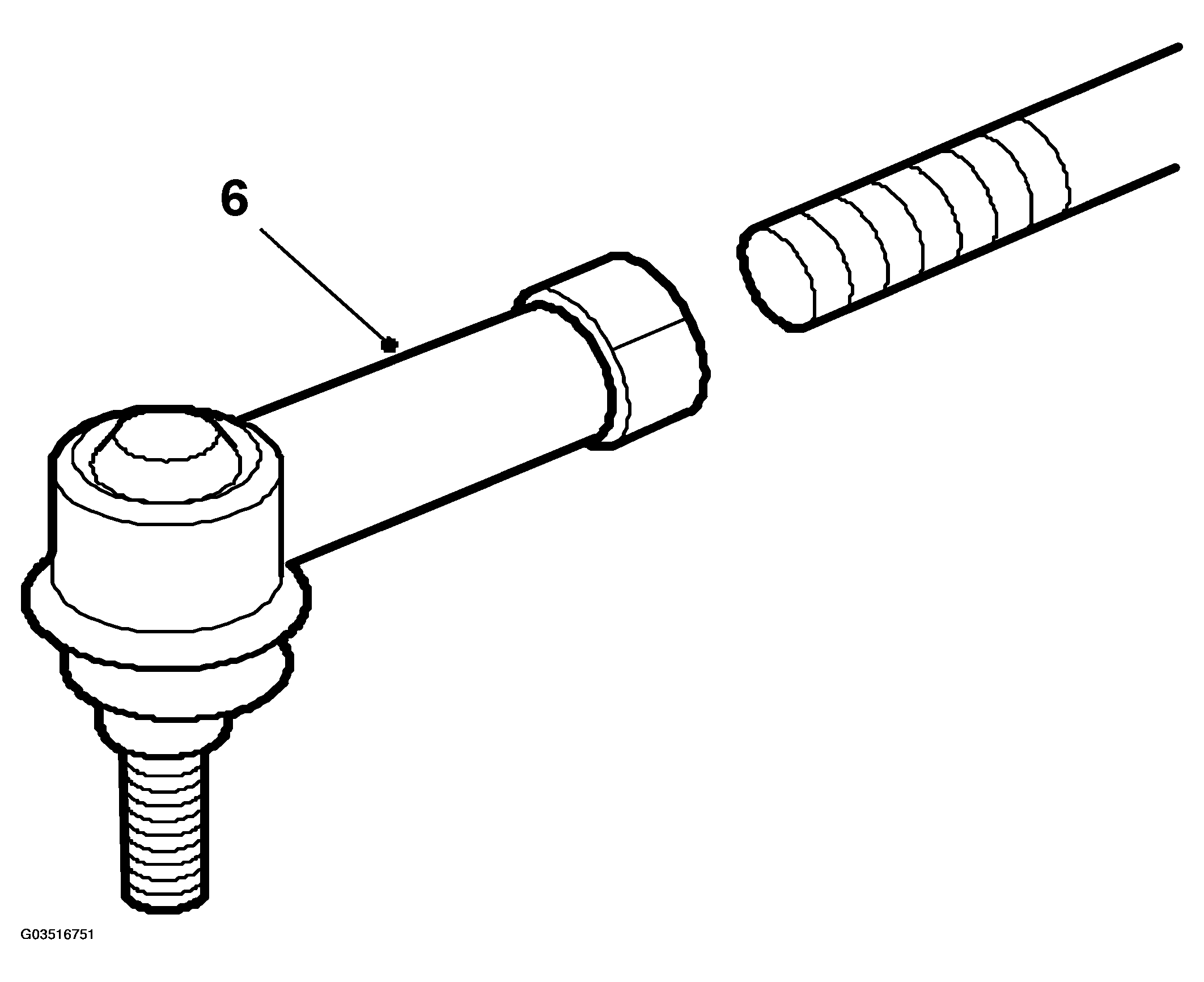

    Fig 3: Illustration For Step 6
    G03516751Courtesy of SAAB-SCANIA OF AMERICA, INC.
