Fault Isolation Procedure

Examine the evaporative emission system carefully for leaks, check to be sure the filler cap is properly fitted.

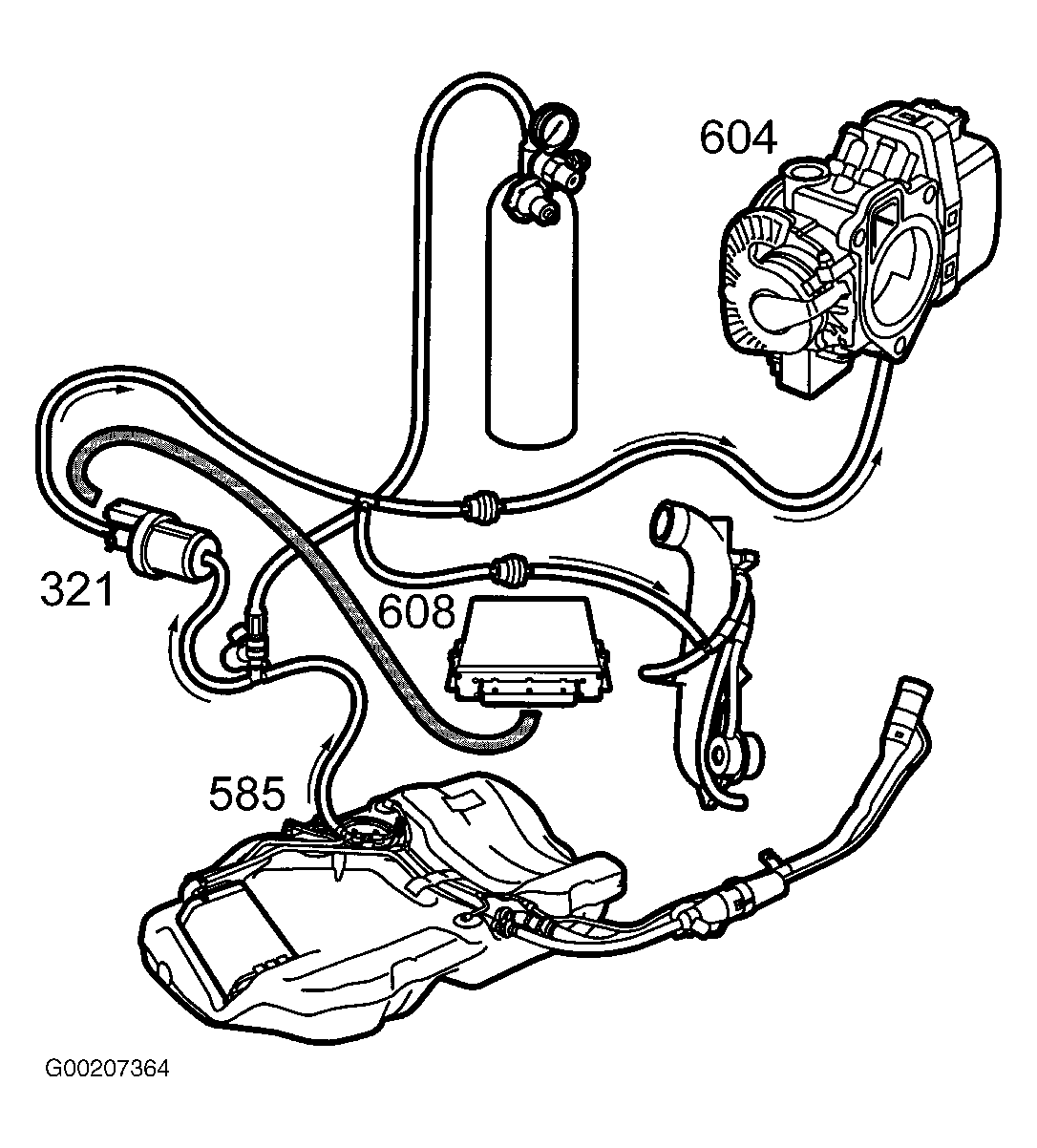

Fig 1: EVAP System Overview (4-Cyl)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

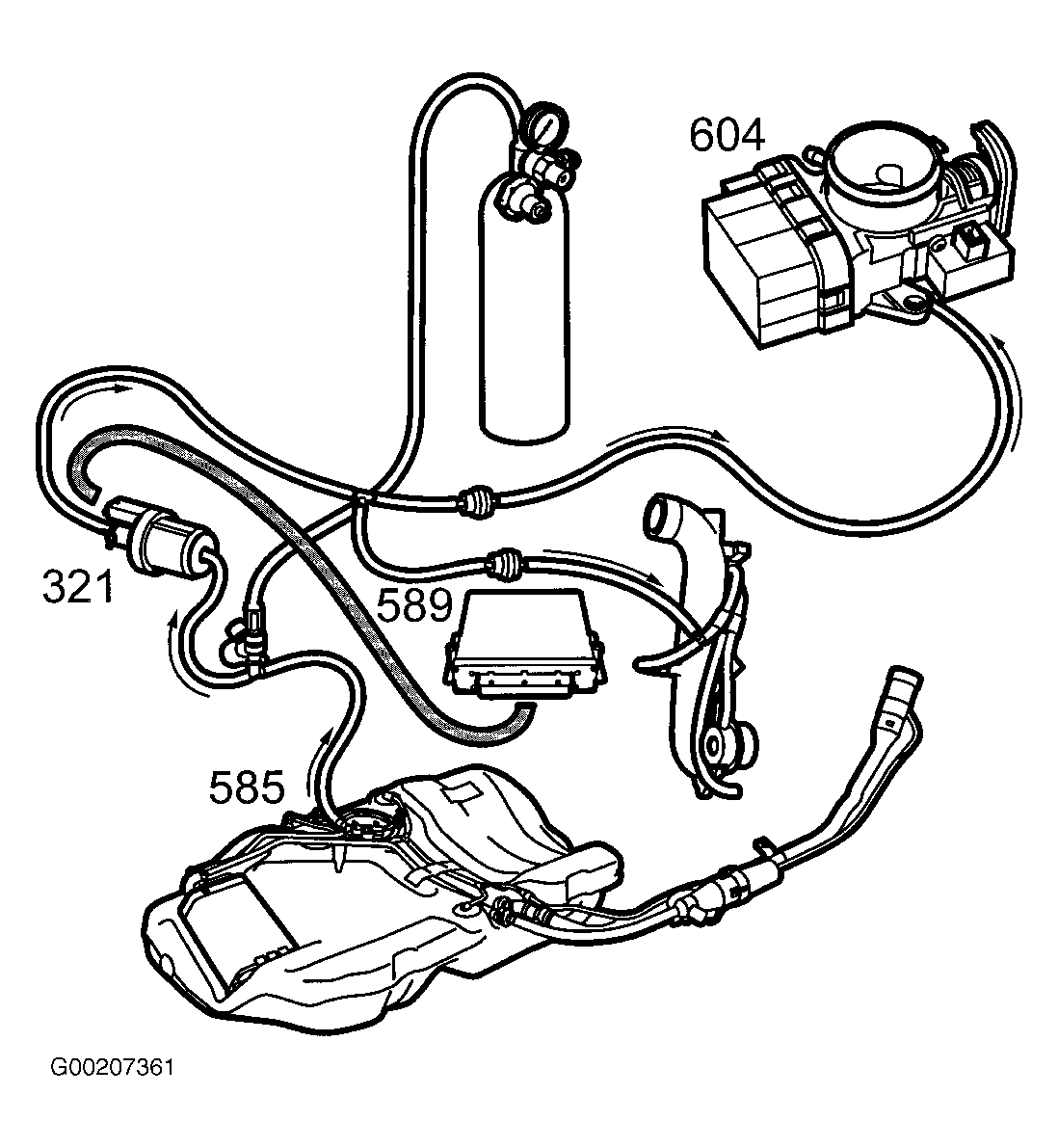

Fig 2: System Overview, Tank Purging (V6)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
