Fault Isolation Procedure
- Checking the control module's signal input:
- Turn the ignition switch to the ON position.
- Unplug the connector: Ignition discharge module, Bank 2 346F.
- Take a voltage reading: (6,7) Ignition discharge module, Bank 2.
- Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.
If the reading shows 4.9-5.1 volts, go to step 3, otherwise go to next step.

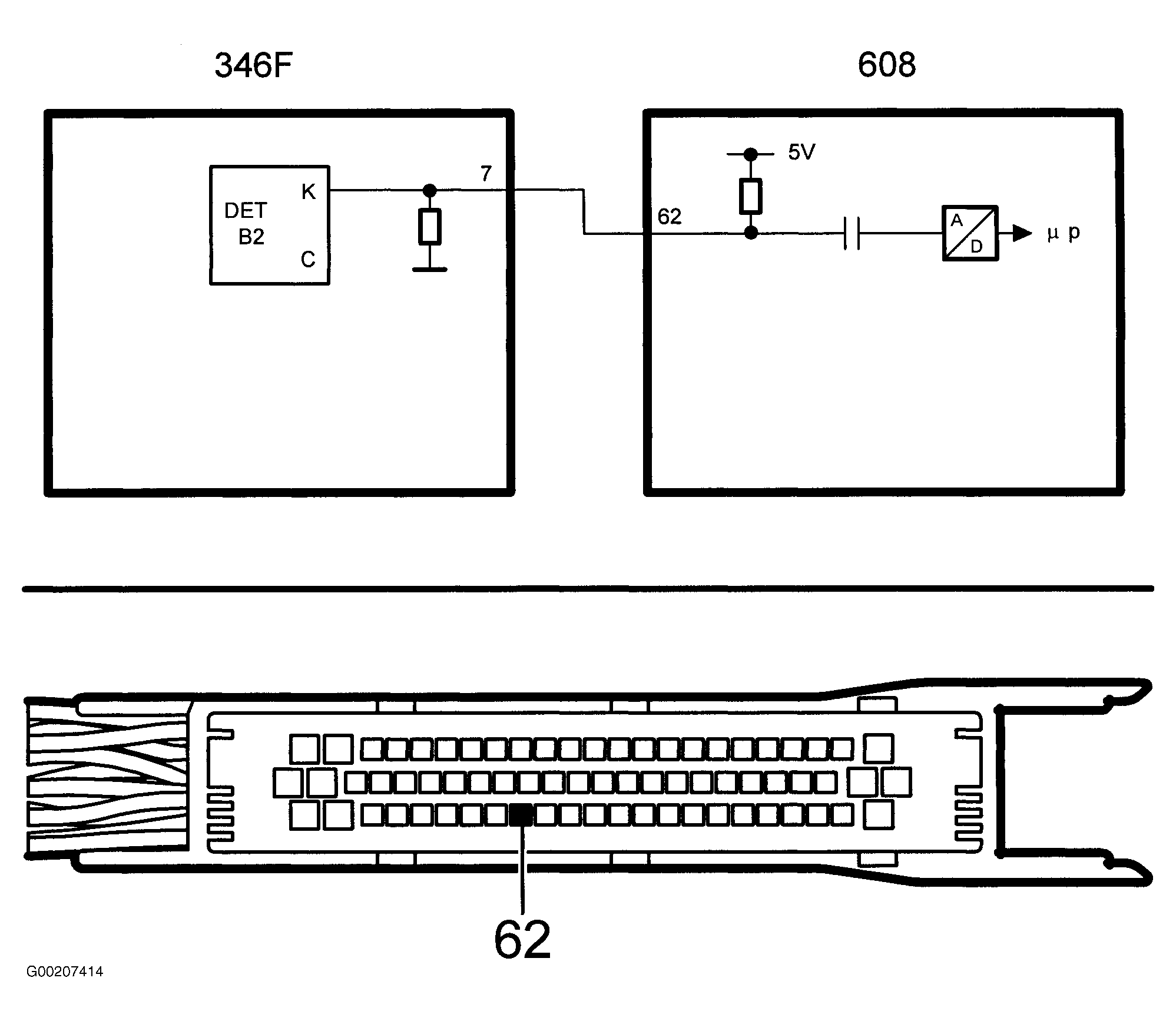

- Rectifying the lead: The lead from pin 7 of the female connector to pin 62 of the control module is faulty. Rectify the fault and go to step 4.
- Changing components: Change Ignition discharge module, Bank 2. When finished, go to next step.
- Final check:
- Clear the DTCs in all systems.
- Carry out a drive cycle: Drive the car at varying engine loads and engine RPM for 5 minutes.
- Evaluate the drive cycle: Check that the DTC has not recurred.
If the trouble code has recurred, the ECM is probably at fault and will need replacement. Replace with known-good ECM and retest. if no DTCs are present, then the steps taken to rectify the fault were correct.
