Grounding Point G41S: Notes

Fig 1: Identifying Grounding Point G41S
G03514385Courtesy of SAAB-SCANIA OF AMERICA, INC.

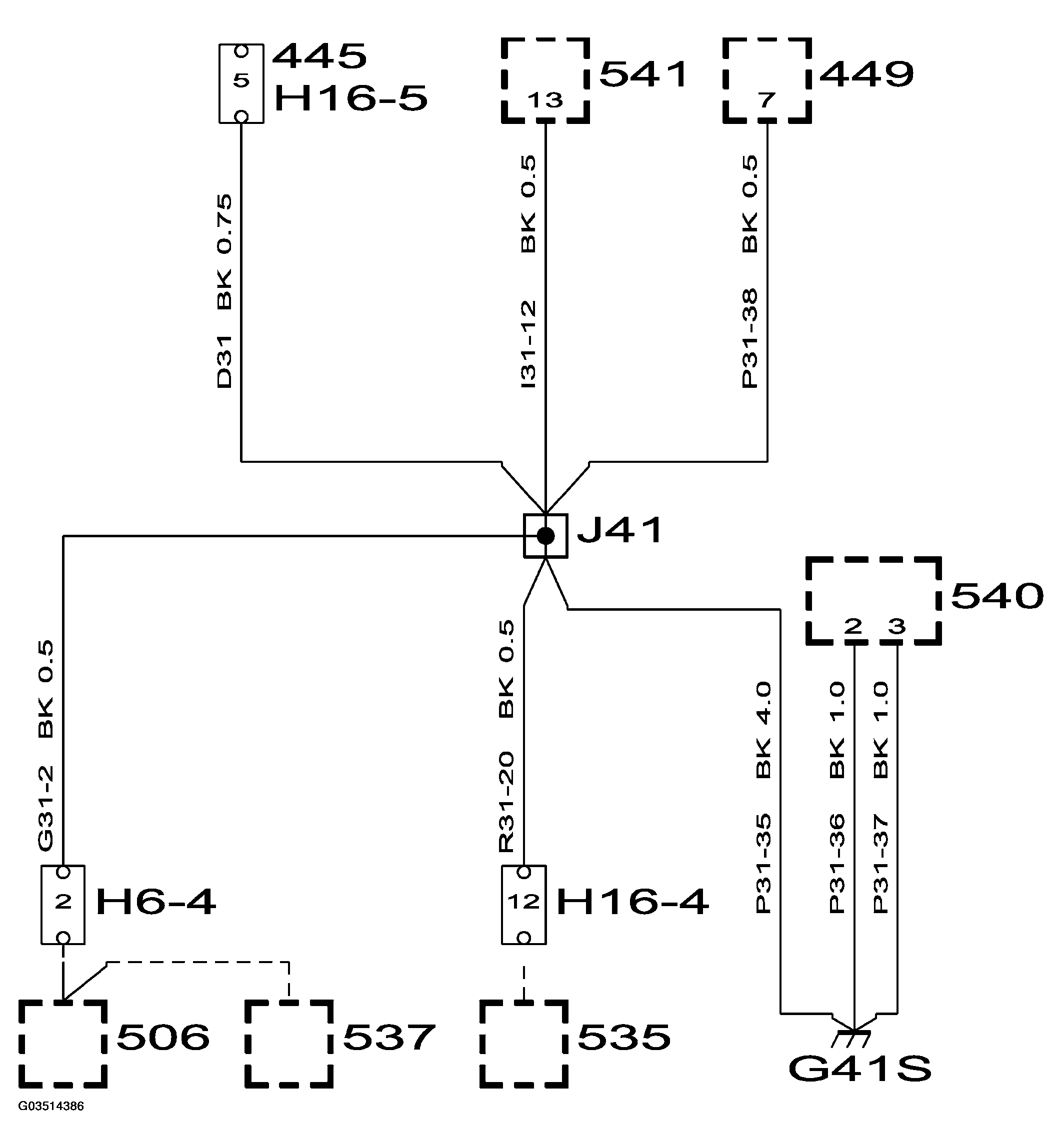

Fig 2: Grounding Point G41S - Circuit Diagram
G03514386Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the left-hand ground screw in the middle of the knee member (in the interior).
