Grounding Point G30: Notes

Fig 1: Identifying Grounding Point G30
G03514381Courtesy of SAAB-SCANIA OF AMERICA, INC.

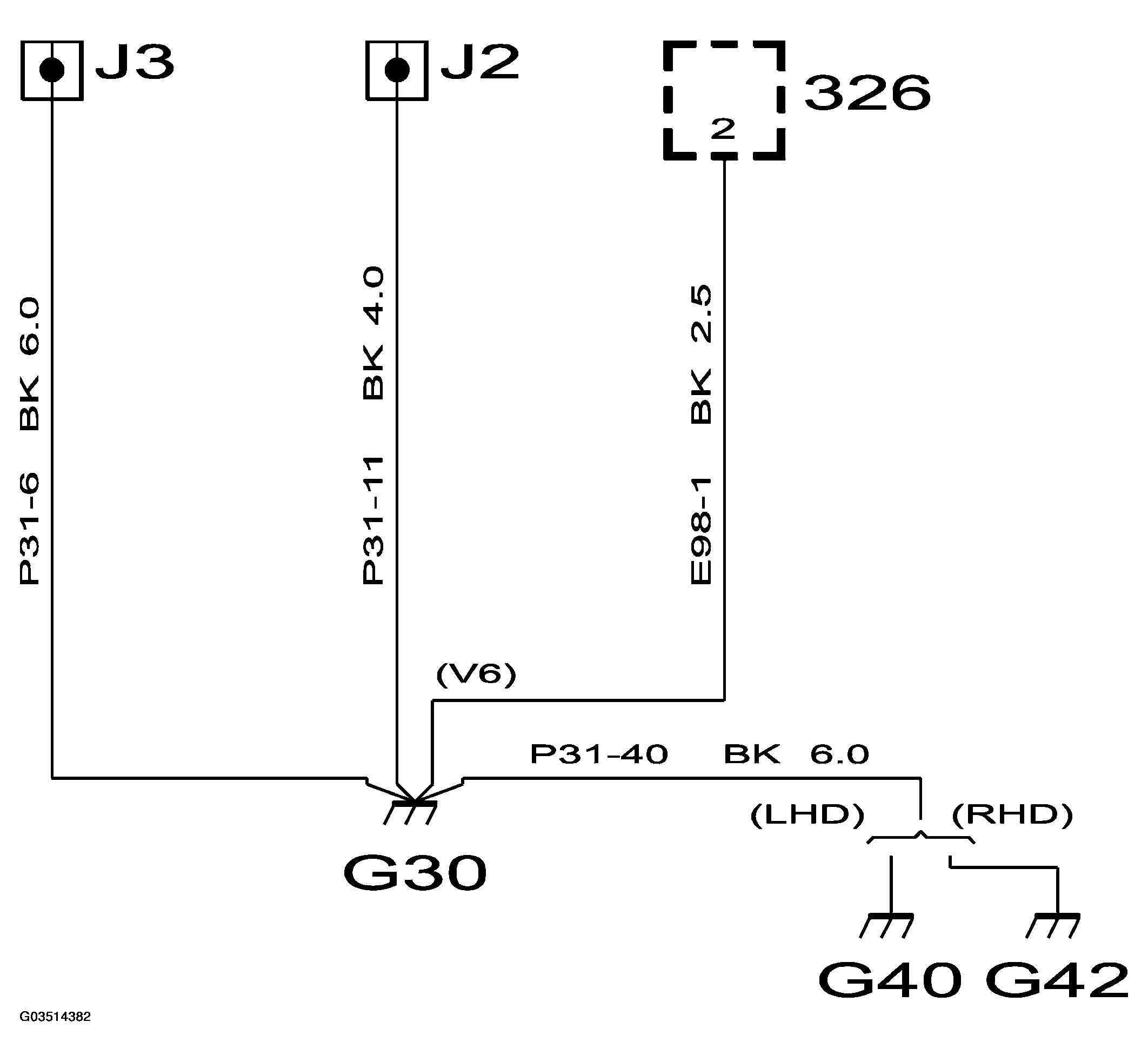

Fig 2: Grounding Point G30 - Circuit Diagram
G03514382Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In the engine bay on the side panel in front of the left-hand wheel housing
