Control Module Outputs, Bus

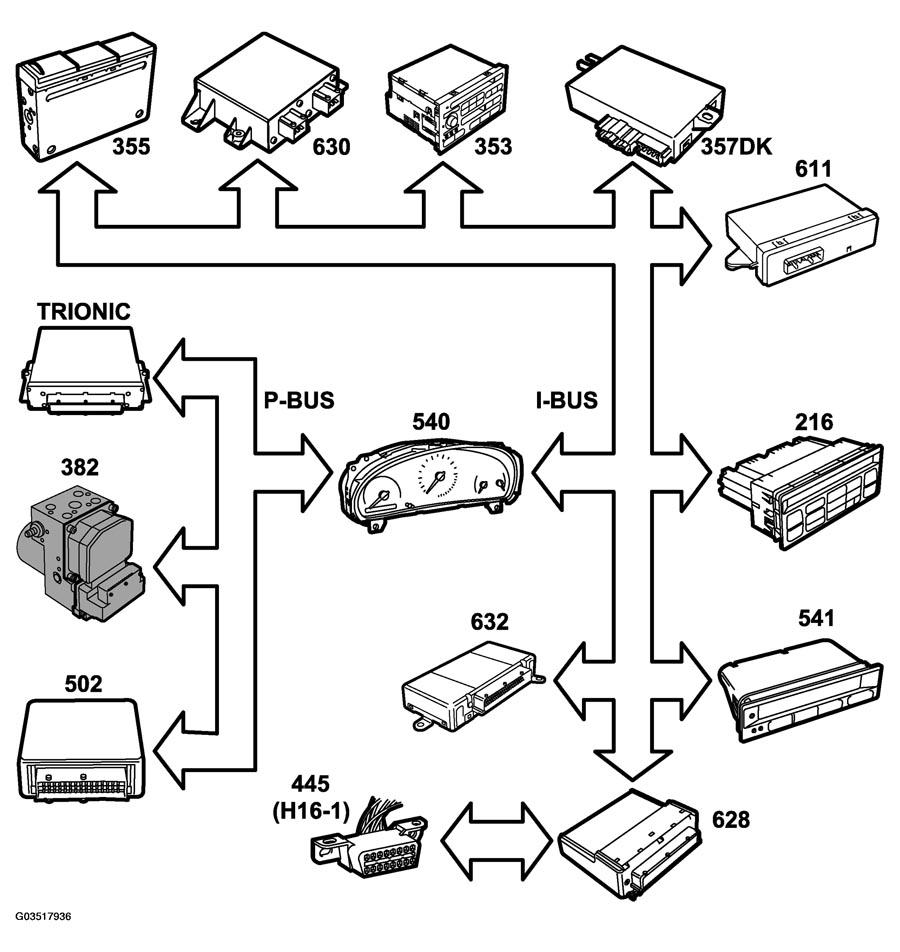

Fig 1: Identifying Control Module Outputs, Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Left Rear Light Faulty (yes/no) used by SID (541)
Right Rear Light Faulty (yes/no) used by SID (541)
Left Rear Light Faulty (yes/no) used by DICE (628)
Right Rear Light Faulty (yes/no) used by DICE (628)
Left Brake Light Faulty (yes/no) used by SID (541)
Right Brake Light Faulty (yes/no) used by SID (541)
High Level Brake Light Faulty (yes/no) used by SID (541)
Brake light (on/off) used by TCM (502), SID (541)
Sound (sound information) used by SID (541)
Driver's door (open/closed), used by DICE (628), MIU (540), PSM (357Dk), PMM (611)
Passenger door (open/closed), used by DICE (628), MIU (540), PSM (357Dk), PMM (611)
Left Rear Door (open/closed) used by DICE (628), MIU (540)
Right Rear Door (open/closed) used by DICE (628), MIU (540)
Boot lid/tailgate (open/closed) used by DICE (628), MIU (540)
Horn (0: 6: 42 ms) used by SID (541)
Hazard Flashers (on/off) used by DICE (628)
Text Message used by SID (541)
Test brake lights (on/off) used by SID (541)
Steering wheel position (LHD/RHD) used by ACC (216), MIU (540), PMM (611)
Immobilization (on/off) used by Trionic (430)
Anti-theft alarm (armed/disarmed) used by (000)
Key Correct (on/off) used by Audio (353), CD-changer (355)
Passenger Seat Occupied (yes/no) used by ACC (216)
Central locking (lock/unlock) used by DICE (628)
Body type (4D/5D) used by SPA (630)
Diagnostic communication

For a further description of the control module bus input information, see BUS COMMUNICATION
