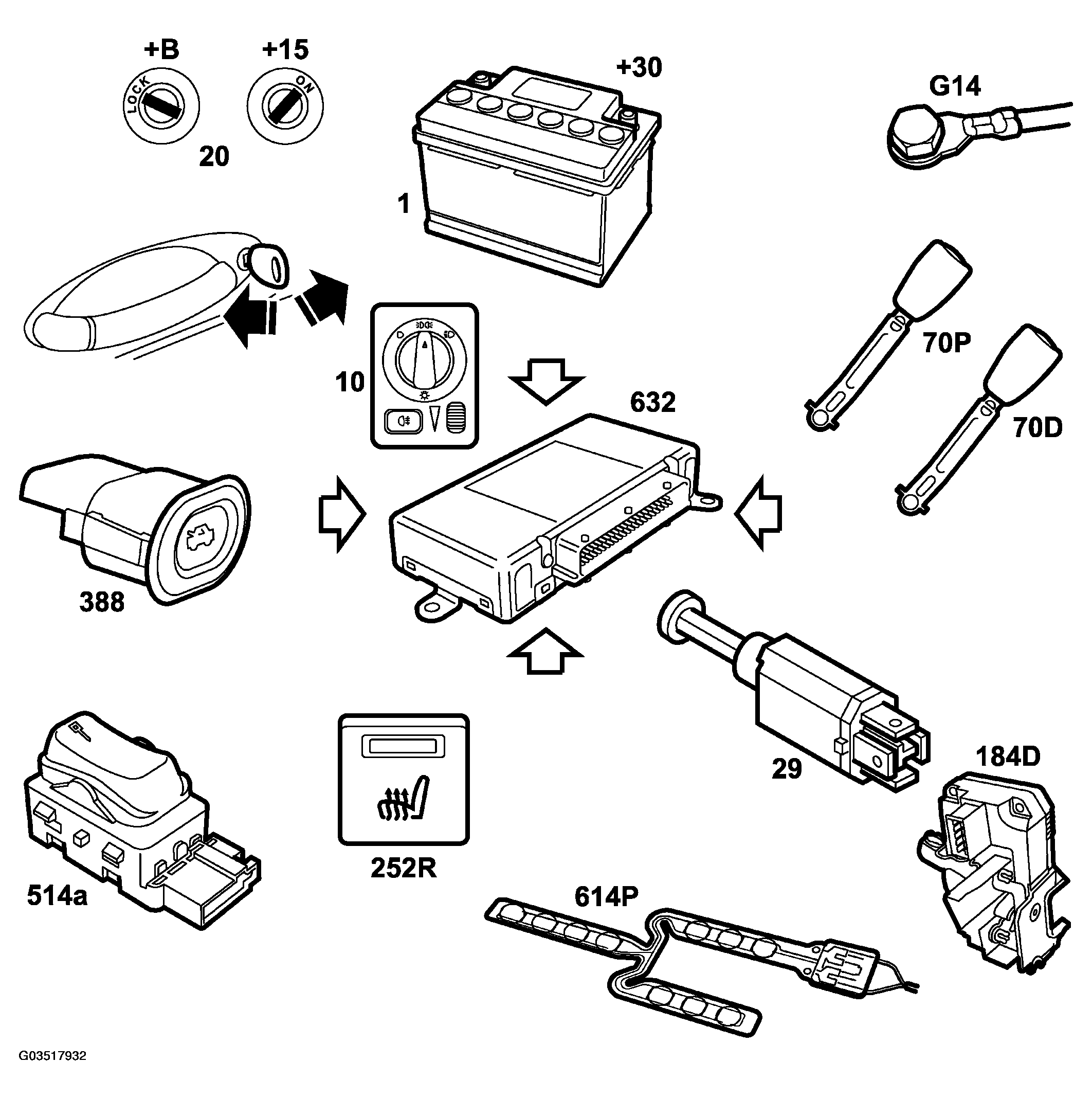

Control Module Inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Power supply +B circuit (20)
- Power supply +15 (20)
- Power supply +30 (1)
- Power ground (G14)
- Signal ground (G14)
- Lamps, parking light, left, power supply from switch (10)
- Lamps, parking light, right, power supply from switch (10)
- Brake lights, power supply (29)
- Seat belt switch, driver (70D)
- Seat belt switch, passenger (70P)
- Sensor for occupied seat, front passenger (614P)
- Switch, electrically heated rear seat, request (252R)
- Switch, simultaneous locking/unlocking central locking (514a)
- Motor, central locking system, driver. Key switch for locking/unlocking (184D)
- Motor, central locking system, driver. Lock button in driver's door (184D)
- Motor, boot lid/tailgate. Key switch for locking/unlocking (184H)
- Switch, boot lid/tailgate. Unlocking (388)
- Central locking, power supply (11/22A)

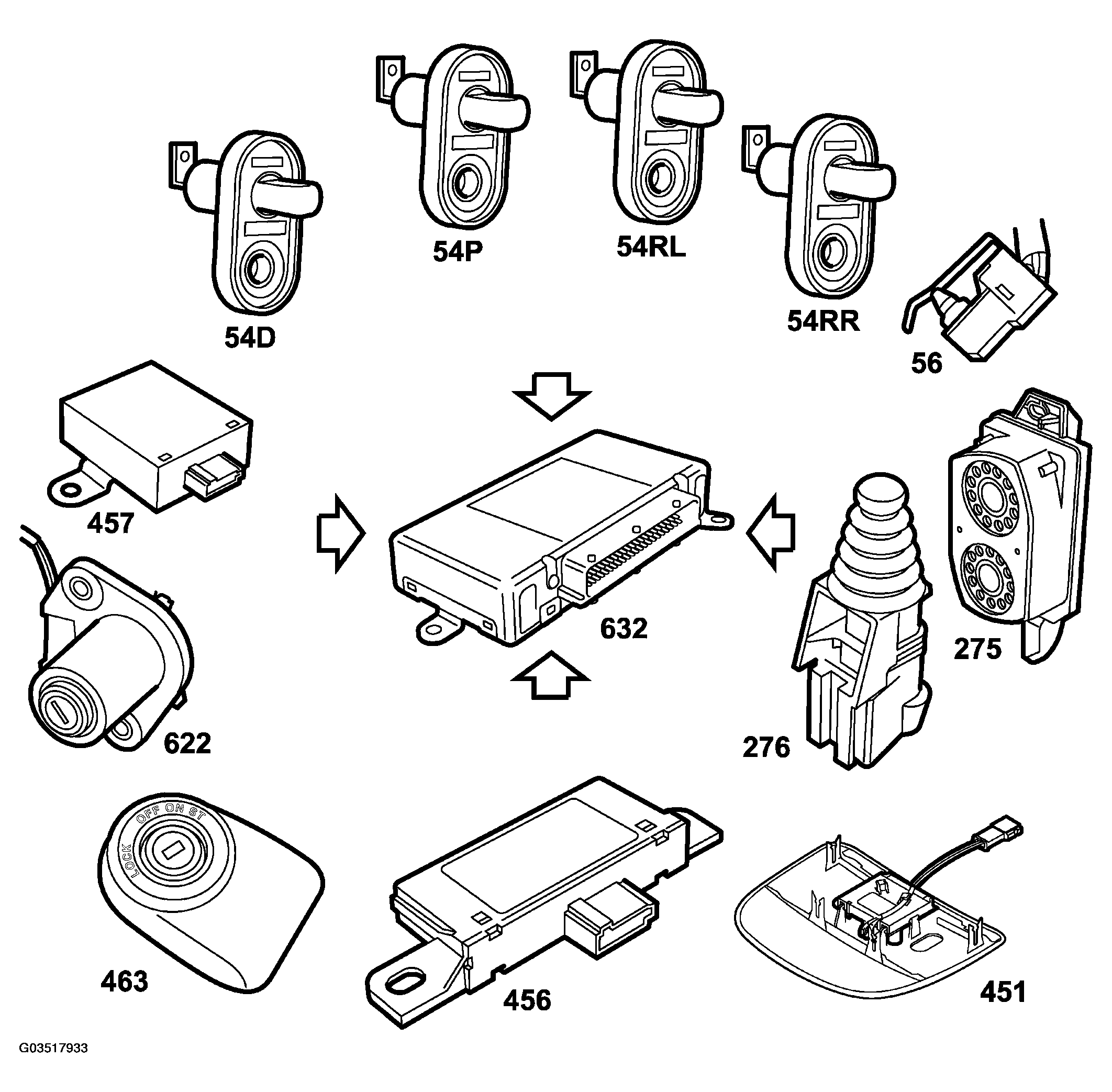

Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Door switch, front left (54FL)
- Door switch, front right (54FR)
- Door switch, rear left (54RL)
- Door switch, rear right (54RR)
- Bonnet switch, anti-theft alarm (276)
- Switch, boot lid/tailgate (56)
- Glass breakage sensor (451, 451F, 451R)
- Angle sensor (457)
- Antenna, remote control, central locking system (456)
- Antenna unit, immobilizer (463)
- Microswitch, boot lid/tailgate lock (622)
- Siren, anti-theft alarm (275)
