To remove

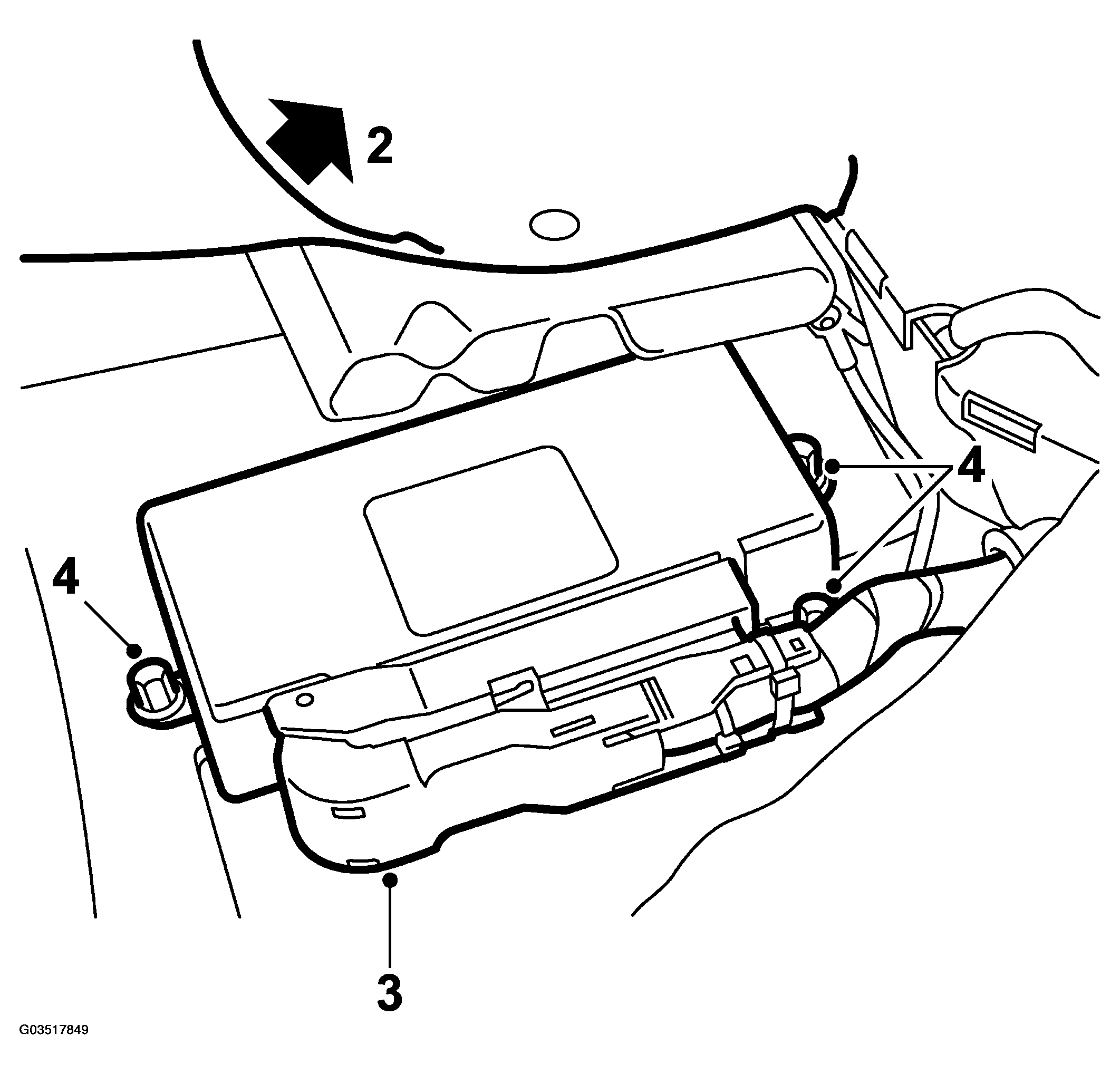

Fig 1: Illustration For Step 2-4
G03517849Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Detach and lift away the LH front seat
  2. Lift and fold aside the carpet. Remove the plastic moulding as needed.
  3. Unplug the connector to the module.
  4. Remove 3 plastic nuts and lift out the module.
