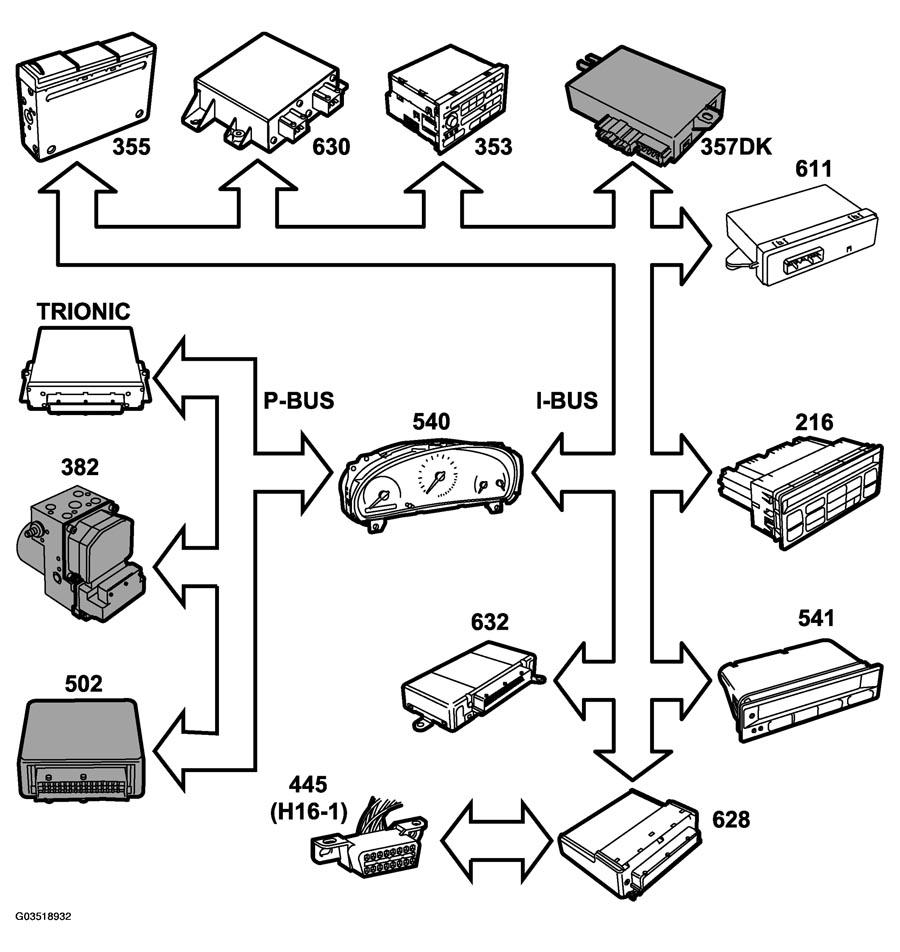

Control Module Outputs, Bus
- A/C (on/off), used by Trionic
- A/C Pressure (bar), used by Trionic
- Current consumption (A), used by Trionic
- Fast idling speed (on/off), used by Trionic
- Reverse gear (yes/no) used by PMM (611), Trionic, SPA (630)
- Marker lights (yes/no) used by SID (541)
- Electrically heated rear window (on/off), used by ACC (216)
- Rear fog light defective (yes/no), used by SID (541)
- Direction indicators LH (on/off), used by MIU (540) and SID (541)
- Direction indicators RH (on/off), used by MIU (540) and SID (541)
- Rear fog light (on/off) used by MIU (540)
- Chime (acoustic information) used by SID (541)
- Ignition +B (on/off) used by Audio (353), TWICE (632)
- Ignition +15 (on/off), used by TWICE (632)
- Ignition +54 (on/off), used by TWICE (632)
- Ignition +50 (on/off) used by ACC (216), TWICE (632)
- VIN (chassis number), used by Audio (353)
- Radiator fan (on/off)
- Battery voltage (6-16V)
- Diagnostics communication
For a further description of the control module's output information on the bus, CONTROL MODULE
For a further description of diagnostics, see BUS AND DIAGNOSTICS COMMUNICATION
