To fit

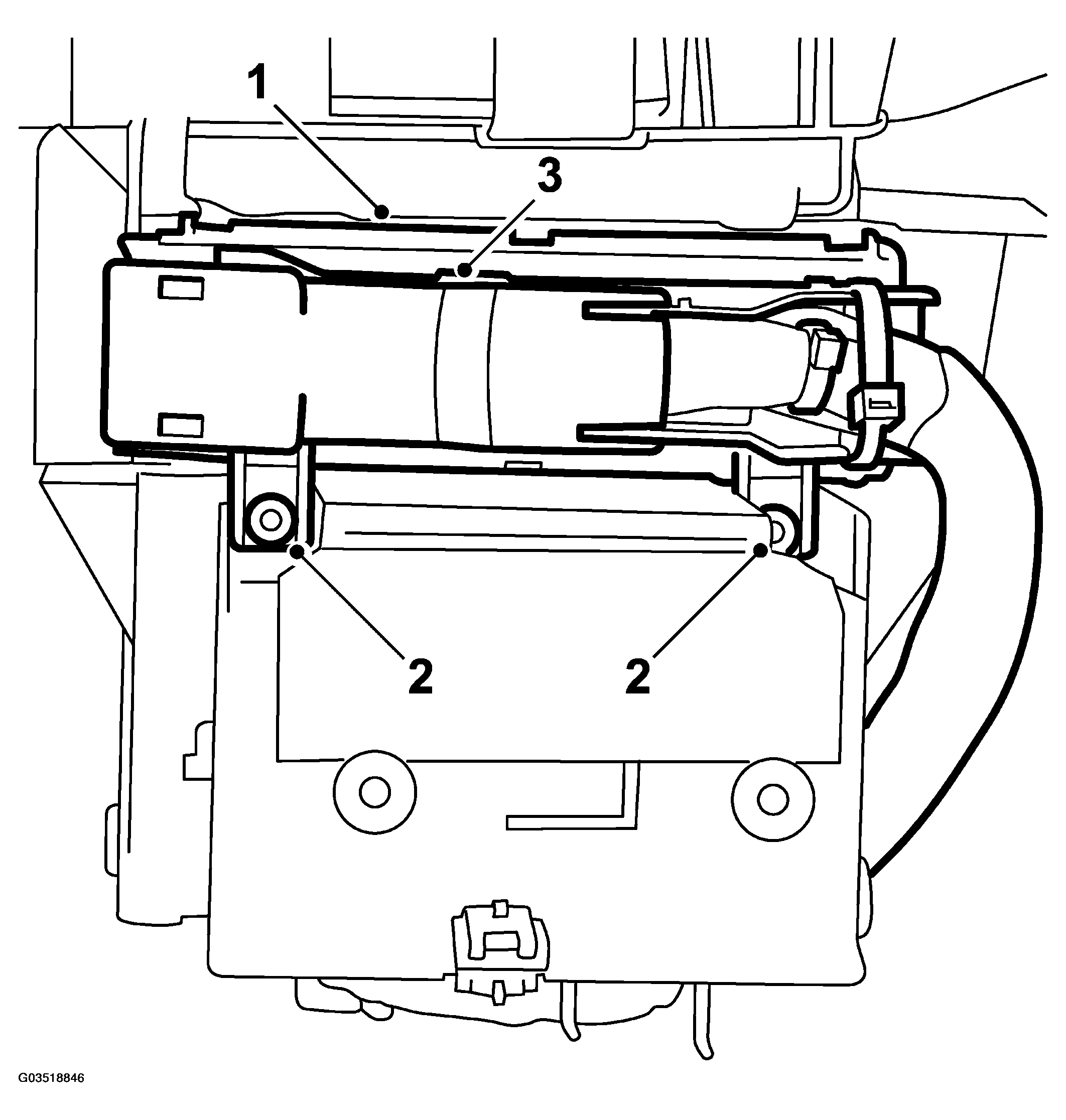

Fig 1: Illustration For Step 1-3
G03518846Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the control module in place.
  2. Screw tight with 2 screws.
  3. Plug in the connector to the control module.

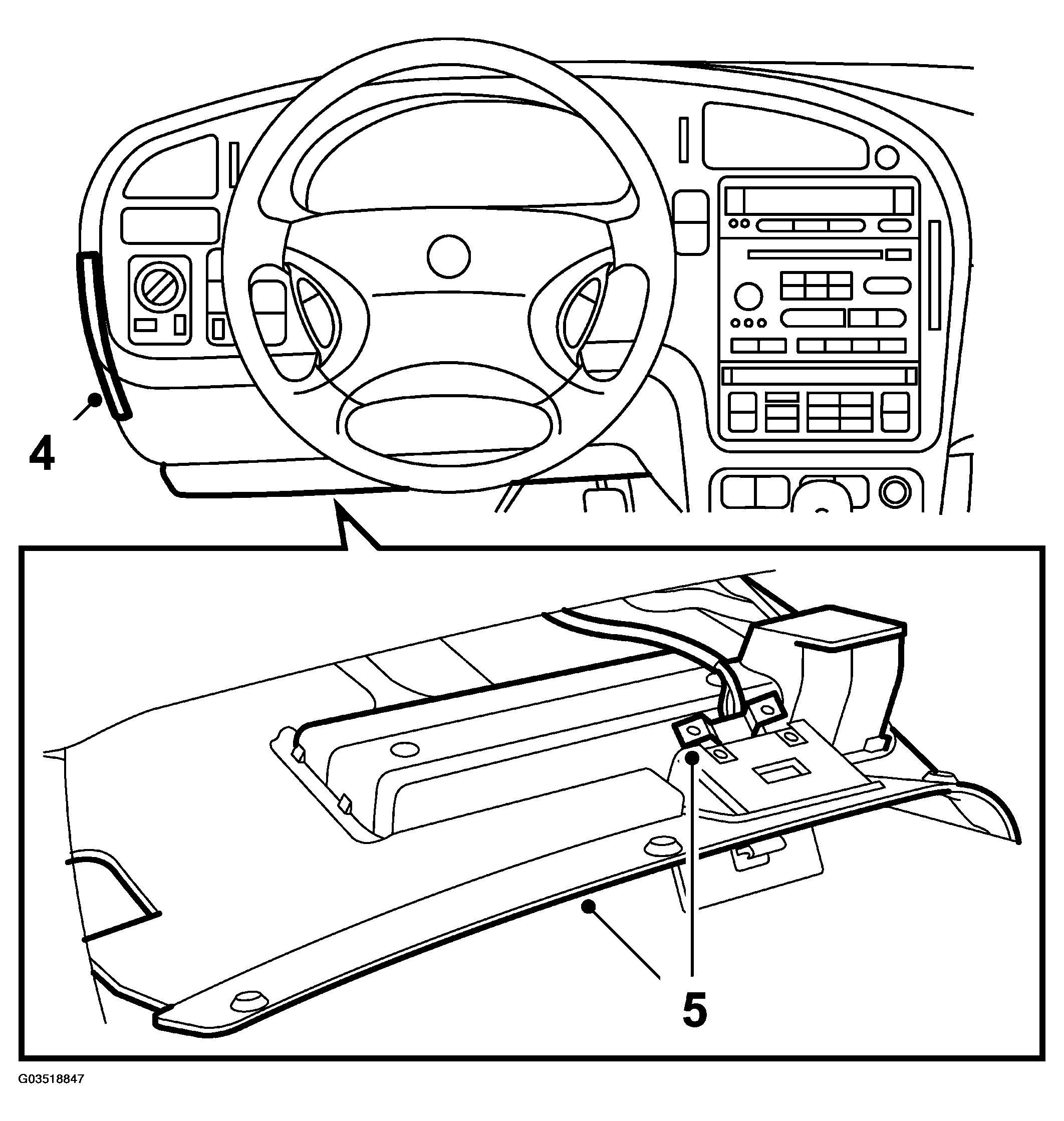

    Fig 2: Illustration For Step 4-5
    G03518847Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Refit the fuse cover.
  5. Refit the lower panel.
  6. After the DICE control module is replaced, it must be programmed into the car.
