DTC C1376: Wheel Sensor Front Right - Signal Incorrect: Notes

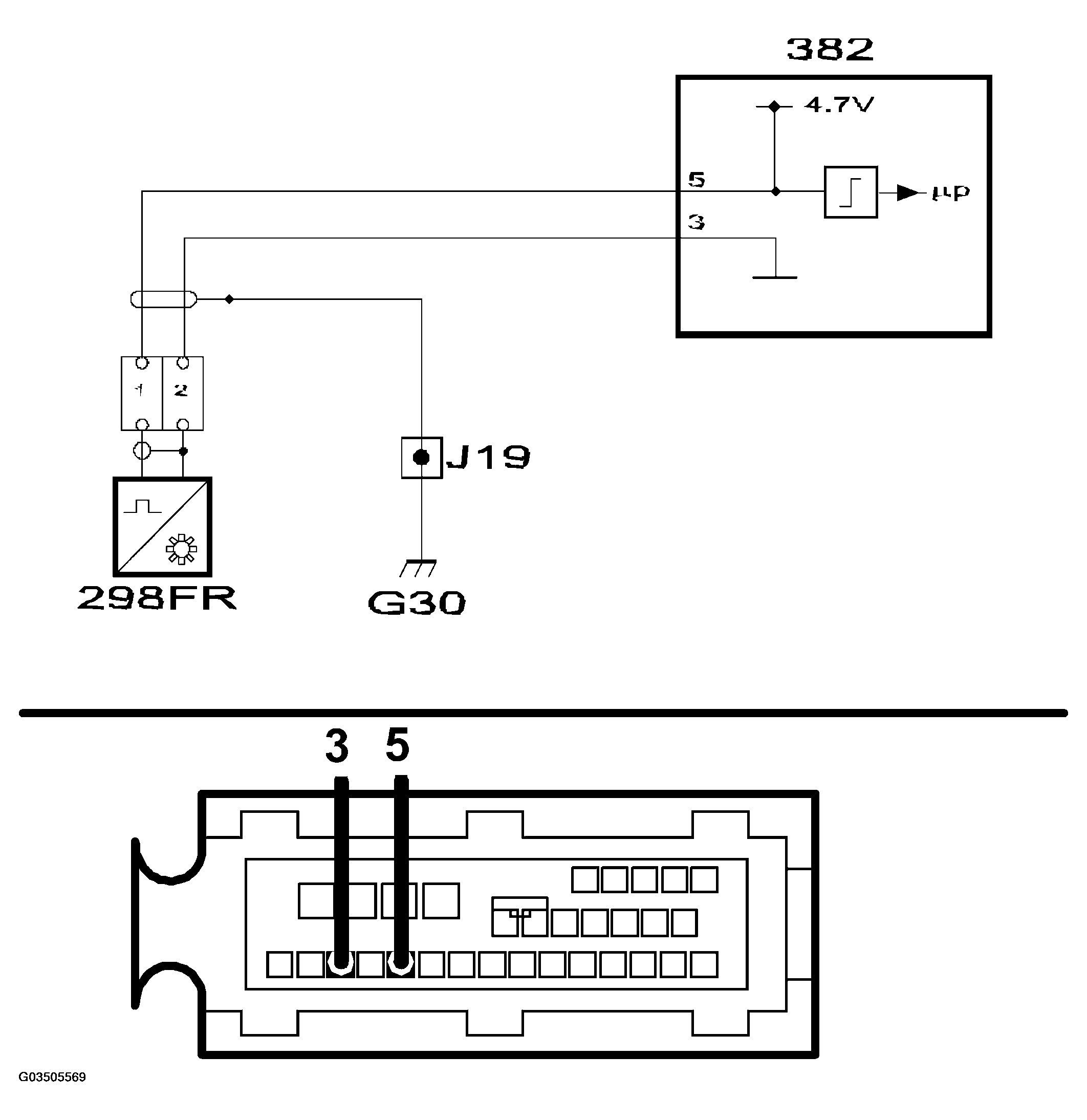

Fig 1: Wheel Sensor Front Right - Circuit Diagram (Signal Incorrect)

G03505569

Courtesy of SAAB-SCANIA OF AMERICA, INC.
