DTC P1302: Cylinder 2 Misfire Detected Catalyst Damaging: Notes

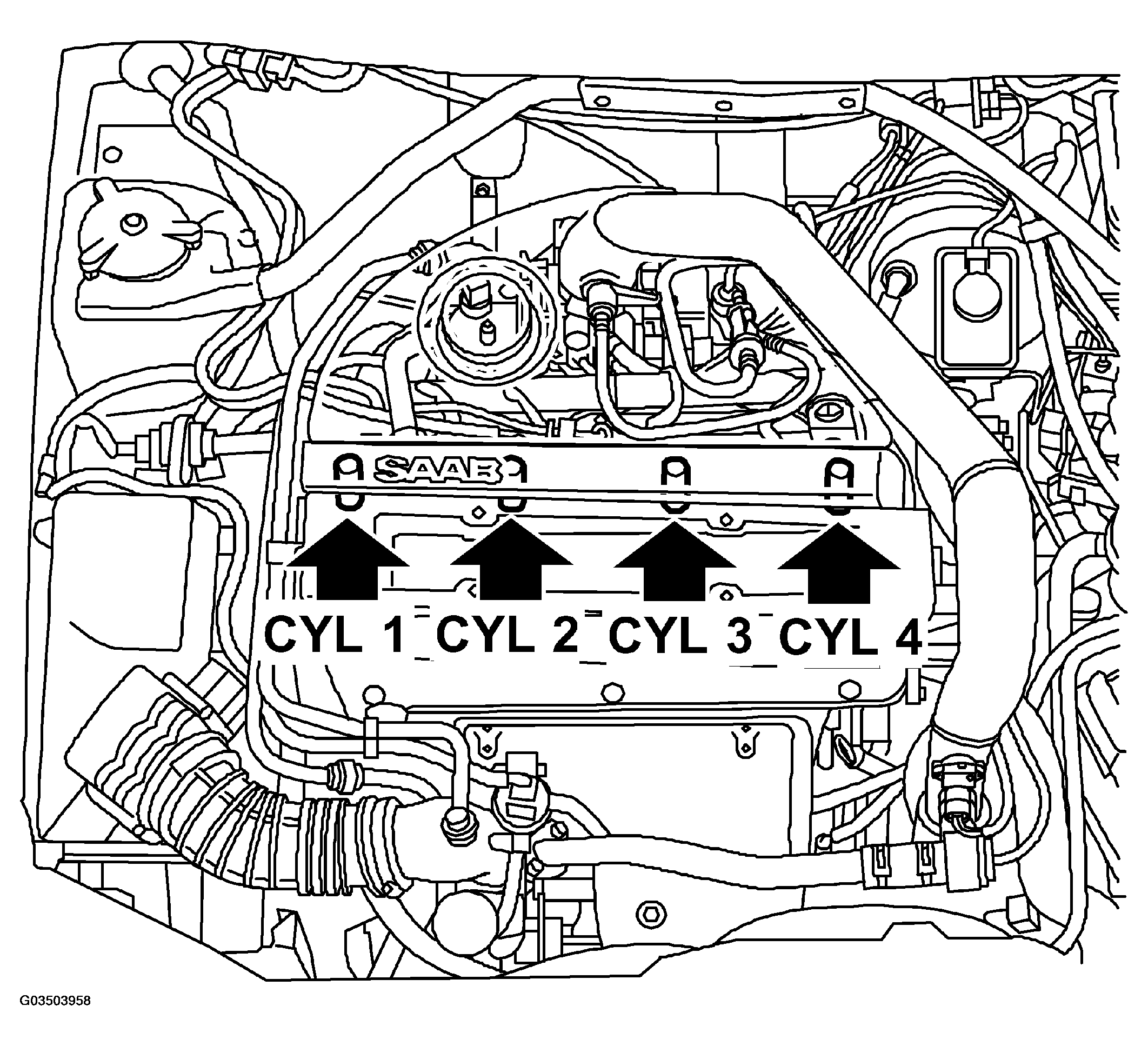

Fig 1: Identifying Cylinders
G03503958Courtesy of SAAB-SCANIA OF AMERICA, INC.

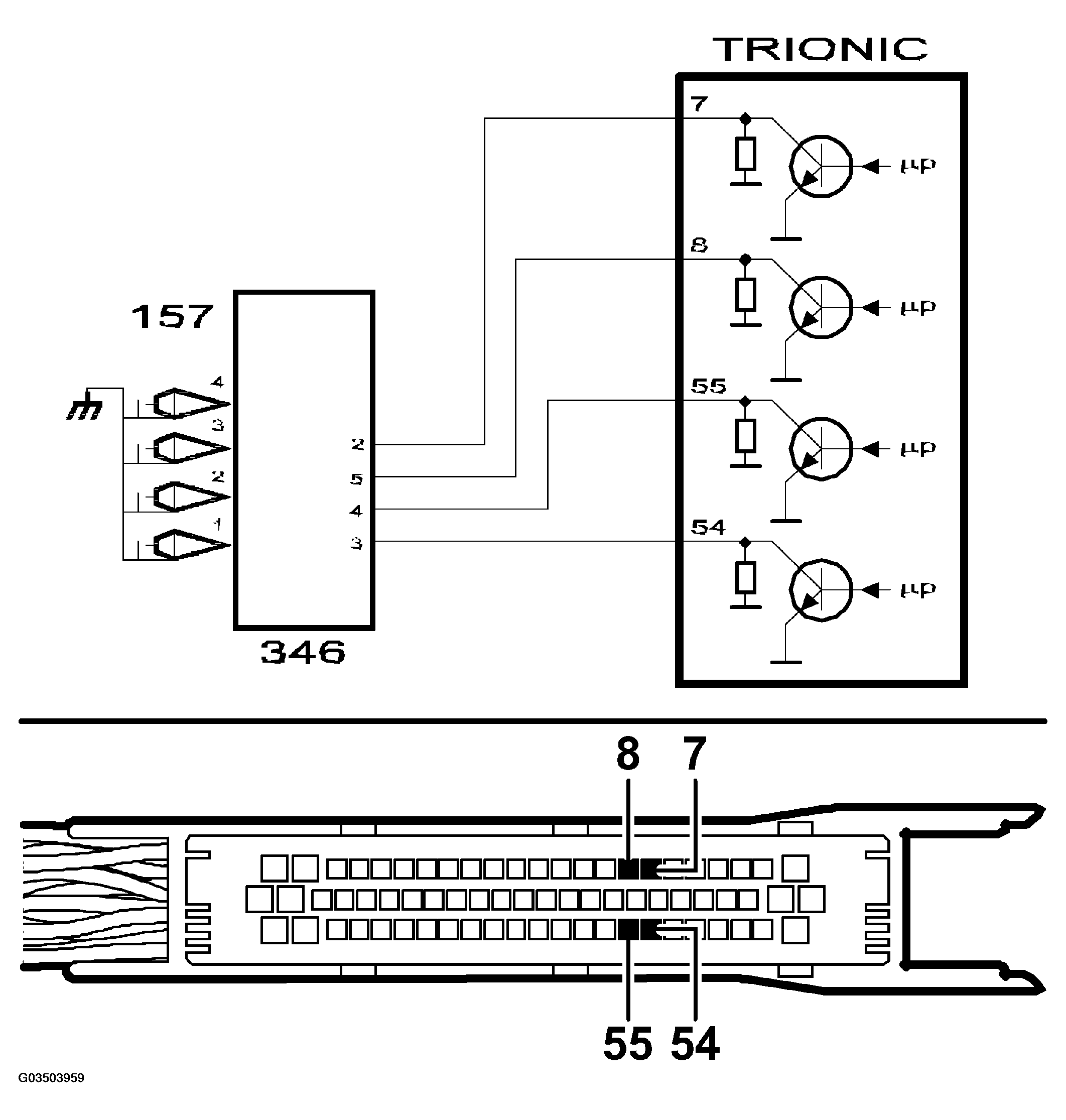

Fig 2: Identifying Ignition System Circuit Diagram
G03503959Courtesy of SAAB-SCANIA OF AMERICA, INC.
