DTC P0301: Cylinder 1 Misfire Detected: Notes

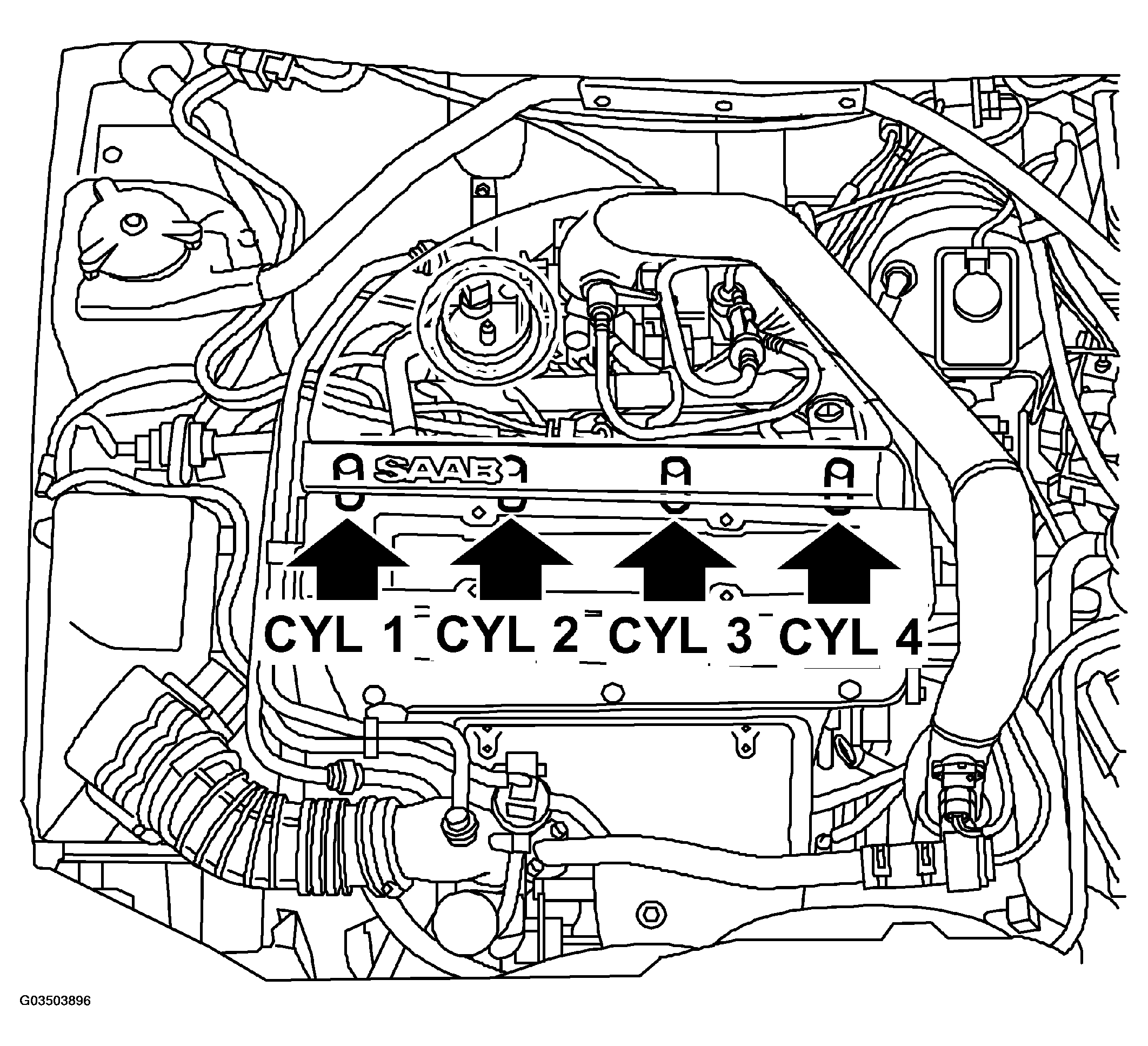

Fig 1: Identifying Cylinders
G03503896Courtesy of SAAB-SCANIA OF AMERICA, INC.

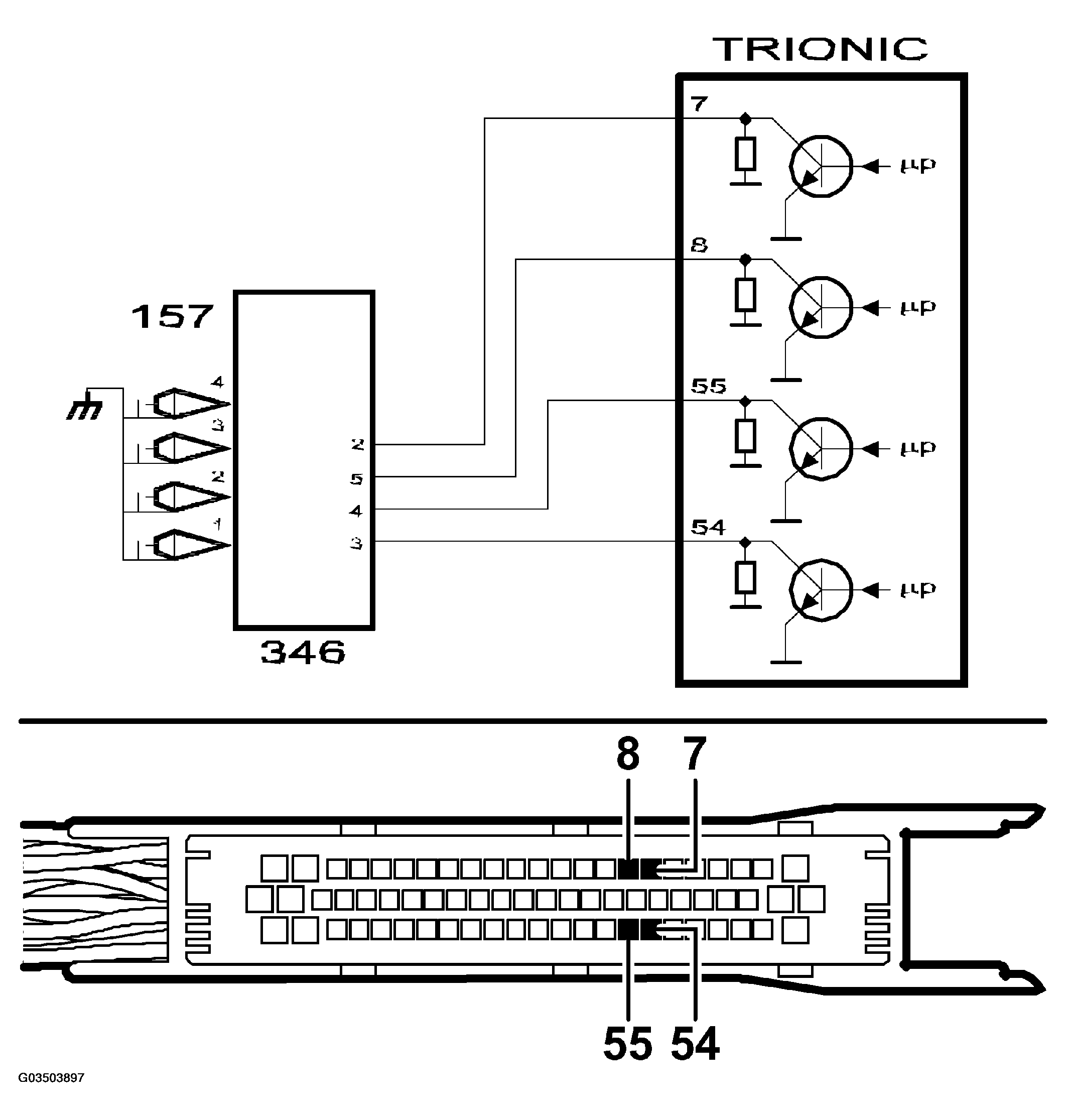

Fig 2: Circuit Diagram - Cylinder 1 Misfire Detected
G03503897Courtesy of SAAB-SCANIA OF AMERICA, INC.
