Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Component Location >> Relay, fuel pump (102)

Relay, fuel pump (102)

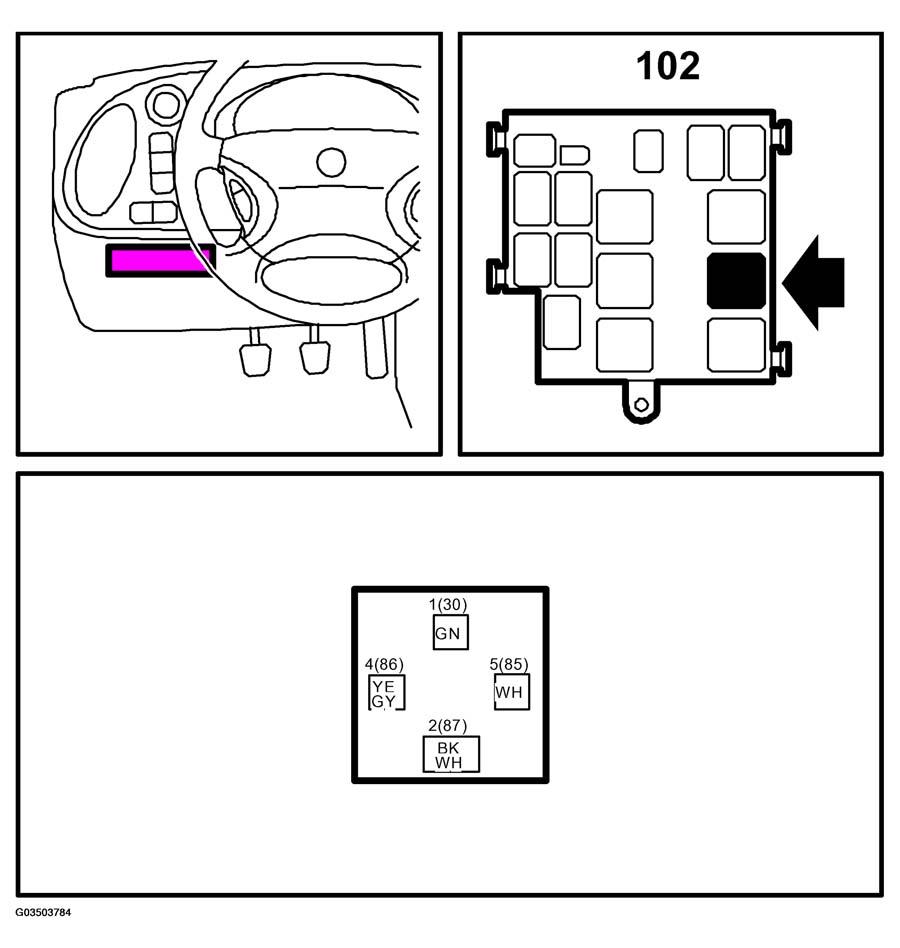

Fig 1: Identifying Fuel Pump Relay

G03503784

Courtesy of SAAB-SCANIA OF AMERICA, INC.
