Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Adjustment - Replacement >> Pressure/temperature sensor, charge air >> To fit

To fit

  1. Apply petroleum jelly (part no. 30 04 520) or the equivalent sparingly to the sensor O -rings. Fit the sensor.

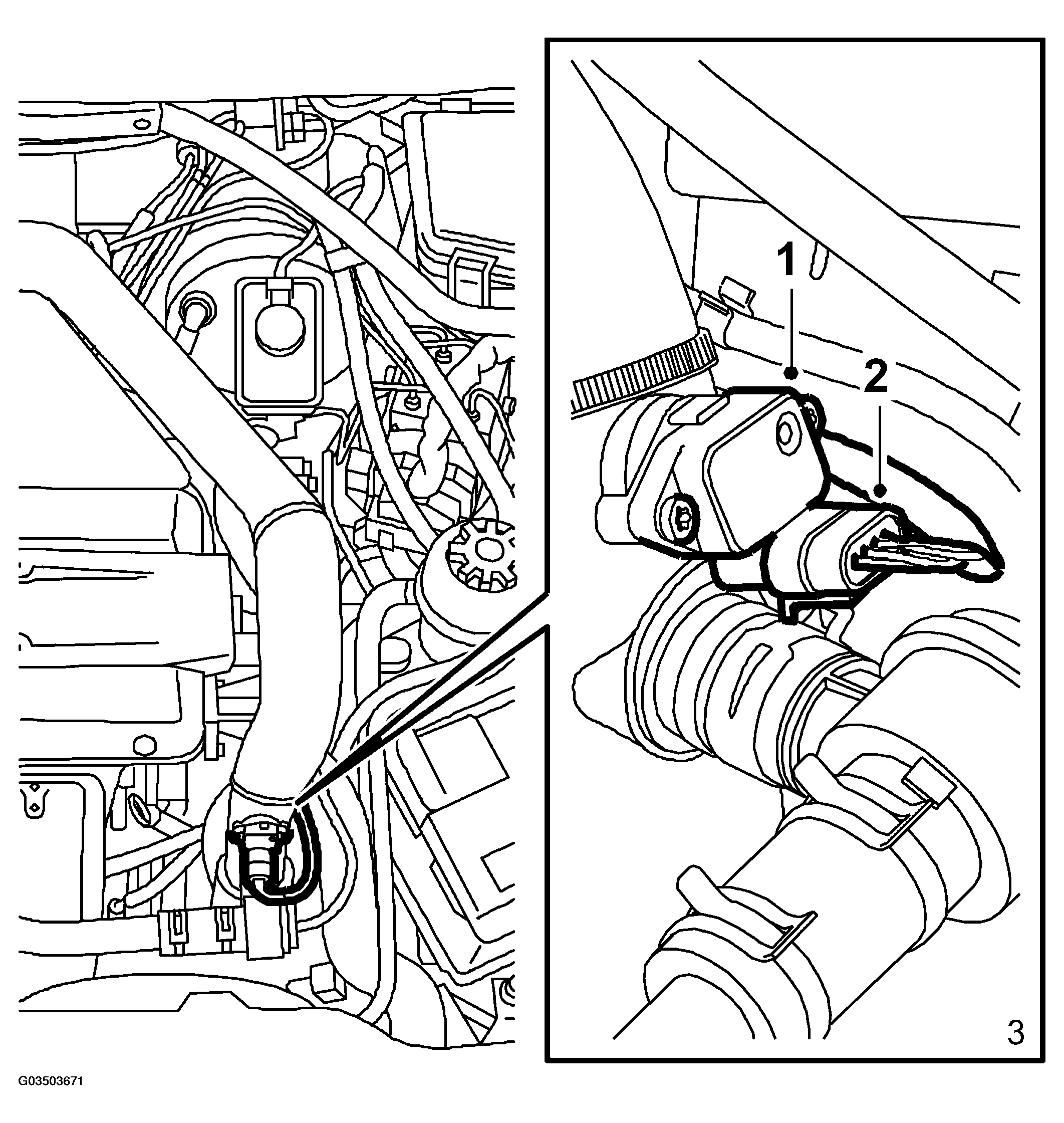

    Fig 1: Illustration For Step 1-2
    G03503671Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
