To fit

  1. Attach the valve to the metal bracket and then to the expanding pin.

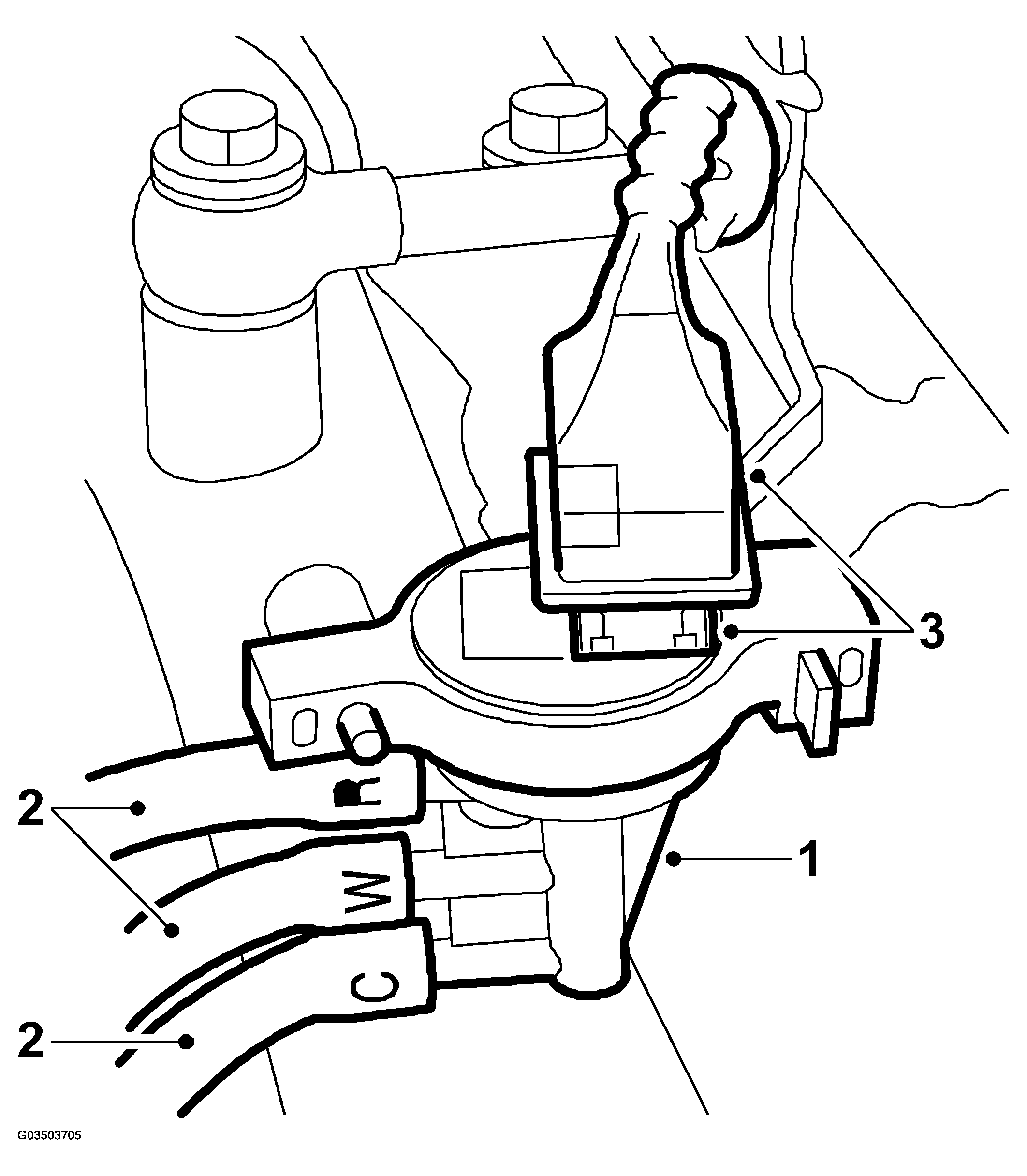

    Fig 1: Illustration For Step 1-2-3
    G03503705Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Connect the hoses to the control valve. Make sure the markings on the hoses correspond with the markings on the control valve.
  3. Spray the connector with Kontakt 61 (part no. 30 04 520) and plug it in.
