Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> TC/Abs System Version 5.3 - Repair >> Wiring Diagram >> Anti-Lock Brakes With Traction Control TC/ABS 5.3 >> Notes

Anti-Lock Brakes With Traction Control TC/ABS 5.3: Notes

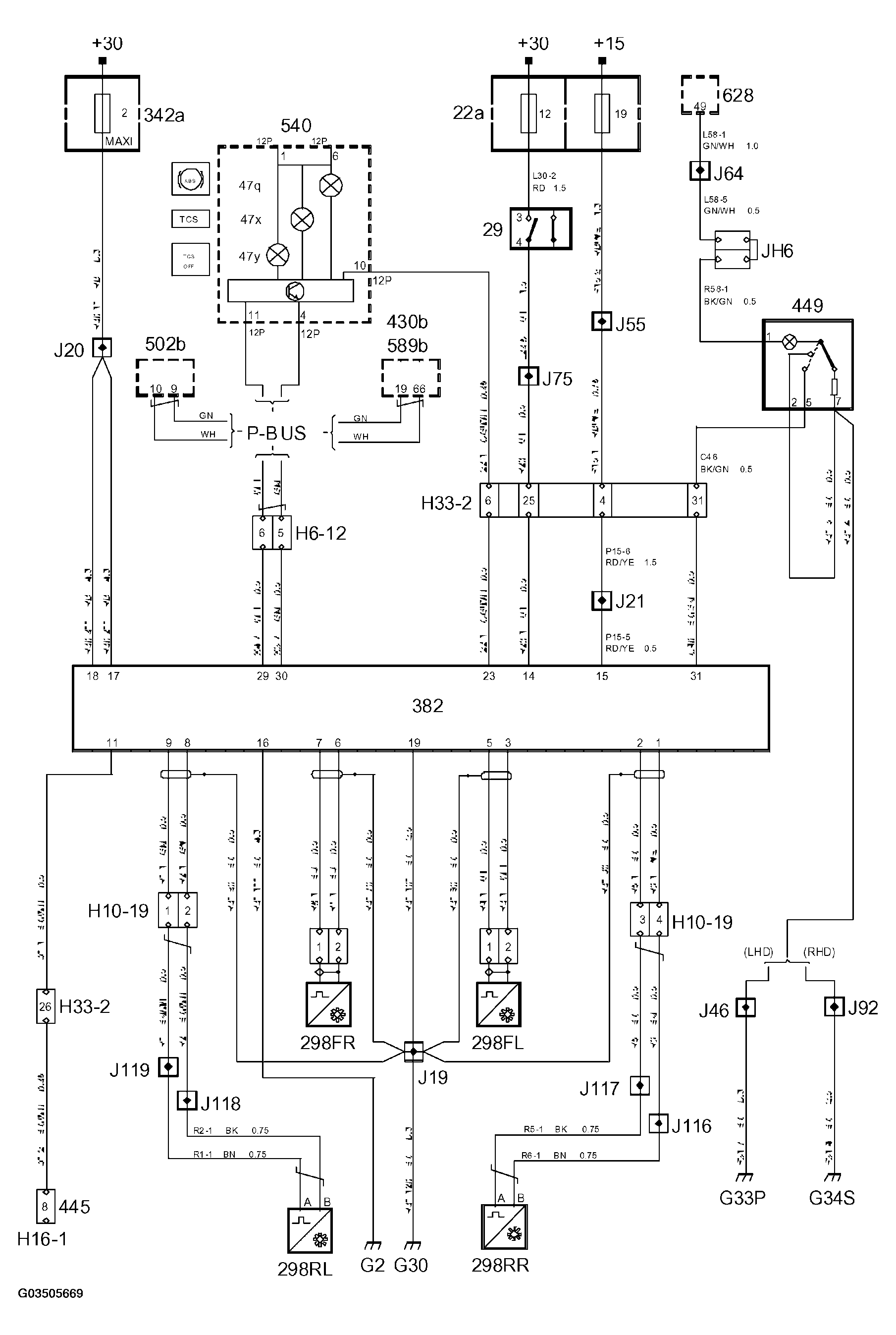

Fig 1: Anti-Lock Brakes With Traction Control TC/ABS 5.3 - Wiring Diagram

G03505669

Courtesy of SAAB-SCANIA OF AMERICA, INC.
