Wheel-speed signal output: Diagnostics

If the wheel-speed signal output is faulty, a DTC will be set in the receiving system.

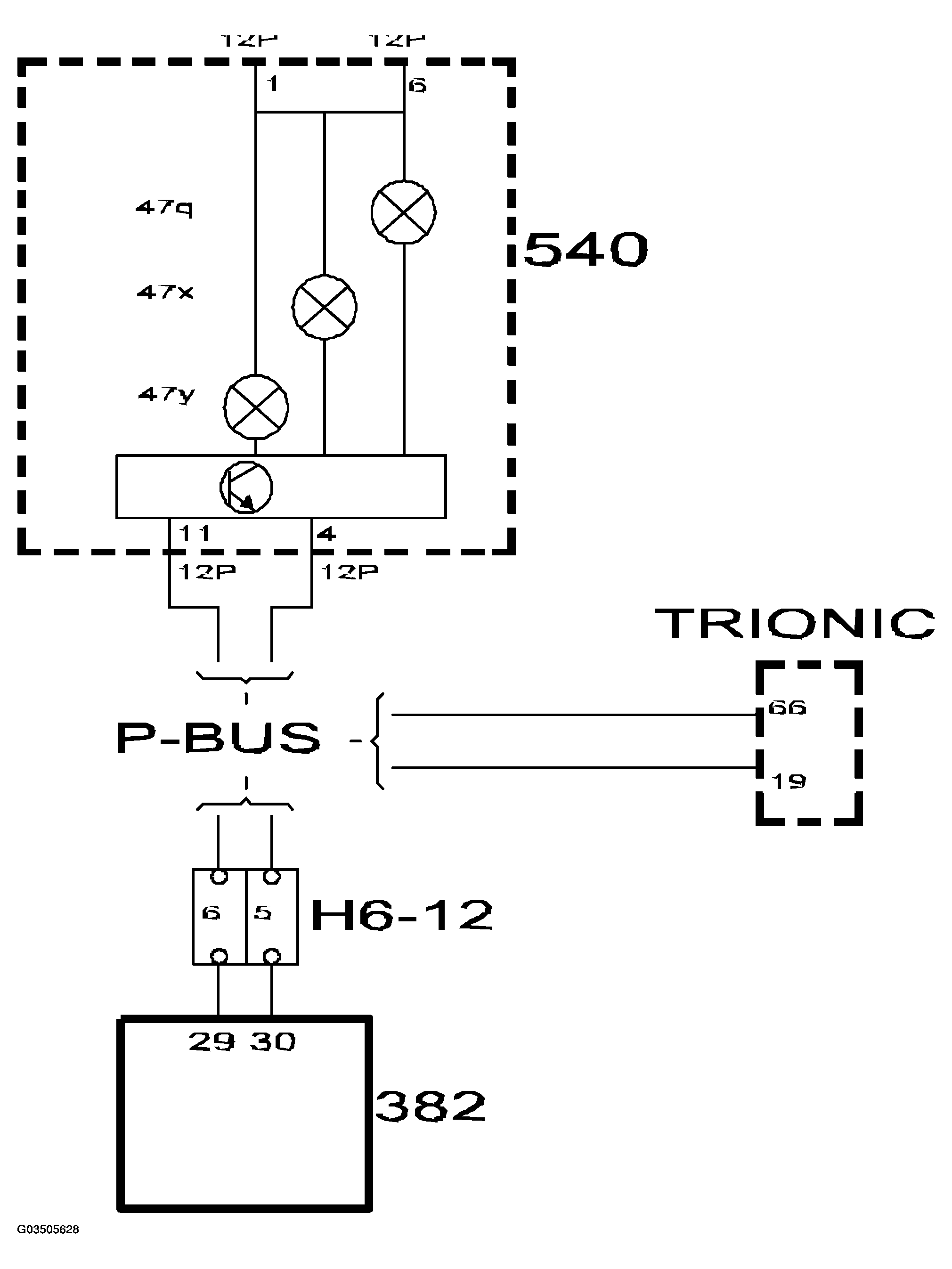

Fig 1: Wheel-Speed Signal Output - Circuit Diagram
G03505628Courtesy of SAAB-SCANIA OF AMERICA, INC.
