Rear-wheel sensors

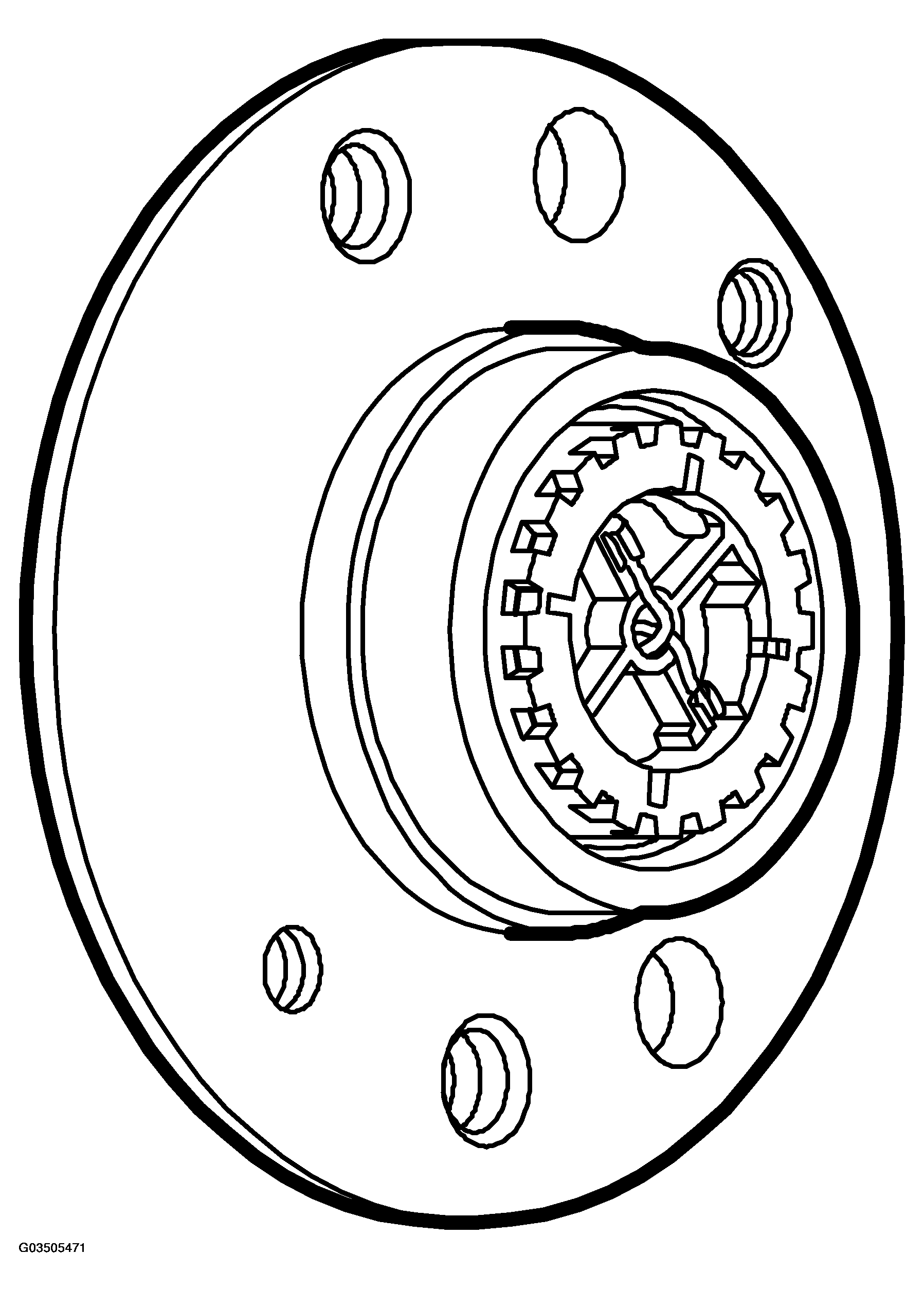

Fig 1: Identifying Rear-Wheel Sensors
G03505471Courtesy of SAAB-SCANIA OF AMERICA, INC.
REAR-WHEEL SENSORS - TECHNICAL DATA

Operating voltage, min. mVAC 120 at 2.75 km/h
Operating voltage, max. VAC 100 at 280 km/h
Resistance Ohm 1130 +/-115 at +20°C
Number of teeth qty 29
