Trionic T7 control module 4-cyl LEV/OBDII (589b)

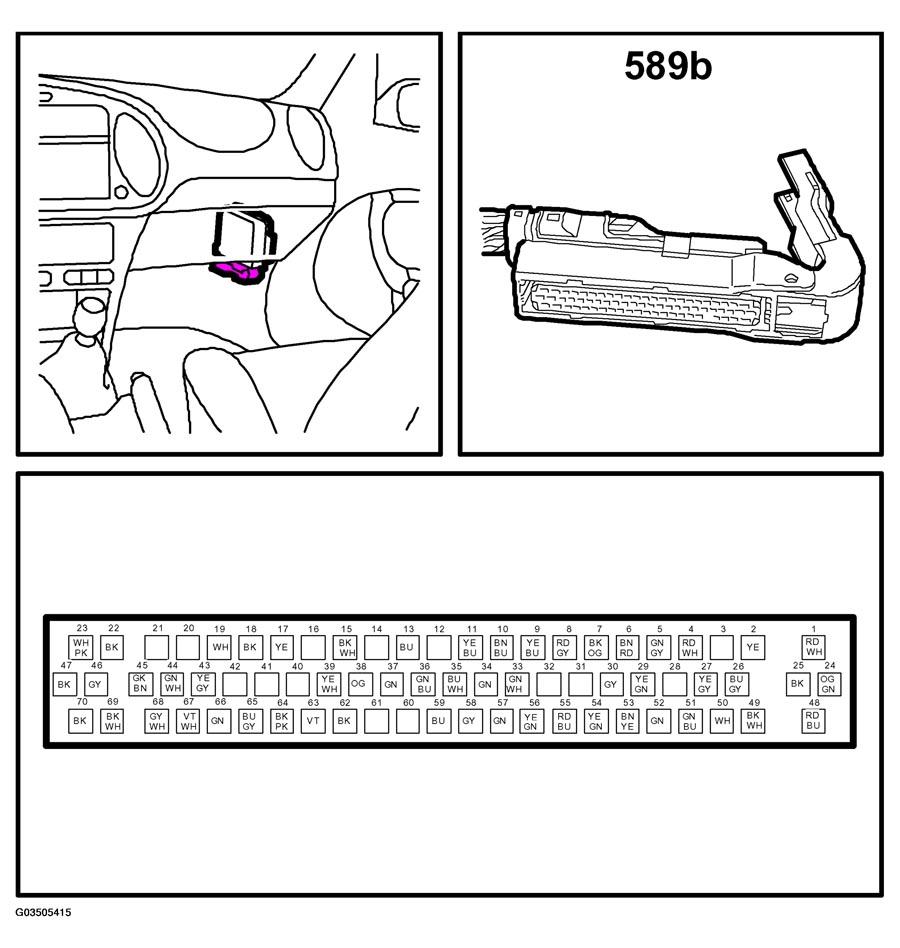

Fig 1: Identifying Trionic T7 Control Module Pinouts And Location (4-Cyl LEV/OBDII)

G03505415

Courtesy of SAAB-SCANIA OF AMERICA, INC.
