To fit

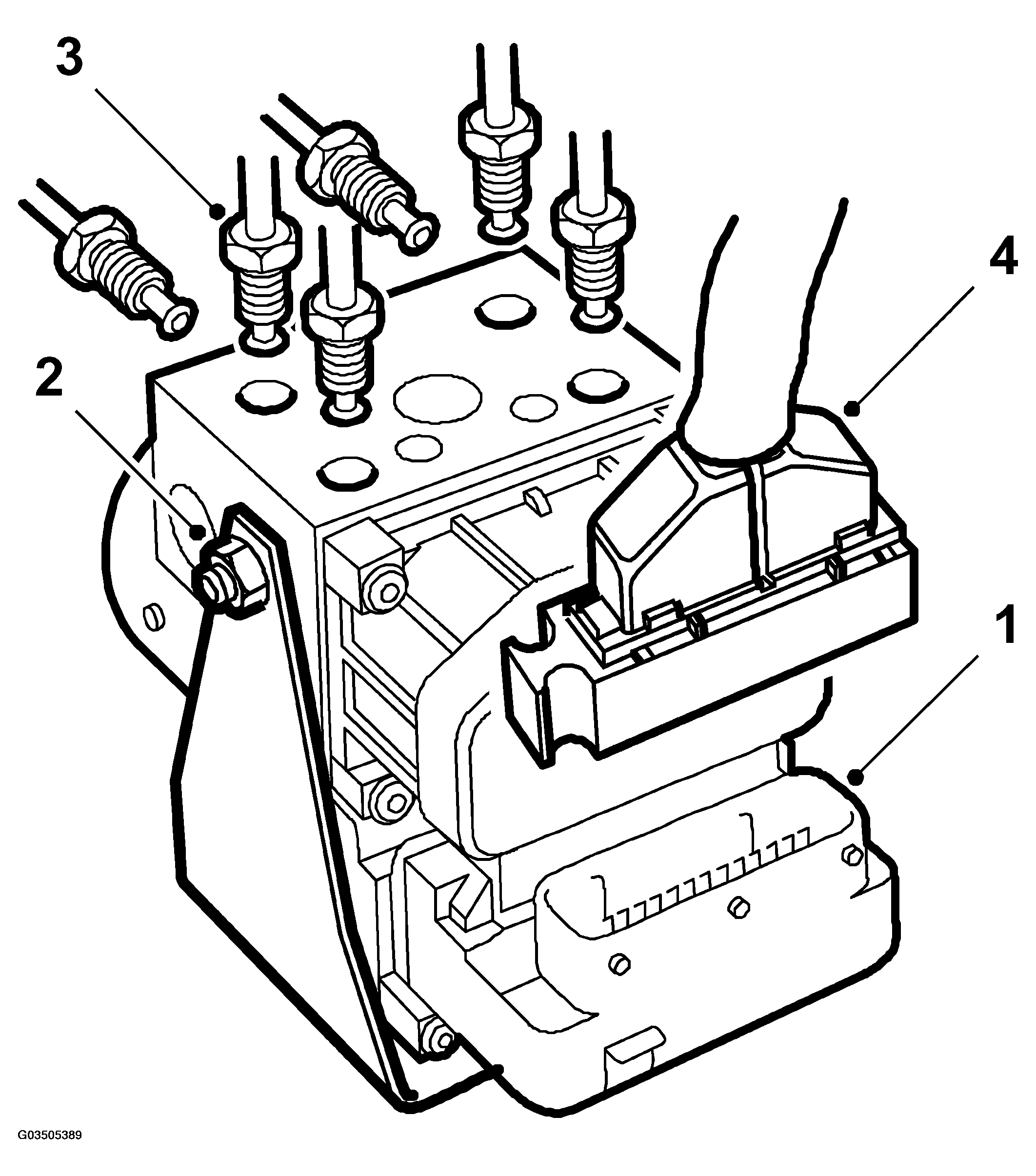

Fig 1: Illustration For Step 1-4
G03505389Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift the hydraulic unit into position, taking care not to damage the pipes.
  2. Fit the two nuts.

    Tightening torque 20 N.m (15 lbf ft)

  3. Remove the plugs and reconnect the pipes. Fit the brake-pipe nipples (rear pipes first) finger tight and then tighten with a spanner.
  4. Plug in the connector.
  5. Fit the main fuse box in place.

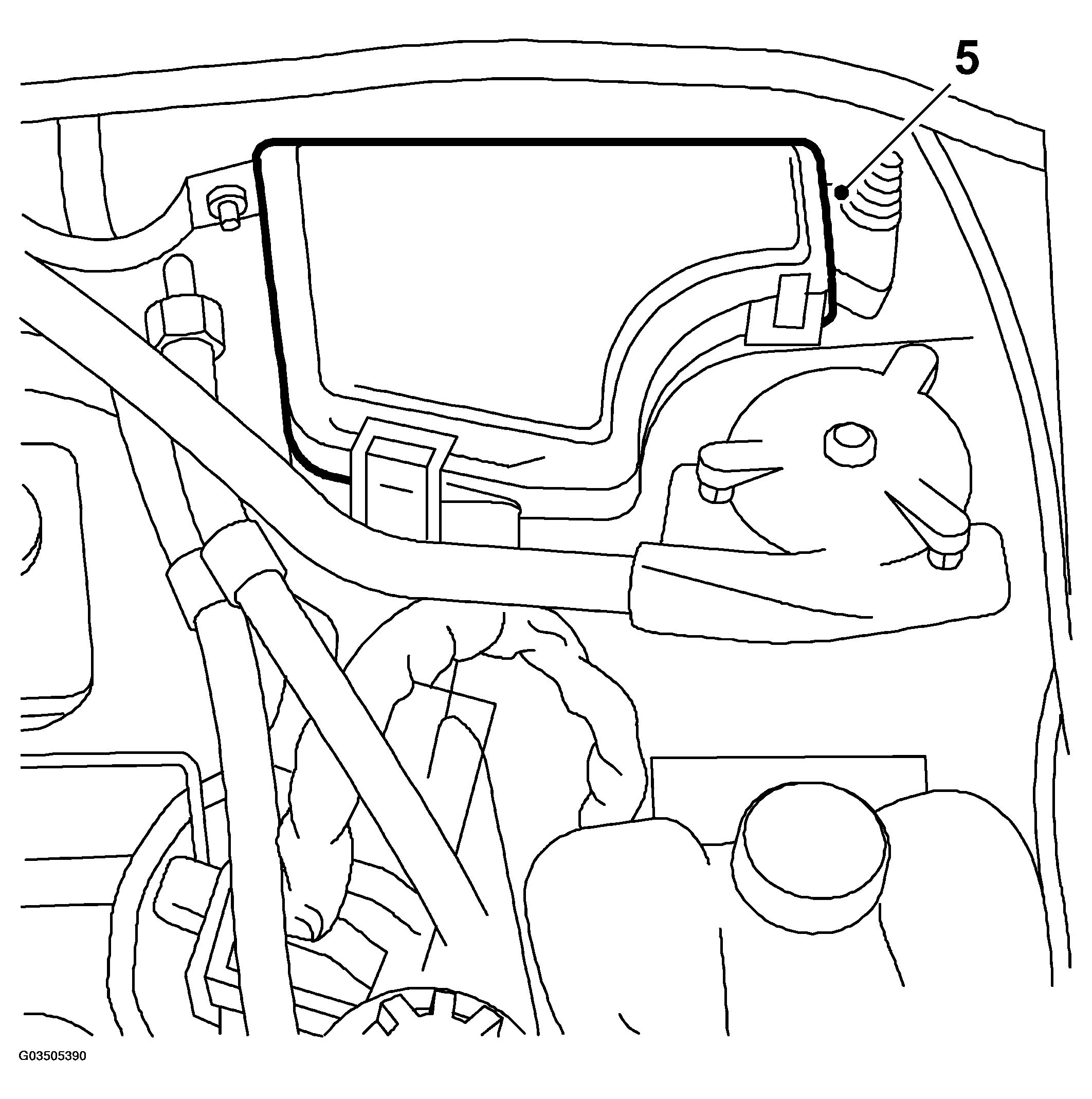

    Fig 2: Illustration For Step 5
    G03505390Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Bleed the brake system. See BLEEDING .
