WINTER or SPORT mode cannot be selected: Notes

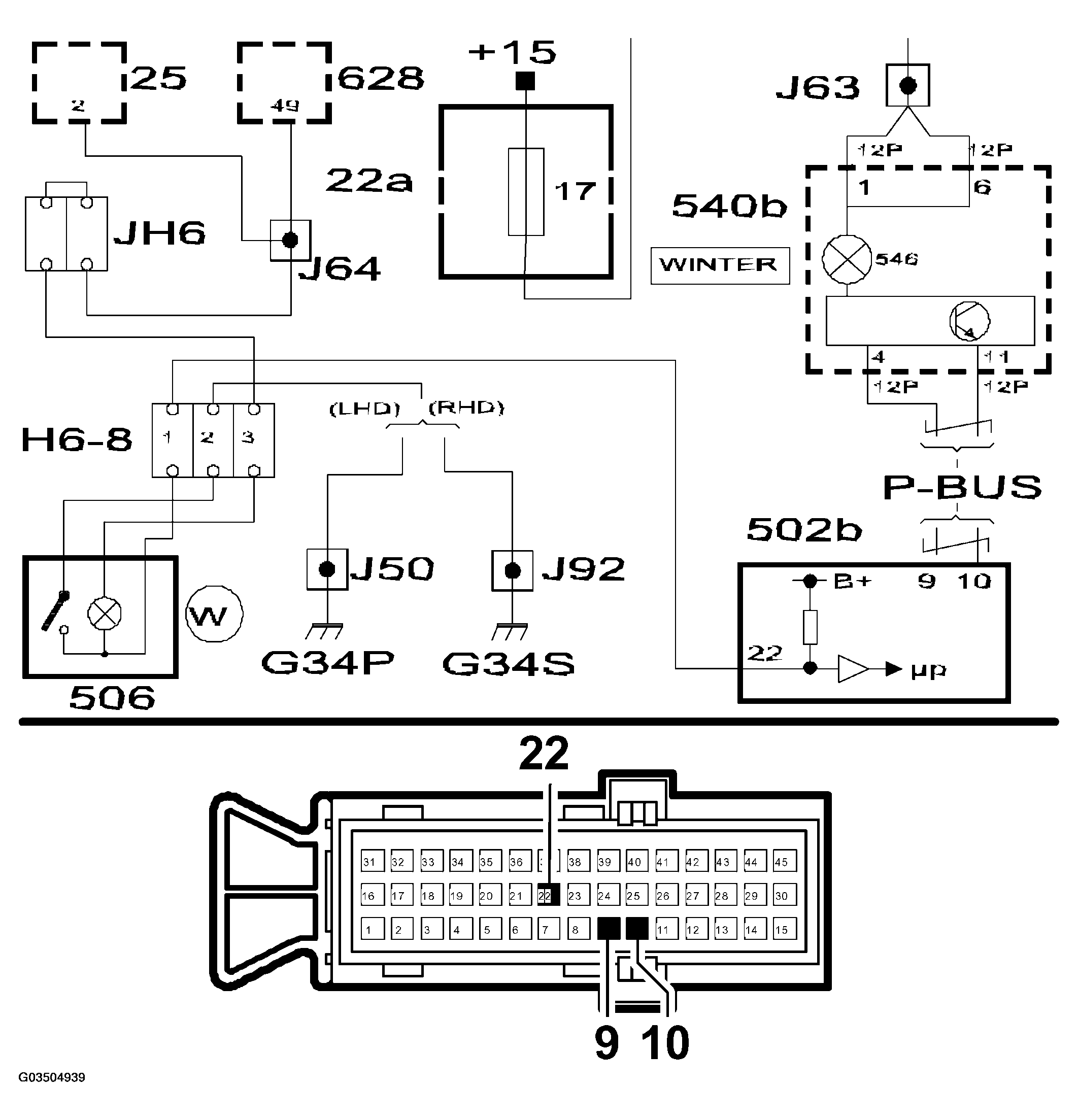

Fig 1: Identifying Pinouts And Crimp

G03504939

Courtesy of SAAB-SCANIA OF AMERICA, INC.
