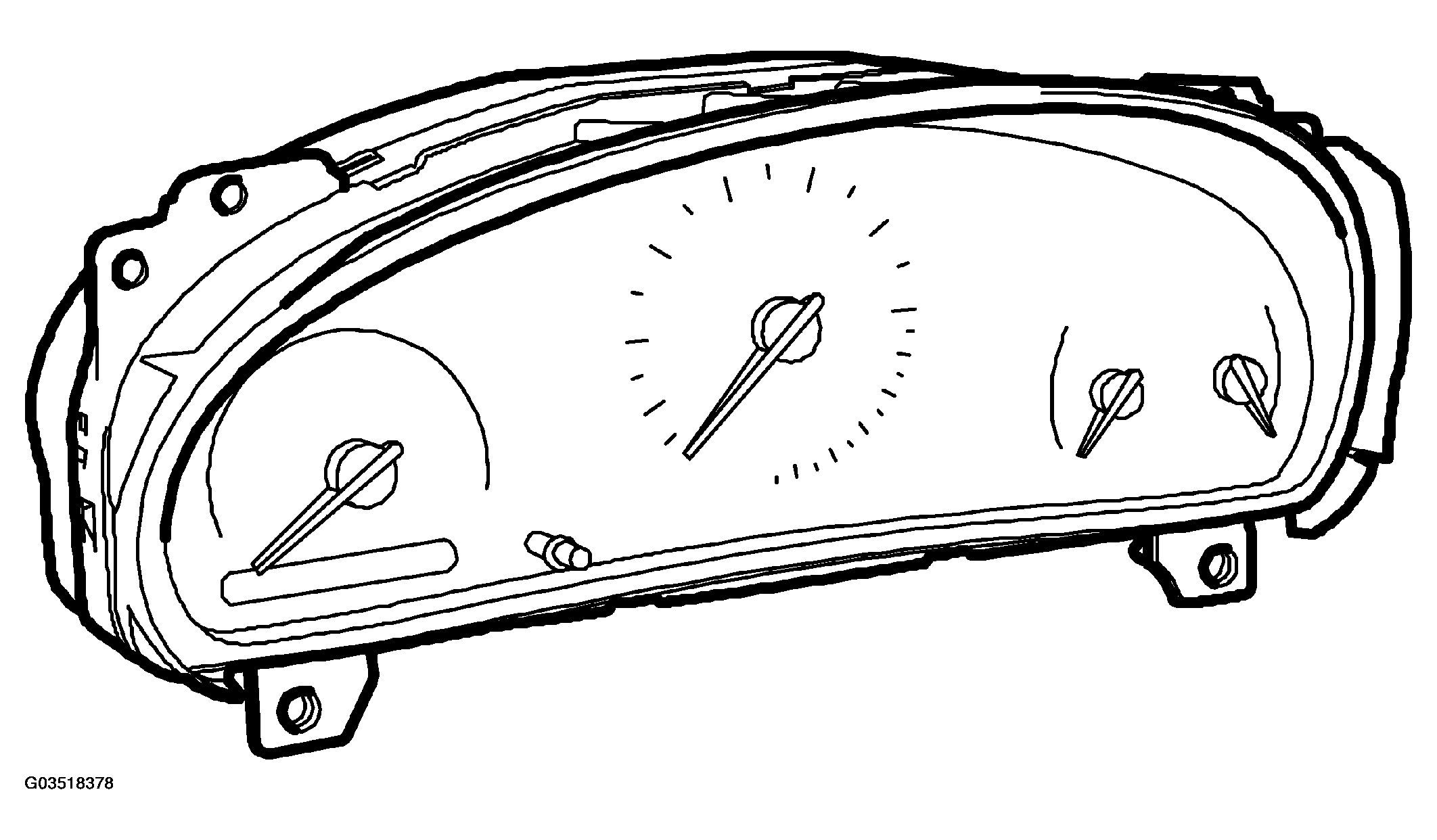

Control Module, Main Instrument Unit
WARNING: This page is about a different car, the 2001 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. PIN REFERENCE
| Number of pins |
K12 |
qty |
12 |
| |
K20 |
qty |
20 |
| Power supply (+30 circuit) |
|
Pin No. |
7 (K12) |
| Power supply (+15 circuit) |
|
Pin No. |
1 and 6 (K12) |
| Signal ground |
|
Pin No. |
2 and 3 (K12) |
| I-bus |
+ |
Pin No. |
5 (K12) |
| |
- |
Pin No. |
12 (K12) |
| P-bus |
+ |
Pin No. |
4 (K12) |
| |
- |
Pin No. |
11 (K12) |
