To remove

WARNING: This page is about a different car, the 2001 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

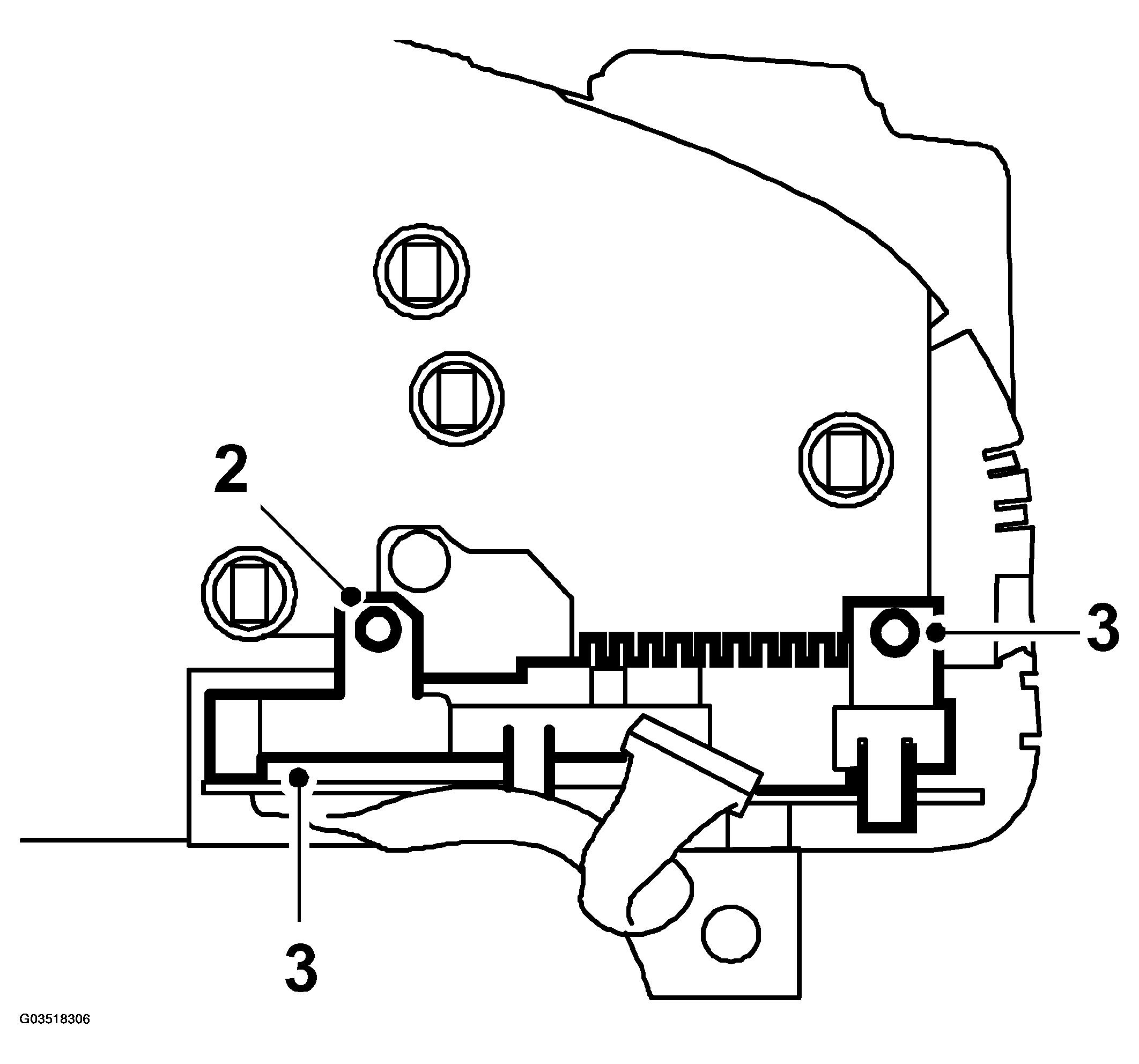

Fig 1: Illustration For Step 2-3
G03518306Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the Electronic Unit, see ELECTRONIC UNIT  .
  2. Undo the tripmeter, two screws.
  3. Lift out the tripmeter.
