To remove

WARNING: This page is about a different car, the 2001 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

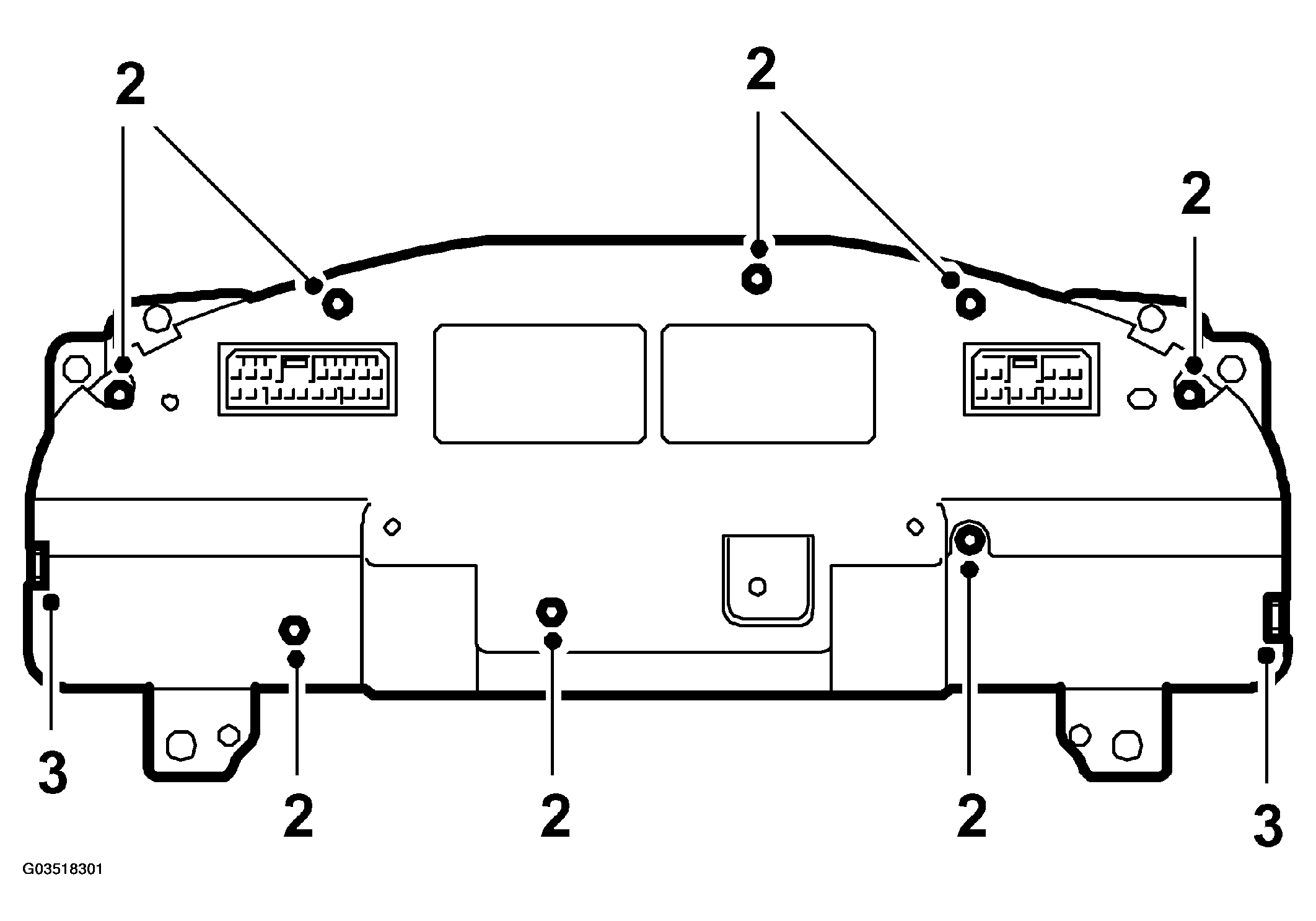

Fig 1: Illustration For Step 2-3
G03518301Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the Main Instrument Unit, see MAIN INSTRUMENT UNIT  .
  2. Undo the eight screws securing the covers over the back section. Note the locations of the four long screws and the four short screws.
  3. Release the retainer (two clips) for the back section cover and remove the cover.
  4. Unplug the connector and the three contact foils.

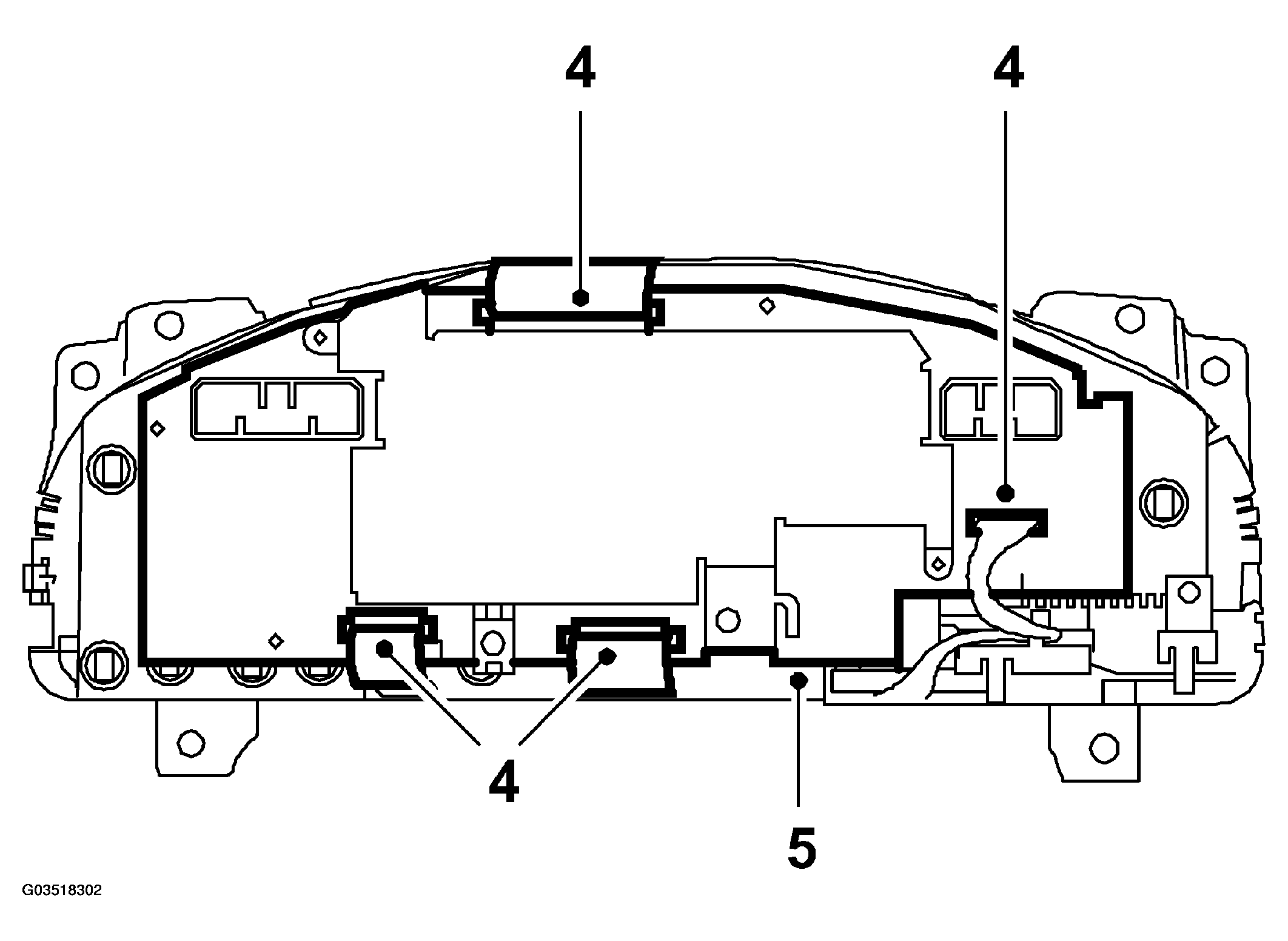

    Fig 2: Illustration For Step 4-5
    G03518302Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the electronic unit.
