Light-and-key monitor: Notes

WARNING: This page is about a different car, the 2001 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

DICE monitors the main lighting and the ignition key. If the main lighting or the key is forgotten, SID delivers a warning signal. This feature is optional (OFF/ON).

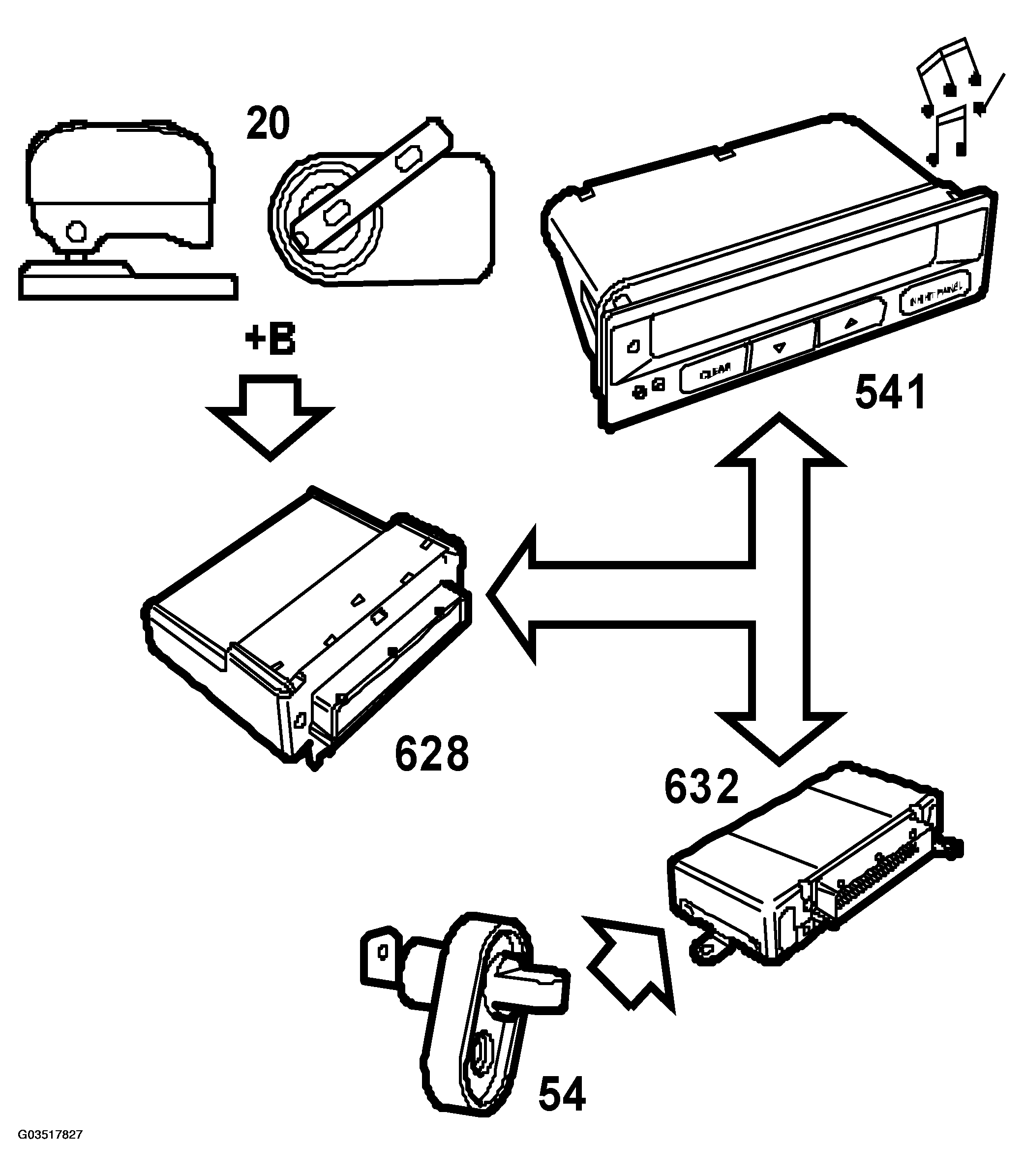

Fig 1: Identifying Communication Flow - Light-And-Key Monitor
G03517827Courtesy of SAAB-SCANIA OF AMERICA, INC.
